747035 DODGE - SNX 317

Brand - DODGE
Item Number - 747035 DODGE - SNX 317
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 317
SK FS Seal Item Number - 496409 DODGE - SK 317 FS 95
End Cover Item Number - 708970 DODGE - DK 115
Sight Glass Item Number - 740453 DODGE - SG 317
Spherical Roller Bearing Item Number - 423131 DODGE - 22317E1.C3
Fixing Ring Item Number - 747131 DODGE - SR 180X5
Fixing Ring Quantity - 2
Locknut Item Number - 046291 DODGE - KM 17
Lockwasher Item Number - 046310 DODGE - MB 17
Weight (kg) - 27.8

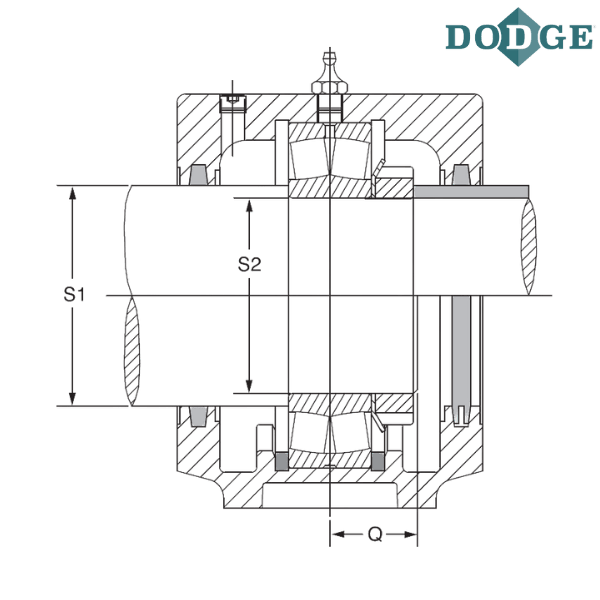

Shaft Size (S-1) mm - 95
Shaft Size (S-2) mm - 85

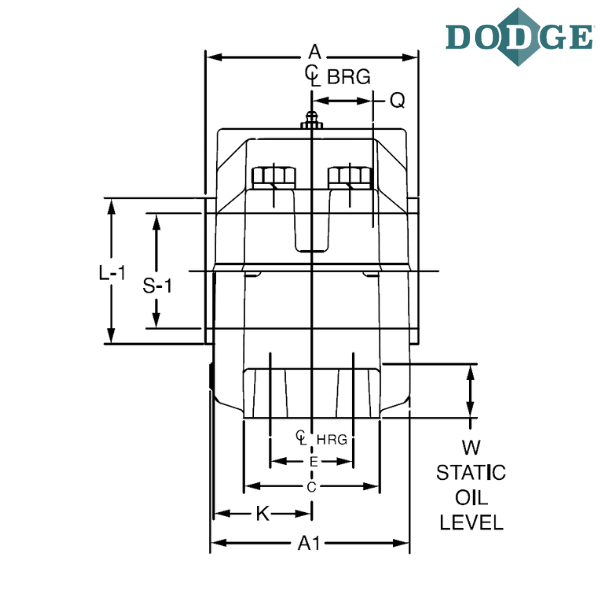

A1 (mm) - 164.1

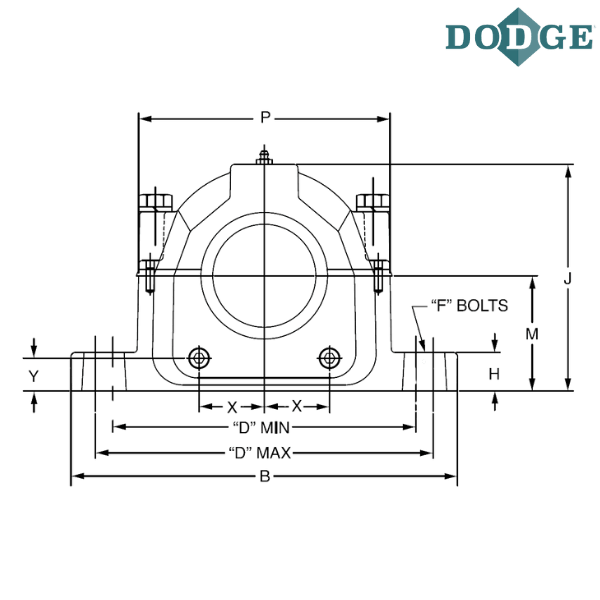

Overall Length (B) mm - 390
C (mm) - 110.3
Bolt to Bolt Minimum Distance (D min) mm - 295.3
Bolt to Bolt Maximum Distance (D max) mm - 333.4
F-Bolt Diameter - M24
H (mm) - 39.7
Overall Height (J) mm - 219.9
K (mm) - 80.2
Base to Center Height (M) mm - 111.9
P (mm) - 248.4
Q (mm) - 30
Static Oil Level (W) mm - 42.1
X (mm) - 66.6
Y (mm) - 30
A (With FS Seal) mm - 160.3
A (With DK End Cover) mm - 160.3
L1 (mm) - 113.3

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
