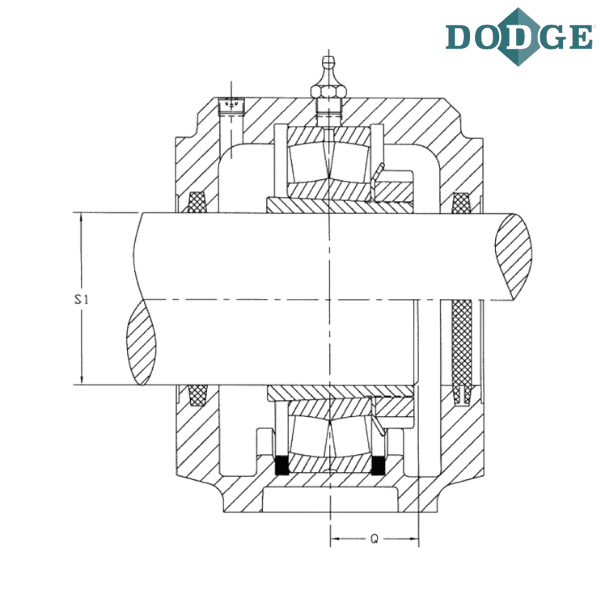

747035 DODGE - SNX 520

Brand - DODGE
Item Number - 747035 DODGE - SNX 520
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 520
SK LD Seal Item Number - 496456 DODGE - SK 520 LD 90
SK FS Seal Item Number - 496474 DODGE - SK 520 FS 90
SK VR Seal Item Number - 496492 DODGE - SK 520 VR 90
Labyrinth Seal Item Number - 747338 DODGE - TS 520
Triple-Tect Seal Item Number - 747394 DODGE - TT 520
End Cover Item Number - 708970 DODGE - DK 115
Spherical Roller Bearing Item Number - 422009 DODGE - 22220EK1.C3
Fixing Ring Item Number - 747132 DODGE - SR 180x12
Fixing Ring Quantity - 2
Adapter Item Number - 046226 DODGE - H 320
Spherical Roller Bearing Item Number - 703941 DODGE - 23220K.C3
Fixing Ring Item Number - 747190 DODGE - SR 180X4.85
Fixing Ring Quantity - 2
Adapter Item Number - 046720 DODGE - H 2320
Sight Glass Item Number - 740453 DODGE - SG 520
Self-aligning Ball Bearing Item Number - 052644 DODGE - 1220K.C3
Fixing Ring Item Number - 747187 DODGE - SR 180x18
Fixing Ring Quantity - 2
Adapter Item Number - 719383 DODGE - H 220
Self-aligning Ball Bearing Item Number - 702907 DODGE - 2220K.M.C3
Fixing Ring Item Number - 747132 DODGE - SR 180x12
Fixing Ring Quantity - 2
Adapter Item Number - 046226 DODGE - H 320
Weight (kg) - 27.8
Shaft Size (S-1) mm - 90

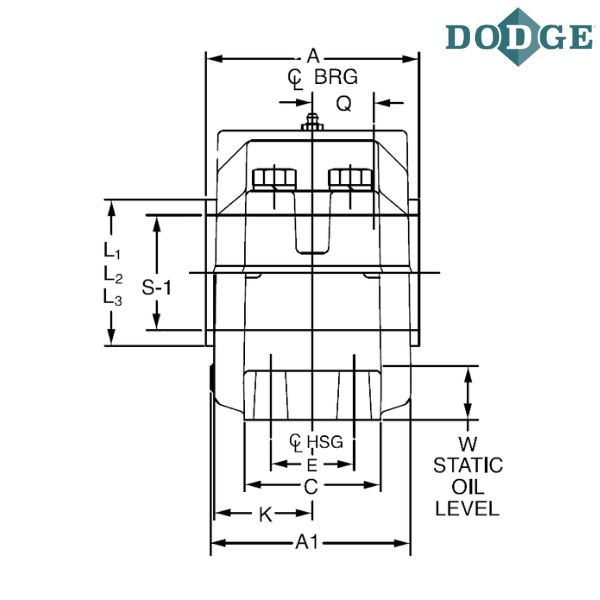

A1 (mm) - 164
Overall Length (B) mm - 390
C (mm) - 110

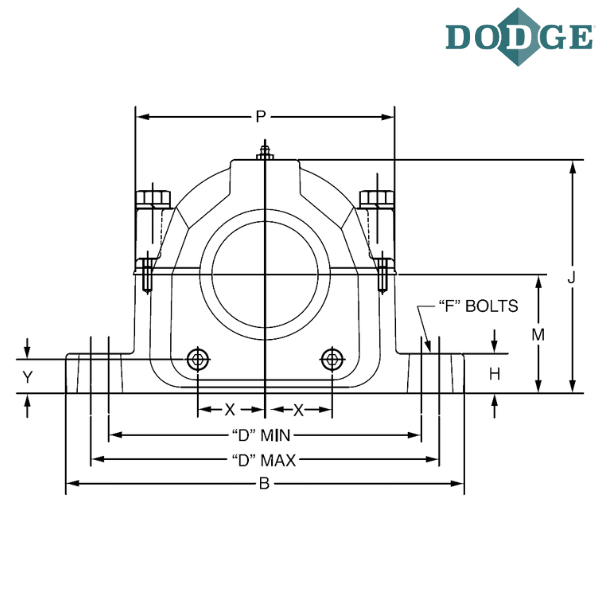

Bolt to Bolt Minimum Distance (D min) mm - 295
Bolt to Bolt Maximum Distance (D max) mm - 333
F-Bolt Diameter - M24
H (mm) - 40
Overall Height (J) mm - 220
K (mm) - 80
Base to Center Height (M) mm - 112
P (mm) - 248
Q (mm) - 43
Static Oil Level (W) mm - 45
X (mm) - 67
Y (mm) - 30
A (With LD Seal) mm - 160
A (With FS Seal) mm - 160
A (With VR Seal) mm - 171
A (With TS Seal) mm - 169
A (With TT Seal) mm - 177
A (With DK End Cover) mm - 160
L1 (VR Seal) mm - 102
L2 (TS Seal) mm - 127
L3 (TT) mm - 124

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
