747035 DODGE - SNX 617

Brand - DODGE
Item Number - 747035 DODGE - SNX 617
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 617
SK LD Seal Item Number - 496420 DODGE - SK 617 LD 75
SK FS Seal Item Number - 496431 DODGE - SK 617 FS 75
SK VR Seal Item Number - 496442 DODGE - SK 617 VR 75
End Cover Item Number - 708970 DODGE - DK 115
Spherical Roller Bearing Item Number - 423108 DODGE - 22317E1K.C3
Fixing Ring Item Number - 747131 DODGE - SR 180X5
Fixing Ring Quantity - 2
Adapter Item Number - 046718 DODGE - H 2317
Sight Glass Item Number - 740453 DODGE - SG 617
Weight (kg) - 27.8
Shaft Size (S-1) mm - 75

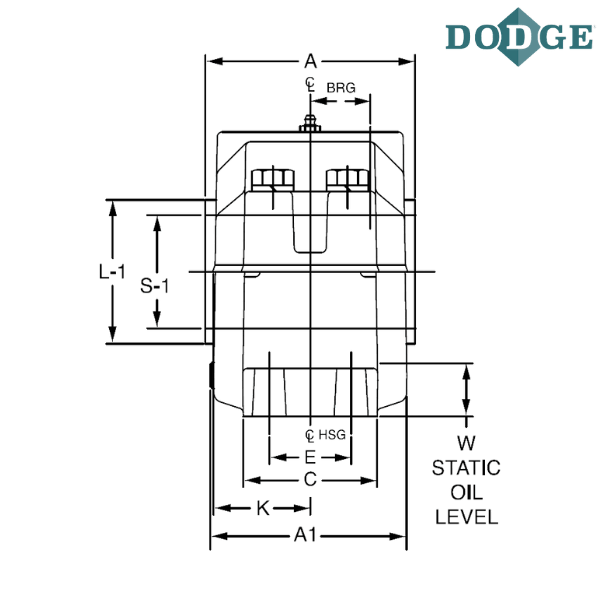

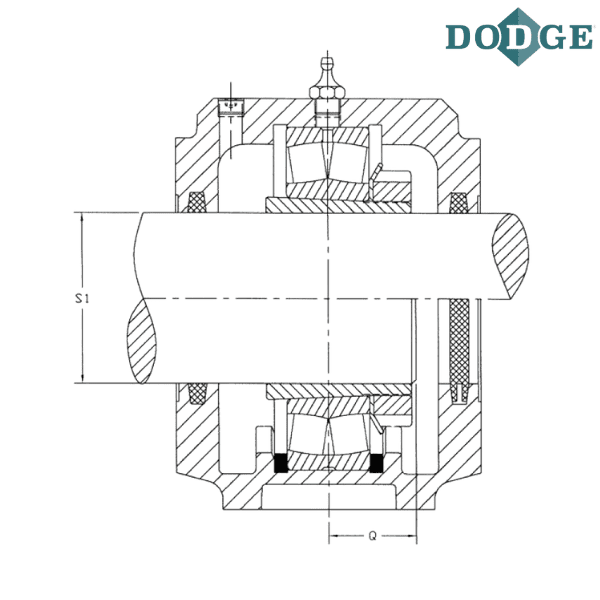

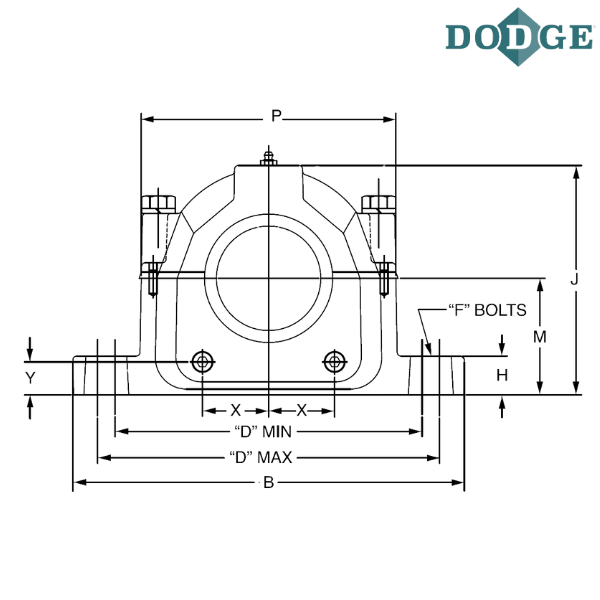

A1 (mm) - 164
Overall Length (B) mm - 390
C (mm) - 110
Bolt to Bolt Minimum Distance (D min) mm - 295
Bolt to Bolt Maximum Distance (D max) mm - 333
F-Bolt Diameter - M24
H (mm) - 40
Overall Height (J) mm - 220
K (mm) - 80
Base to Center Height (M) mm - 112
P (mm) - 248
Q (mm) - 48
Static Oil Level (W) mm - 42.1
X (mm) - 67
Y (mm) - 30
A (With LD Seal) mm - 160
A (FS Seal) mm - 160
A (With End Cover) mm - 160
A (With VR Seal) mm - 171
L1 (VR Seal) mm - 87

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
