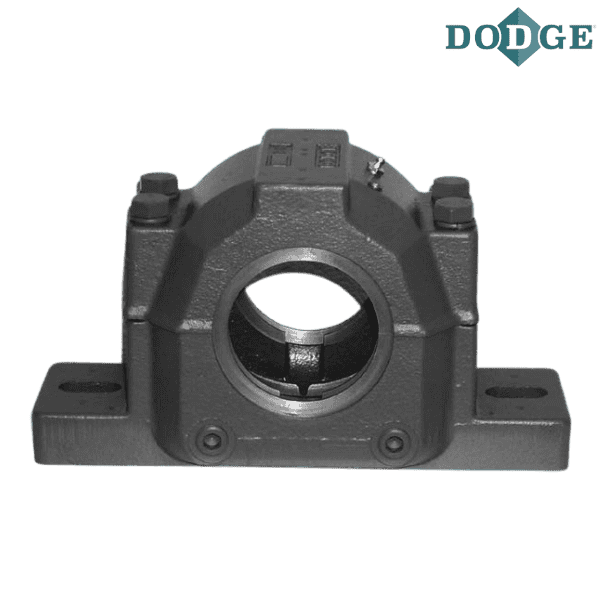

747036 DODGE - SNX 222

Brand - DODGE
Item Number - 747036 DODGE - SNX 222
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 222
LD Seal Item Number - 725344 DODGE - LD 125
FS Seal Item Number - 713613 DODGE - 10X12X230
VR Seal Item Number - 738161 DODGE - VS0125
DK End Cover Item Number - 708976 DODGE - DK 125
Spherical Roller Bearing Item Number - 421270 DODGE - 22222E1.C3
Fixing Ring Item Number - 747137 DODGE - SR 200x13.5
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 740623 DODGE - 23222.C3
Fixing Ring Item Number - 747191 DODGE - SR 200x5.1
Fixing Ring Quantity - 2
Locknut Item Number - 046294 DODGE - KM 22
Lockwasher Item Number - 046313 DODGE - MB 22
Sight Glass Item Number - 740453 DODGE - SG 222
Weight (kg) - 35.8

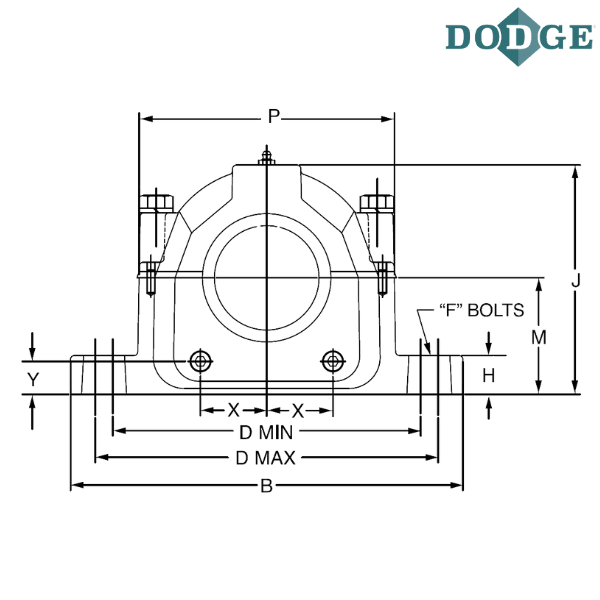

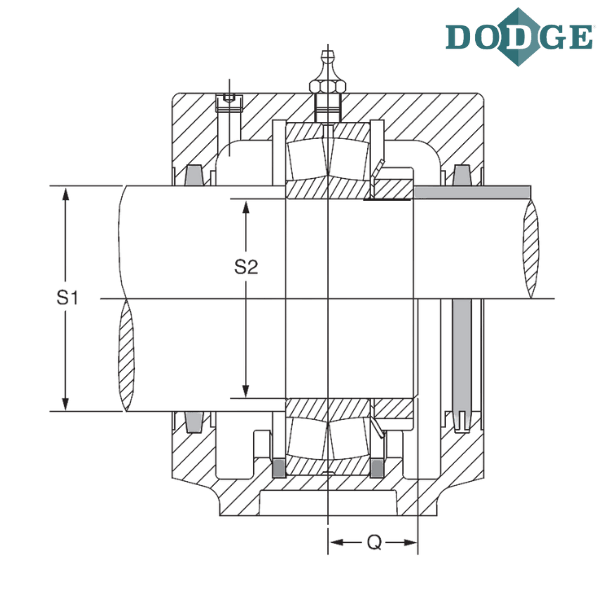

Shaft Size (S-1) mm - 125
Shaft Size (S-2) mm - 110

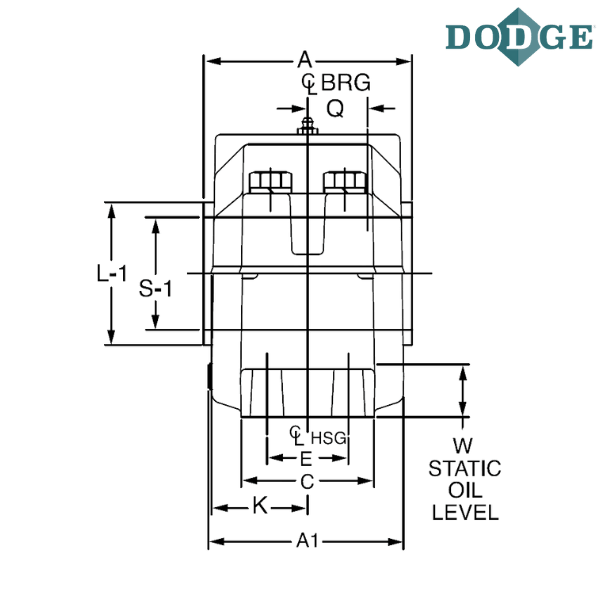

A1 (mm) - 174
Overall Length (B) mm - 419
C (mm) - 121
Bolt to Bolt Minimum Distance (D min) mm - 324
Bolt to Bolt Maximum Distance (D max) mm - 364
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 239
K (mm) - 84
Base to Center Height (M) mm - 125
P (mm) - 269
Q (mm) - 26.5
Static Oil Level (W) mm - 53.5
X (mm) - 73
Y (mm) - 34
A (With LD Seal) mm - 168
A (With FS Seal) mm - 168
A (With DK End Cover) mm - 168
A (With TS Seal) mm - 175
A (With VR Seal) mm - 180
L-1 (mm) - 131

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
