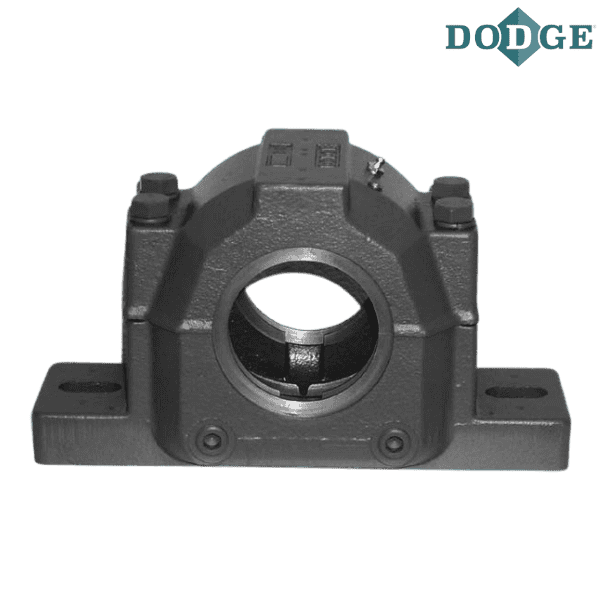

747036 DODGE - SNX 619

Brand - DODGE
Item Number - 747036 DODGE - SNX 619
Category - SNX 600 (Plummer Blocks for bearings 22300K)
Description - SNX 619
SK LD Seal Item Number - 496421 DODGE - SK 619 LD 85
SK FS Seal Item Number - 496432 DODGE - SK 619 FS 85
SK VR Seal Item Number - 496443 DODGE - SK 619 VR 85
End Cover Item Number - 708976 DODGE - DK 125
Spherical Roller Bearing Item Number - 423374 DODGE - 22319E1K.C3
Fixing Ring Item Number - 747135 DODGE - SR 200X6.5
Fixing Ring Quantity - 2
Adapter Item Number - 046719 DODGE - H 2319
Sight Glass Item Number - 740453 DODGE - SG 619
Weight (kg) - 35.8

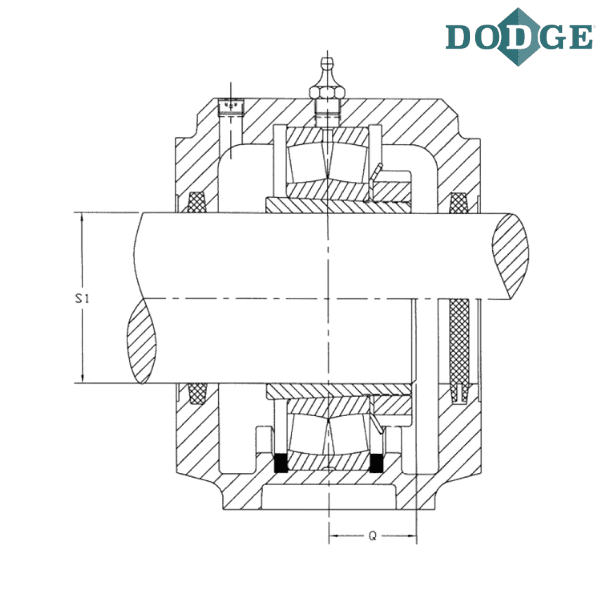

Shaft Size (S-1) mm - 85

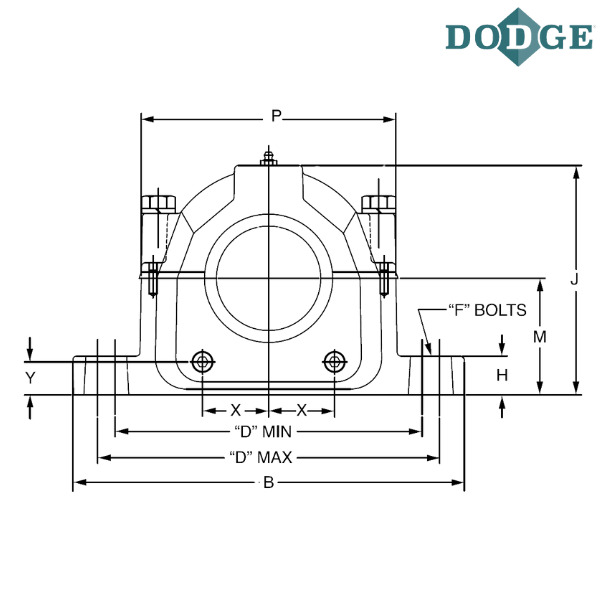

A1 (mm) - 174
Overall Length (B) mm - 419
C (mm) - 120
Bolt to Bolt Minimum Distance (D min) mm - 324
Bolt to Bolt Maximum Distance (D max) mm - 364
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 238
K (mm) - 84
Base to Center Height (M) mm - 125
P (mm) - 269
Q (mm) - 53

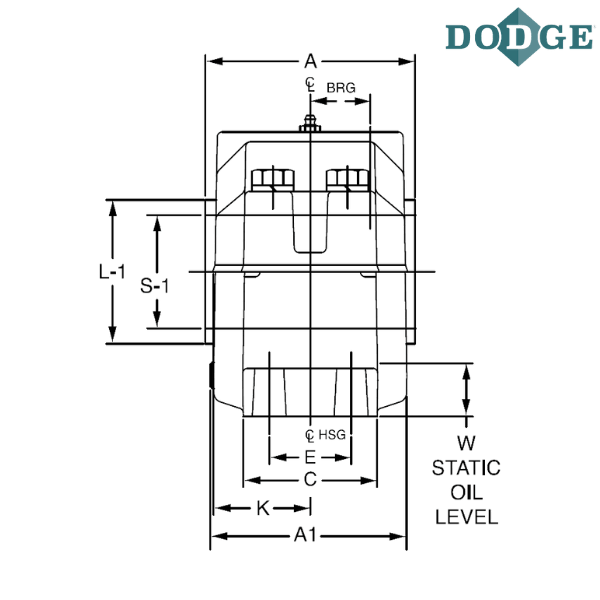

Static Oil Level (W) mm - 50.1
X (mm) - 73
Y (mm) - 34
A (With LD Seal) mm - 168
A (FS Seal) mm - 168
A (With End Cover) mm - 168
A (With VR Seal) mm - 177
L1 (VR Seal) mm - 97

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
