747037 DODGE - SNX 224

Brand - DODGE
Item Number - 747037 DODGE - SNX 224
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 224
LD Seal Item Number - 725345 DODGE - LD 135
FS Seal Item Number - 713622 DODGE - 10X12X245
VR Seal Item Number - 738162 DODGE - VS0135
DK End Cover Item Number - 708983 DODGE - DK 135
Spherical Roller Bearing Item Number - 421271 DODGE - 22224E1.C3
Fixing Ring Item Number - 747141 DODGE - SR 215x14
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 703967 DODGE - 23224.C3
Fixing Ring Item Number - 712225 DODGE - SR 215x5
Fixing Ring Quantity - 2
Locknut Item Number - 046295 DODGE - KM 24
Lockwasher Item Number - 046314 DODGE - MB 24
Sight Glass Item Number - 740453 DODGE - SG 224
Weight (kg) - 41.1

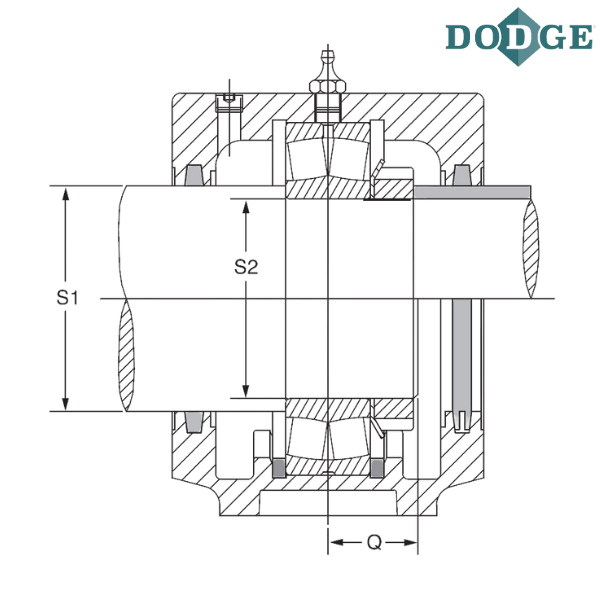

Shaft Size (S-1) mm - 135
Shaft Size (S-2) mm - 120

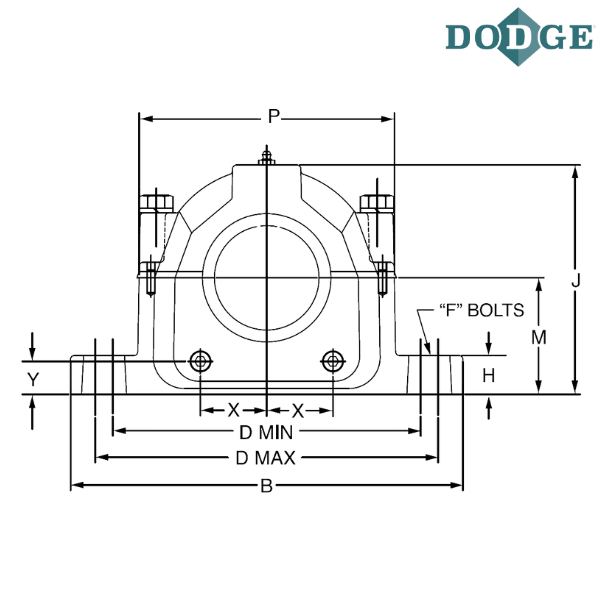

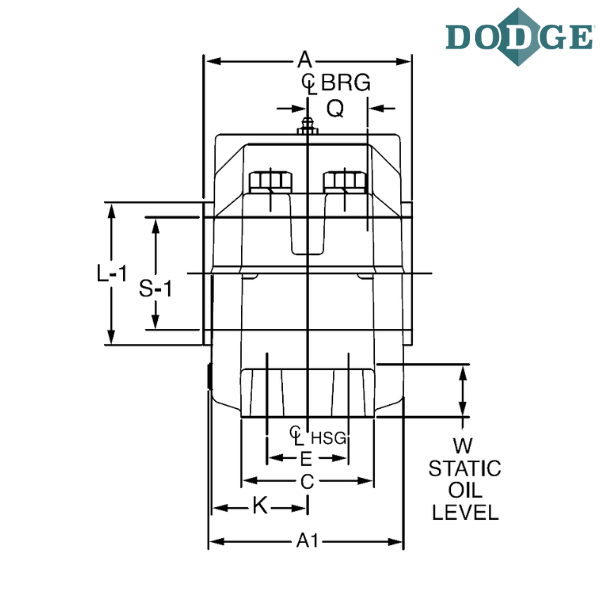

A1 (mm) - 191
Overall Length (B) mm - 419
C (mm) - 120
Bolt to Bolt Minimum Distance (D min) mm - 337
Bolt to Bolt Maximum Distance (D max) mm - 368
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 267
K (mm) - 93
Base to Center Height (M) mm - 140
P (mm) - 286
Q (mm) - 29
Static Oil Level (W) mm - 57
X (mm) - 81
Y (mm) - 42
A (With LD Seal) mm - 185
A (With FS Seal) mm - 185
A (With DK End Cover) mm - 185
A (With TS Seal) mm - 195
A (With VR Seal) mm - 199
L-1 (mm) - 131

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
