747037 DODGE - SNX 320

Brand - DODGE
Item Number - 747037 DODGE - SNX 320
Category - SNX 300 (Plummer Blocks for bearings 22300)
Description - SNX 320
SK FS Seal Item Number - 496411 DODGE - SK 320 FS 115
End Cover Item Number - 708983 DODGE - DK 135
Sight Glass Item Number - 740453 DODGE - SG 320
Spherical Roller Bearing Item Number - 423132 DODGE - 22320E1.C3
Fixing Ring Item Number - 747139 DODGE - SR 215X6.5
Fixing Ring Quantity - 2
Locknut Item Number - 046293 DODGE - KM 20
Lockwasher Item Number - 046312 DODGE - MB 20
Weight (kg) - 41.1

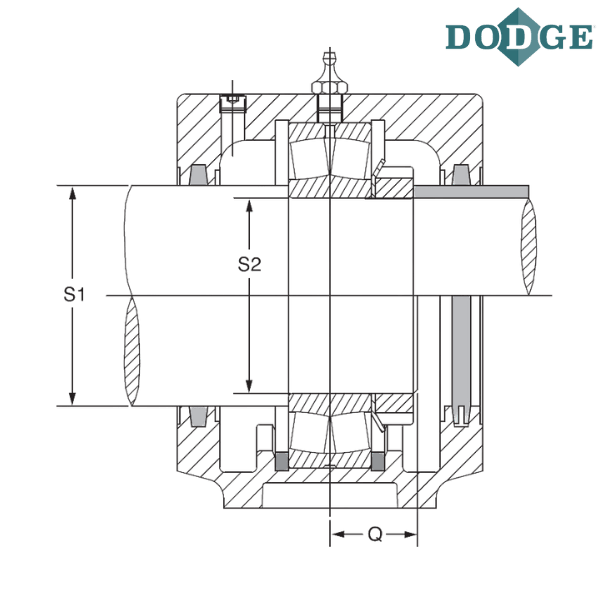

Shaft Size (S-1) mm - 115
Shaft Size (S-2) mm - 100

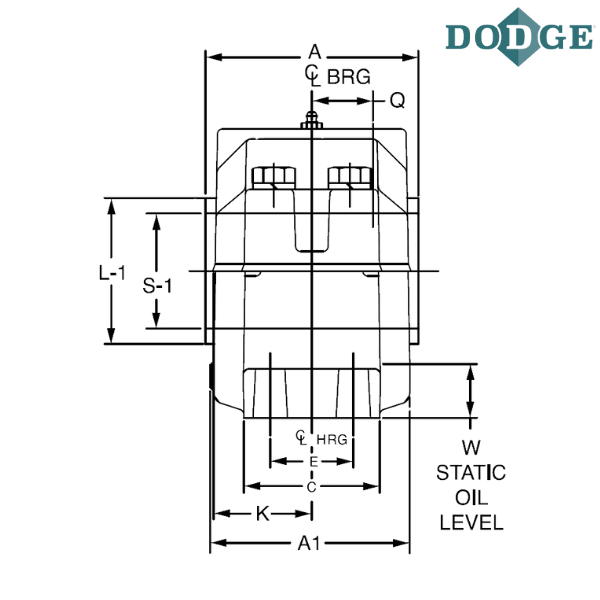

A1 (mm) - 191.3

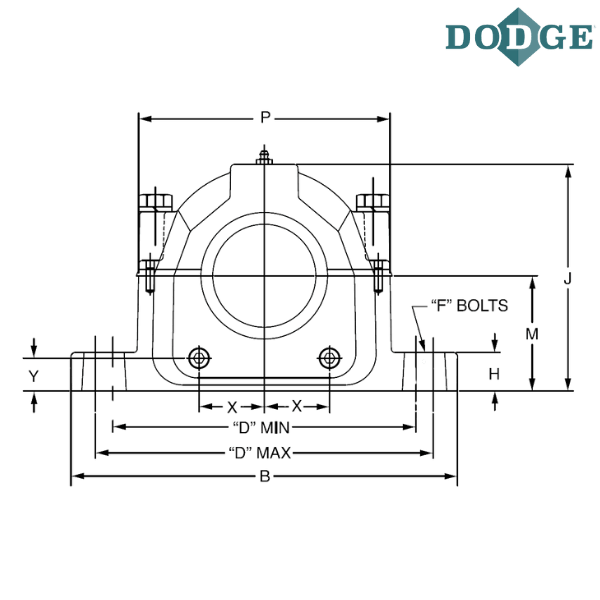

Overall Length (B) mm - 419.1
C (mm) - 119.9
Bolt to Bolt Minimum Distance (D min) mm - 336.6
Bolt to Bolt Maximum Distance (D max) mm - 368.3
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 267
K (mm) - 92.5
Base to Center Height (M) mm - 139.9
P (mm) - 285.8
Q (mm) - 36.5
Static Oil Level (W) mm - 58.1
X (mm) - 81
Y (mm) - 42.1
A (With FS Seal) mm - 184.9
A (With DK End Cover) mm - 184.9
L1 (mm) - 131.3

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
