747039 DODGE - SNX 228

Brand - DODGE
Item Number - 747039 DODGE - SNX 228
Category - SNX 200 - LD/FS/DK (Plummer Blocks for bearings 22200, 23200)
Description - SNX 228
FS Seal Item Number - 713641 DODGE - 10X12X280
VR Seal Item Number - 738166 DODGE - VS0155
DK End Cover Item Number - 740382 DODGE - DK 155
Spherical Roller Bearing Item Number - 421273 DODGE - 22228E1.C3
Fixing Ring Item Number - 747146 DODGE - SR 250x15
Fixing Ring Quantity - 2
Spherical Roller Bearing Item Number - 741031 DODGE - 23228.C3
Fixing Ring Item Number - 747193 DODGE - SR 250x5
Fixing Ring Quantity - 2
Locknut Item Number - 046297 DODGE - KM 28
Lockwasher Item Number - 046316 DODGE - MB 28
Sight Glass Item Number - 740453 DODGE - SG 228
Weight (kg) - 69

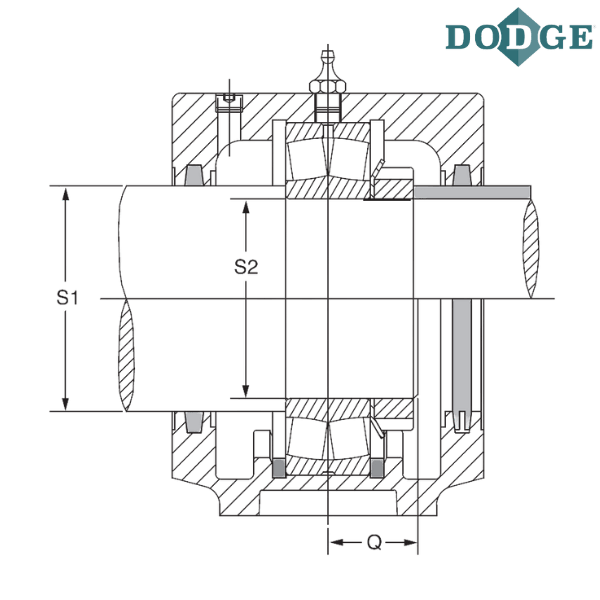

Shaft Size (S-1) mm - 155
Shaft Size (S-2) mm - 140

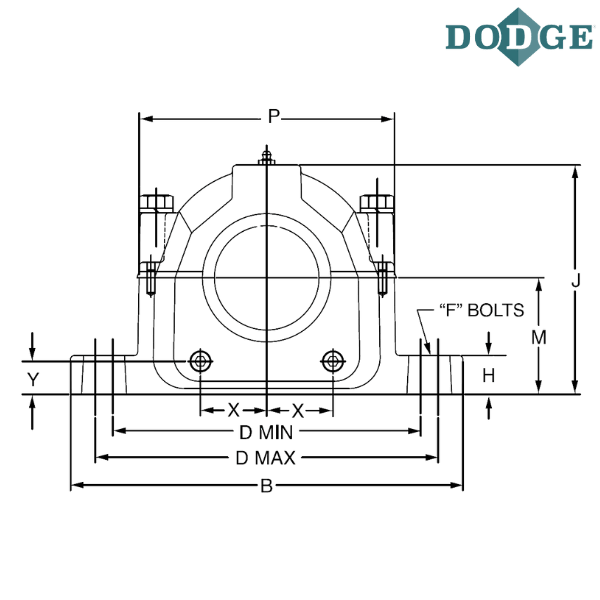

A1 (mm) - 210
Overall Length (B) mm - 500
C (mm) - 150
Bolt to Bolt Minimum Distance (D min) mm - 400
Bolt to Bolt Maximum Distance (D max) mm - 420
F-Bolt Diameter - M30
H (mm) - 50
Overall Height (J) mm - 298
K (mm) - 102
Base to Center Height (M) mm - 150
P (mm) - 337
Q (mm) - 34
Static Oil Level (W) mm - 51.5
X (mm) - 92
Y (mm) - 35

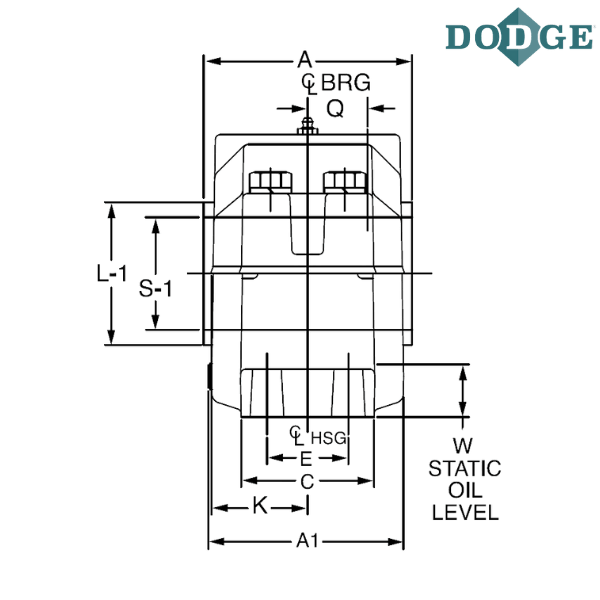

A (With LD Seal) mm - 203
A (With FS Seal) mm - 203
A (With DK End Cover) mm - 203
A (With TS Seal) mm - 211
A (With VR Seal) mm - 218
L-1 (mm) - 160

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
