747039 DODGE - SNX 528

Brand - DODGE
Item Number - 747039 DODGE - SNX 528
Category - SNX 500 (Plummer Blocks for bearings 1200K, 2200K, 22200K, 23200K)
Description - SNX 528
SK LD Seal Item Number - 496460 DODGE - SK 528 LD 125
SK FS Seal Item Number - 496478 DODGE - SK 528 FS 125
SK VR Seal Item Number - 496496 DODGE - SK 528 VR 125
Labyrinth Seal Item Number - 747342 DODGE - TS 528
Triple-Tect Seal Item Number - 747398 DODGE - TT 528
End Cover Item Number - 740382 DODGE - DK 155
Spherical Roller Bearing Item Number - 422017 DODGE - 22228EK1.C3
Fixing Ring Item Number - 747146 DODGE - SR 250x15
Fixing Ring Quantity - 2
Adapter Item Number - 046230 DODGE - H 3128
Spherical Roller Bearing Item Number - 703982 DODGE - 23228K.C3
Fixing Ring Item Number - 747193 DODGE - SR 250x5
Fixing Ring Quantity - 2
Adapter Item Number - 719406 DODGE - H 2328
Sight Glass Item Number - 740453 DODGE - SG 528
Weight (kg) - 69
Shaft Size (S-1) mm - 125

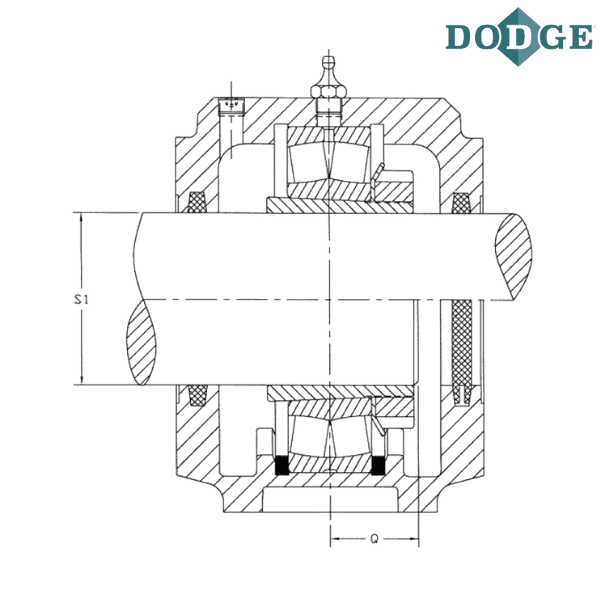

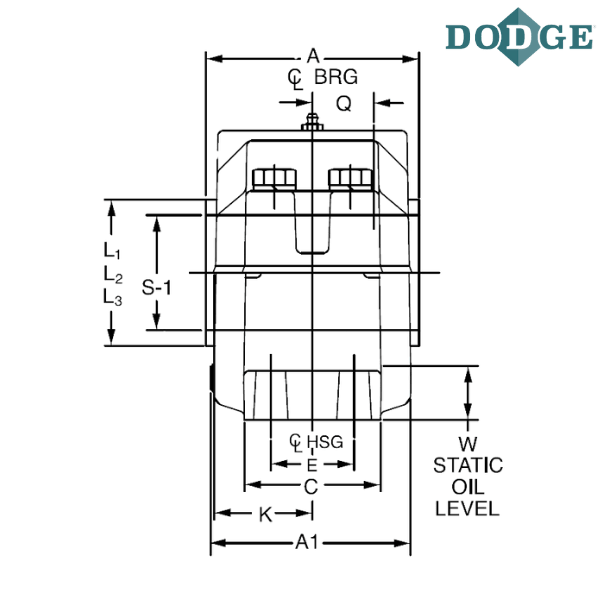

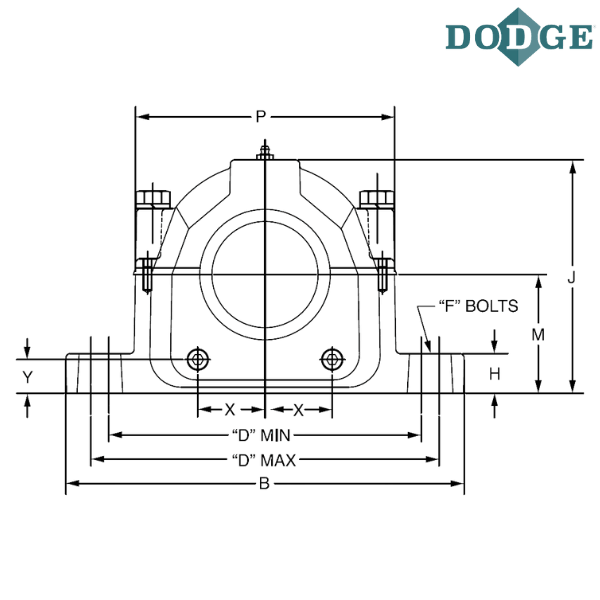

A1 (mm) - 210
Overall Length (B) mm - 500
C (mm) - 150
Bolt to Bolt Minimum Distance (D min) mm - 400
Bolt to Bolt Maximum Distance (D max) mm - 420
F-Bolt Diameter - M30
H (mm) - 50
Overall Height (J) mm - 298
K (mm) - 102
Base to Center Height (M) mm - 150
P (mm) - 337
Q (mm) - 58
Static Oil Level (W) mm - 51.5
X (mm) - 92
Y (mm) - 35
A (With LD Seal) mm - 203
A (With FS Seal) mm - 203
A (With VR Seal) mm - 215
A (With TS Seal) mm - 211
A (With TT Seal) mm - 222
A (With DK End Cover) mm - 203
L1 (VR Seal) mm - 139
L2 (TS Seal) mm - 160
L3 (TT) mm - 164

Notes :
SNX - Plummer Block to 140 mm
