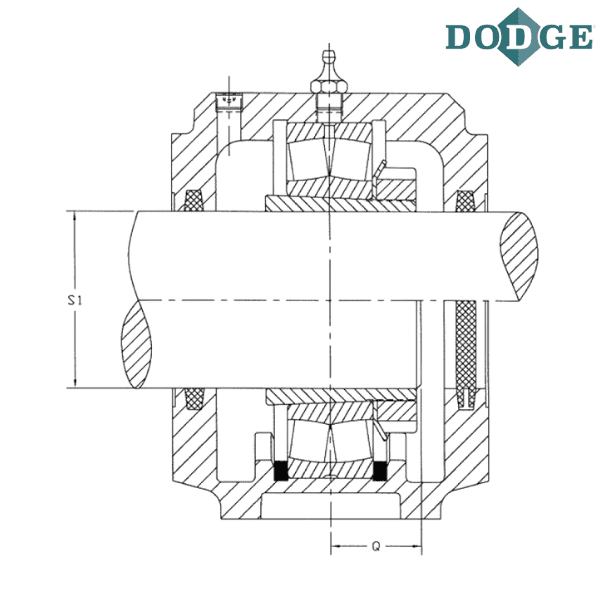

747042 DODGE - SNX 3024

Brand - DODGE
Item Number - 747042 DODGE - SNX 3024
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3024
LD Seal Item Number - 725342 DODGE - LD 110
FS Seal Item Number - 713596 DODGE - 10X12X200
VR Seal Item Number - 738157 DODGE - VS0110
End Cover Item Number - 708966 DODGE - DK 110
Spherical Roller Bearing Item Number - 703619 DODGE - 23024EASK.M.C3
Fixing Ring Item Number - 747131 DODGE - SR 180X5
Fixing Ring Quantity - 2
Adapter Item Number - 719419 DODGE - H 3024
Weight (kg) - 81

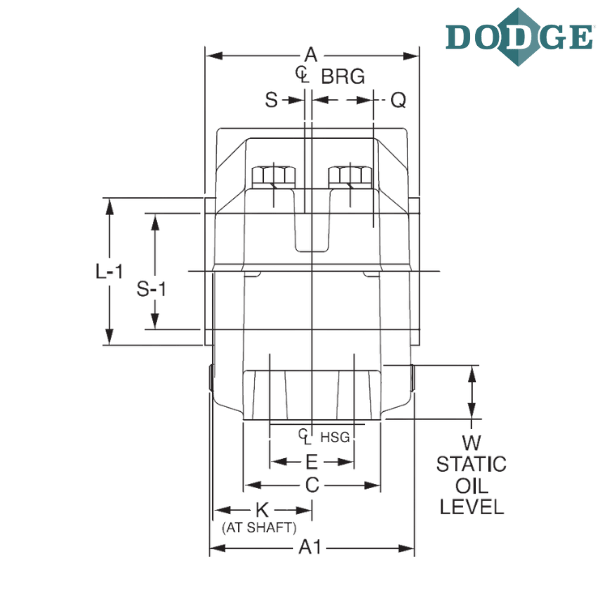

Shaft Size (S-1) mm - 110
A1 (mm) - 167

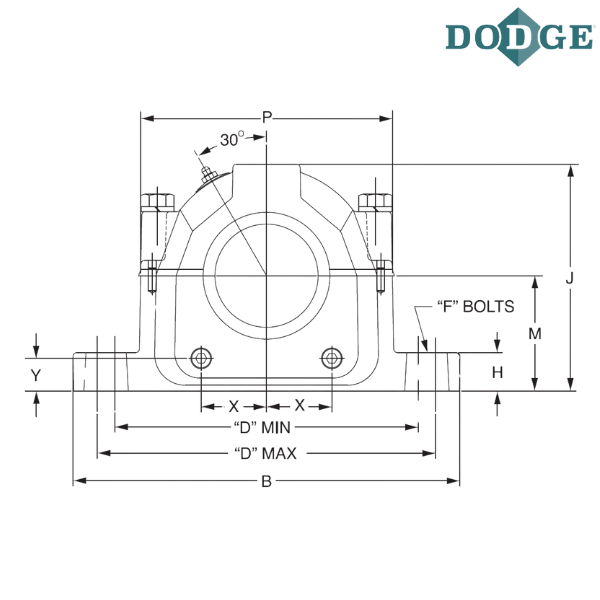

Overall Length (B) mm - 390
C (mm) - 110
Bolt to Bolt Minimum Distance (D min) mm - 295
Bolt to Bolt Maximum Distance (D max) mm - 333
F-Bolt Diameter - M24
H (mm) - 40
Overall Height (J) mm - 220
K (mm) - 80
Base to Center Height (M) mm - 112
P (mm) - 248
Q (mm) - 38
Static Oil Level (W) mm - 37
X (mm) - 66.5
Y (mm) - 30
A (With LD Seal) mm - 160
A (With Felt Seal) mm - 160
A (With End Cover) mm - 160
A (With VR Seal) mm - 175
L1 (mm) - 113

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
