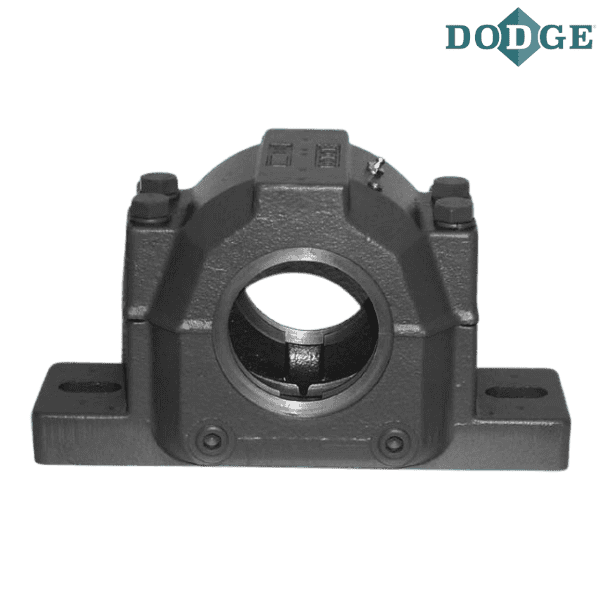

747044 DODGE - SNX 3028

Brand - DODGE
Item Number - 747044 DODGE - SNX 3028
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3028
LD Seal Item Number - 725344 DODGE - LD 125
FS Seal Item Number - 713613 DODGE - 10X12X230
VR Seal Item Number - 738160 DODGE - VS0125
End Cover Item Number - 708976 DODGE - DK 125
Spherical Roller Bearing Item Number - 703644 DODGE - 23028EASK.M
Fixing Ring Item Number - 747138 DODGE - SR 210X10
Fixing Ring Quantity - 1
Adapter Item Number - 719421 DODGE - H 3028
Weight (kg) - 121

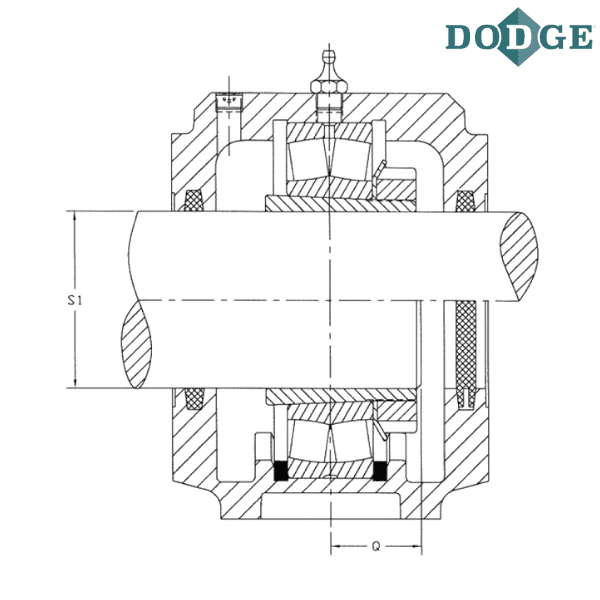

Shaft Size (S-1) mm - 125

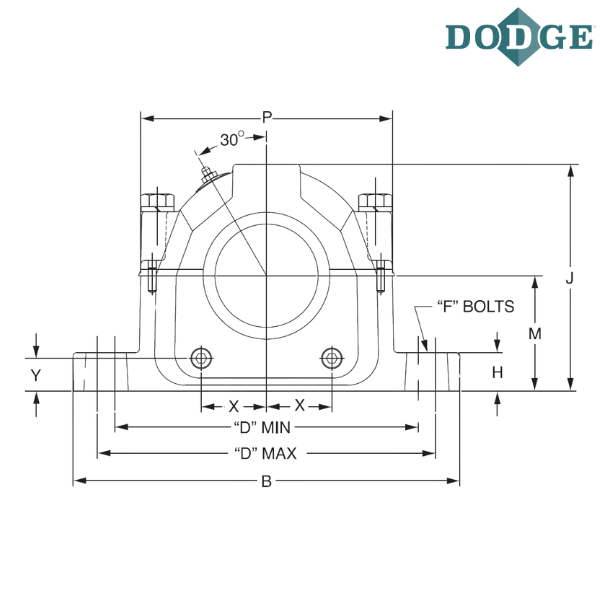

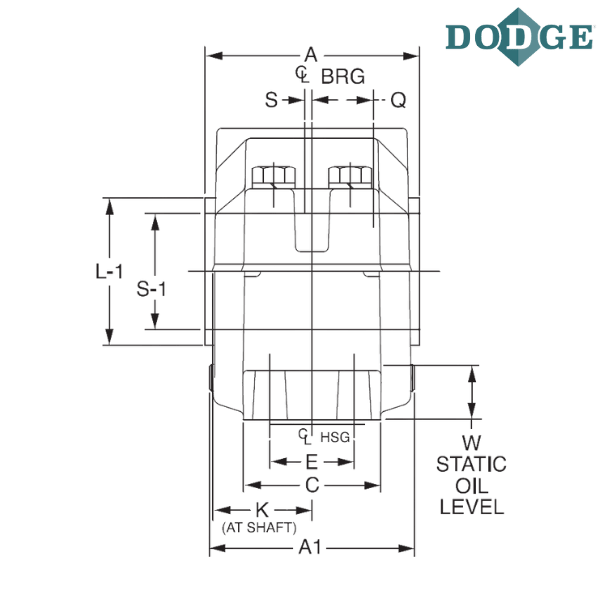

A1 (mm) - 191
Overall Length (B) mm - 419
C (mm) - 120
Bolt to Bolt Minimum Distance (D min) mm - 337
Bolt to Bolt Maximum Distance (D max) mm - 368
F-Bolt Diameter - M24
H (mm) - 45
Overall Height (J) mm - 267
K (mm) - 93
Base to Center Height (M) mm - 140
P (mm) - 286
Q (mm) - 50.5
Static Oil Level (W) mm - 52
X (mm) - 81
Y (mm) - 42
A (With LD Seal) mm - 185
A (With Felt Seal) mm - 185
A (With End Cover) mm - 185
A (With VR Seal) mm - 199
L1 (mm) - 139

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
