747045 DODGE - SNX 3030

Brand - DODGE
Item Number - 747045 DODGE - SNX 3030
Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3030
LD Seal Item Number - 725345 DODGE - LD 135
FS Seal Item Number - 713622 DODGE - 10X12X245
VR Seal Item Number - 738162 DODGE - VS0135
End Cover Item Number - 708983 DODGE - DK 135
Spherical Roller Bearing Item Number - 703656 DODGE - 23030EASK.M.C3
Fixing Ring Item Number - 747142 DODGE - SR 225X10
Fixing Ring Quantity - 1
Adapter Item Number - 719422 DODGE - H 3030
Weight (kg) - 161
Shaft Size (S-1) mm - 135

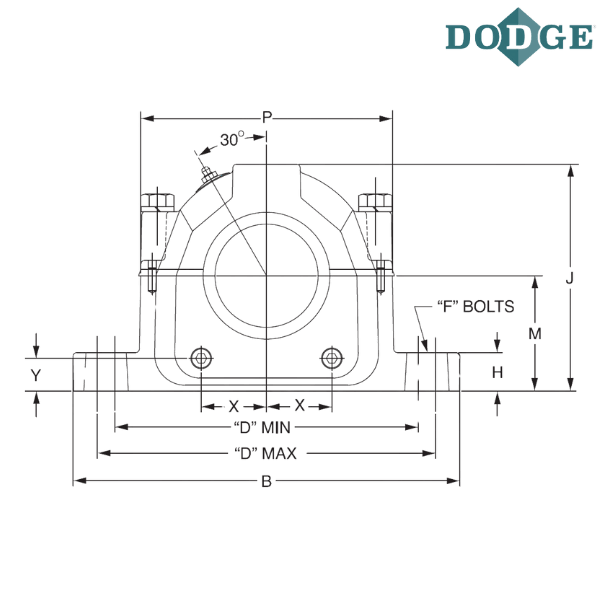

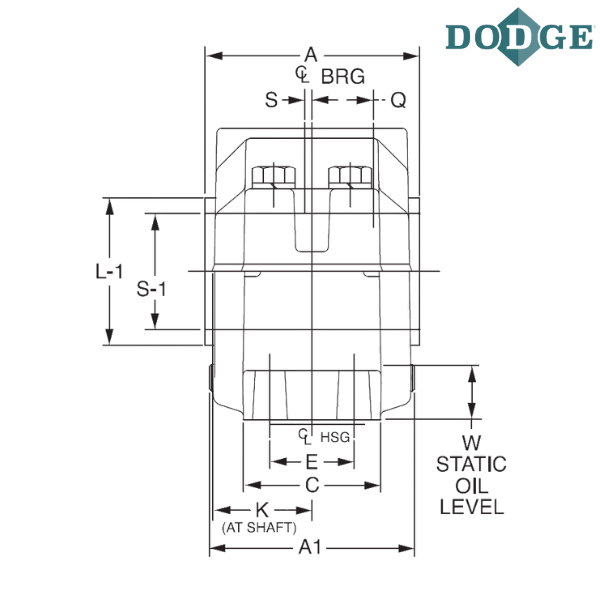

A1 (mm) - 197
Overall Length (B) mm - 445
C (mm) - 130
Bolt to Bolt Minimum Distance (D min) mm - 374
Bolt to Bolt Maximum Distance (D max) mm - 387
F-Bolt Diameter - M24
H (mm) - 50
Overall Height (J) mm - 290
K (mm) - 95
Base to Center Height (M) mm - 150
P (mm) - 315
Q (mm) - 54
Static Oil Level (W) mm - 56
X (mm) - 84.1
Y (mm) - 39
A (With LD Seal) mm - 191
A (With Felt Seal) mm - 191
A (With End Cover) mm - 191
A (With VR Seal) mm - 204
L1 (mm) - 149

Notes :
SNX - Plummer Block to 140 mm

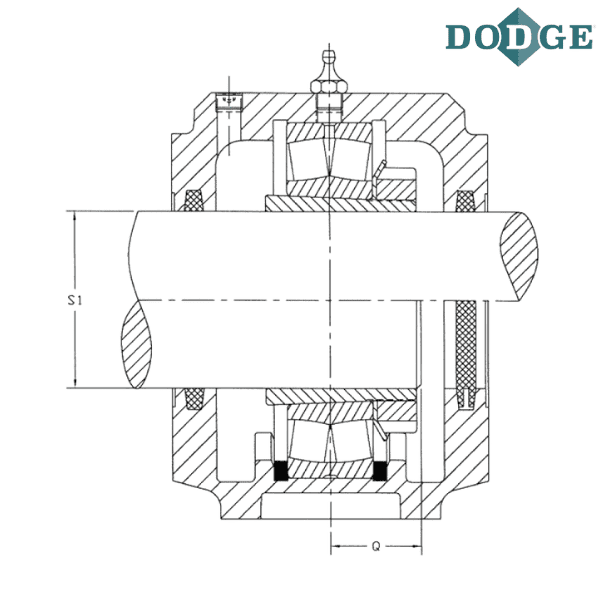

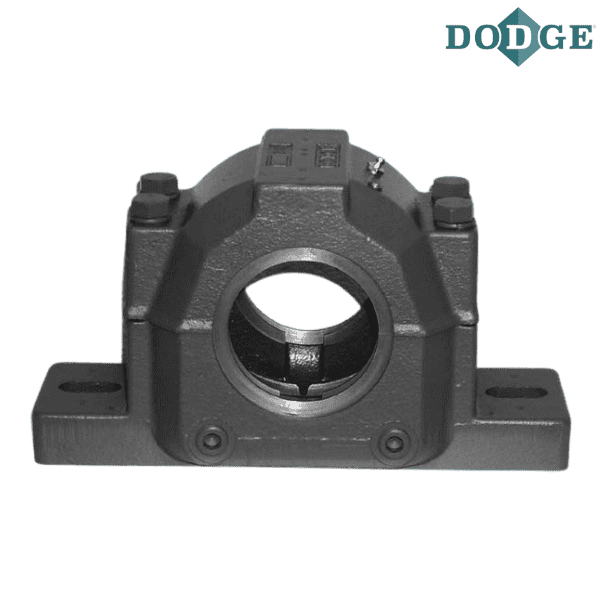

** Images are for representation purposes only
