747048 DODGE - SNX 3036

Brand - DODGE
Item Number - 747048 DODGE - SNX 3036

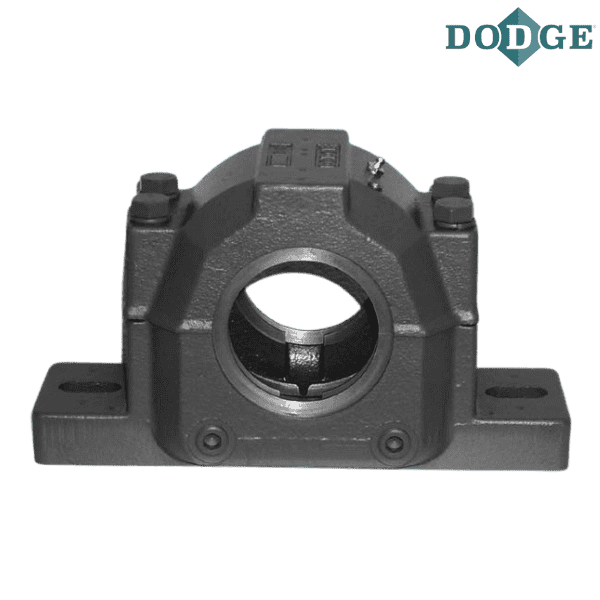

Category - SNX 30 (Plummer Blocks for bearings 23000K)
Description - SNX 3036
FS Seal Item Number - 713647 DODGE - 10X12X300
VR Seal Item Number - 738167 DODGE - VS0160
End Cover Item Number - 740384 DODGE - DK 175
Spherical Roller Bearing Item Number - 703679 DODGE - 23036K.C3
Fixing Ring Item Number - 747150 DODGE - SR 280X10
Fixing Ring Quantity - 1
Adapter Item Number - 053088 DODGE - H 3036
Weight (kg) - 235

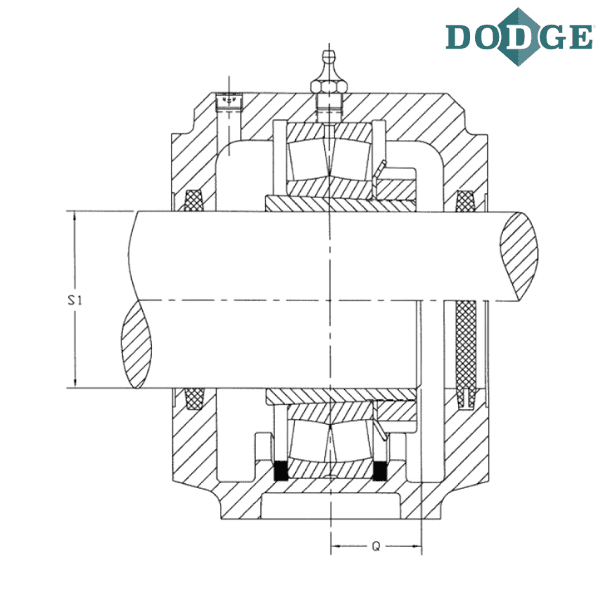

Shaft Size (S-1) mm - 160

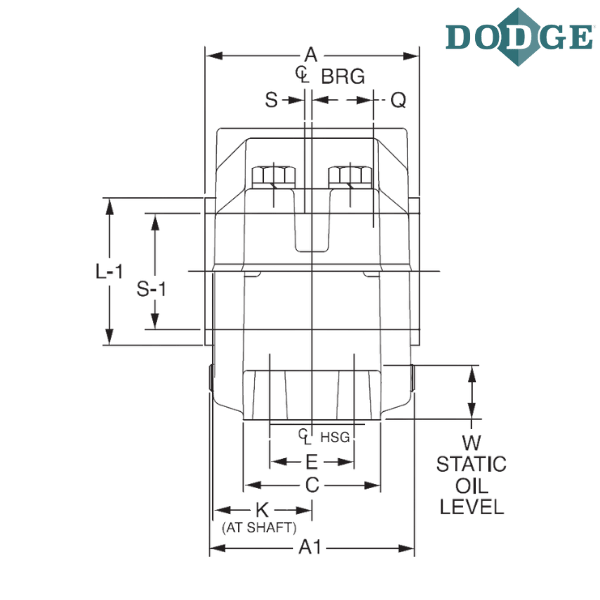

A1 (mm) - 241

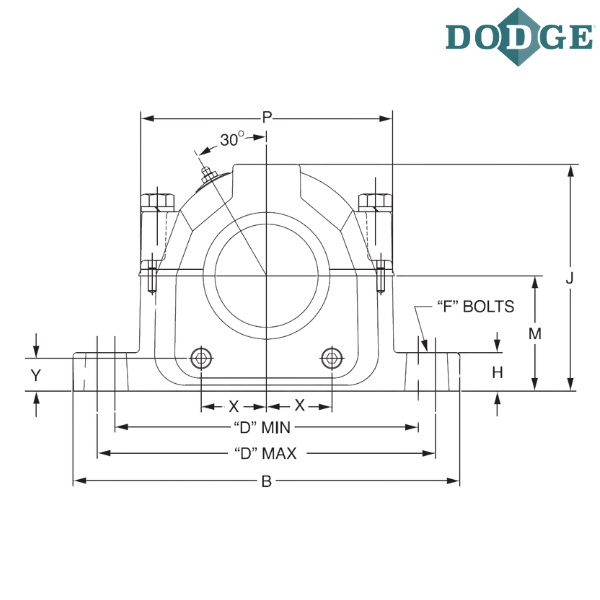

Overall Length (B) mm - 550
C (mm) - 159
Bolt to Bolt Minimum Distance (D min) mm - 457
Bolt to Bolt Maximum Distance (D max) mm - 483
F-Bolt Diameter - M30
H (mm) - 60
Overall Height (J) mm - 338
K (mm) - 118
Base to Center Height (M) mm - 170
P (mm) - 379
Q (mm) - 67
Static Oil Level (W) mm - 52
X (mm) - 102.4
Y (mm) - 34
A (With LD Seal) mm - 235
A (With Felt Seal) mm - 235
A (With End Cover) mm - 235
A (With VR Seal) mm - 252
L1 (mm) - 176

Notes :
SNX - Plummer Block to 140 mm

** Images are for representation purposes only
