747199 DODGE - SNX 209 - TS/TT

Brand - DODGE
Item Number - 747199 DODGE - SNX 209 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 209 - TS/TT
Part Number (Labyrinth seal) - 747234
Description (Labyrinth seal) - TS 209
Part Number (Triple-Tect seal) - 747217
Description (Triple-Tect seal) - TT 209
Weight (kg) - 4.3

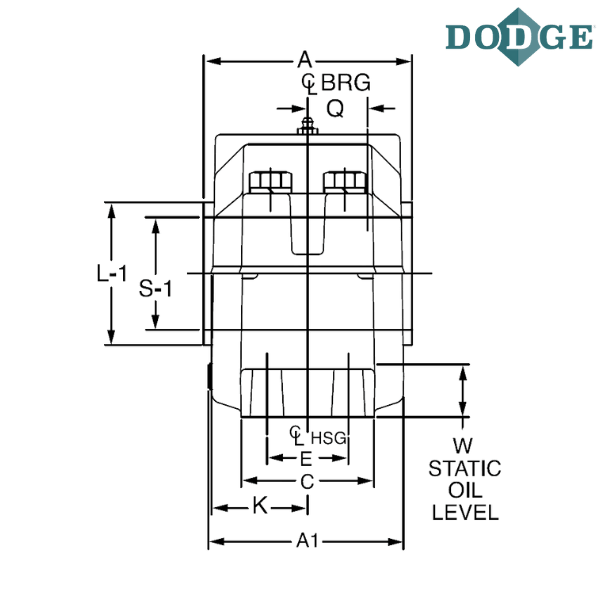

A (With TS Seal) mm - 91
A (With TT Seal) mm - 91

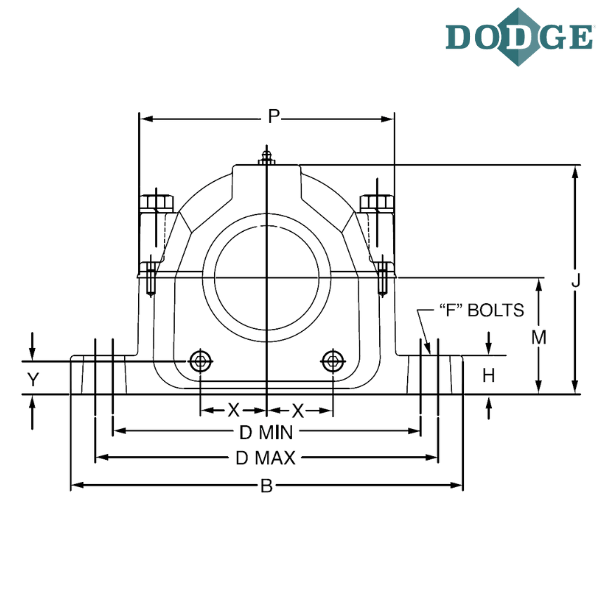

L-1 (inch) - 59
Other Dimensions - Available on Request

Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal

* Housings are for use with TS or TT seals only

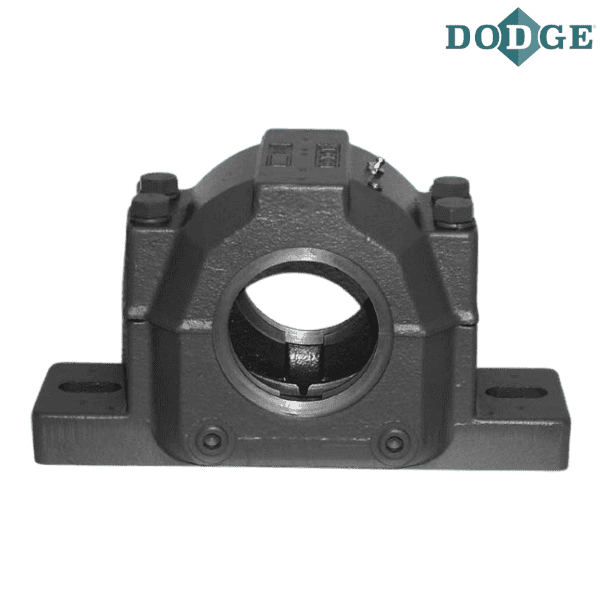

** Images are for representation purposes only
