Description
Brand - DODGE

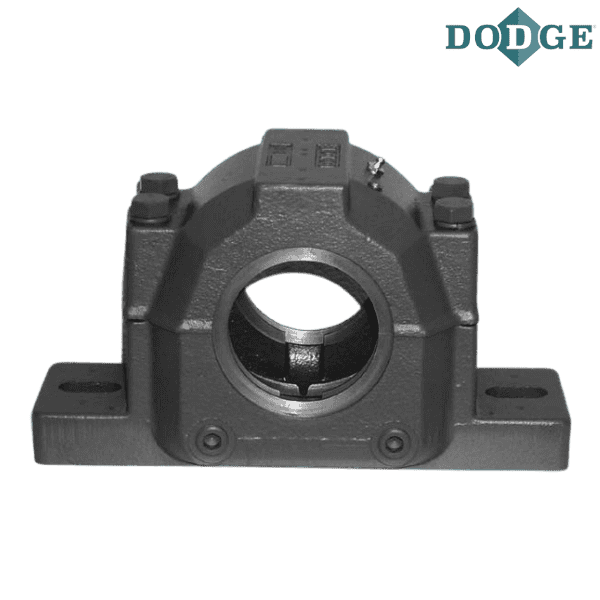

Item Number - 747201 DODGE - SNX 210 - TS/TT
Category - SNX 200 - TS/TT (Plummer Blocks for bearings 22200, 23200)
Description (Housing GG*) - SNX 210 - TS/TT
Part Number (Labyrinth seal) - 747235
Description (Labyrinth seal) - TS 210
Part Number (Triple-Tect seal) - 747218
Description (Triple-Tect seal) - TT 210
Weight (kg) - 5.1

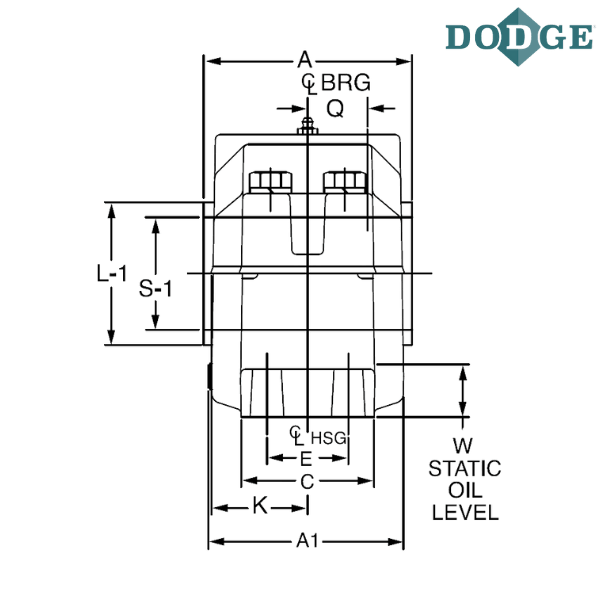

A (With TS Seal) mm - 95
A (With TT Seal) mm - 95

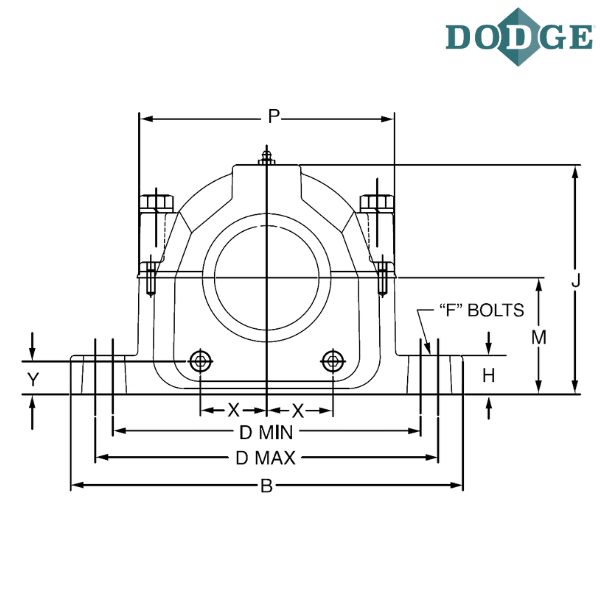

L-1 (inch) - 64
Other Dimensions - Available on Request
Notes :
SNX - Plummer Block to 140 mm
TS - Labyrinth Seal
TT - Triple-Tect Seal
* Housings are for use with TS or TT seals only
** Images are for representation purposes only
