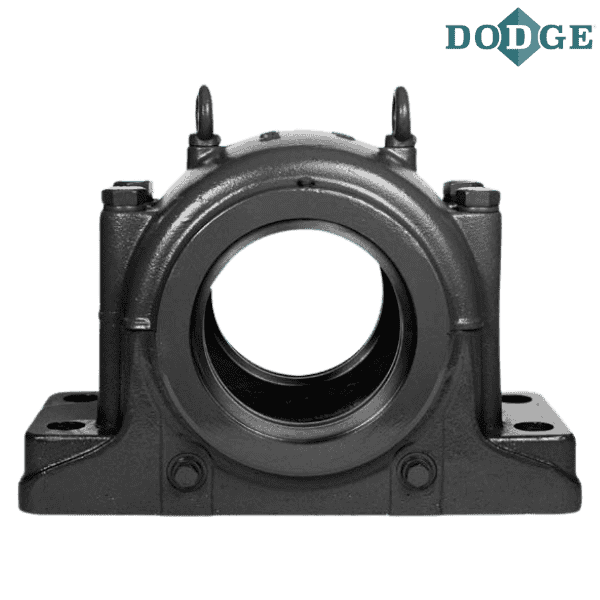

747601 DODGE - SDX 3136

Brand - DODGE
Item Number - 747601 DODGE - SDX 3136
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3136
Labyrinth Seal Item Number - 747682 DODGE - TS-23136
Triple-Tect Seal Item Number - 747722 DODGE - TT-23136
End Cover Item Number - 747747 DODGE - EC-SDX3136
Spherical Roller Bearing Item Number - 703840 DODGE - 23136ESKTVPB.C3
Fixing Ring Item Number - 747154 DODGE - SR 300x10
Fixing Ring Quantity - 2
Adapter Item Number - 046234 DODGE - H 3136
Weight (kg) - 75
Shaft Diameter (d) mm - 160

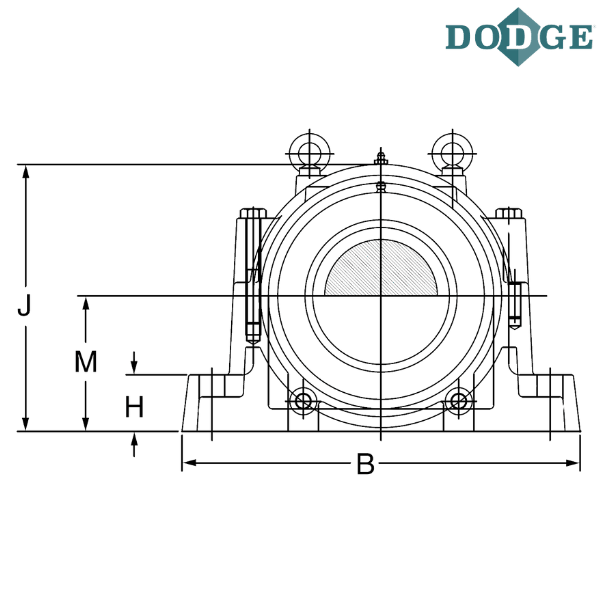

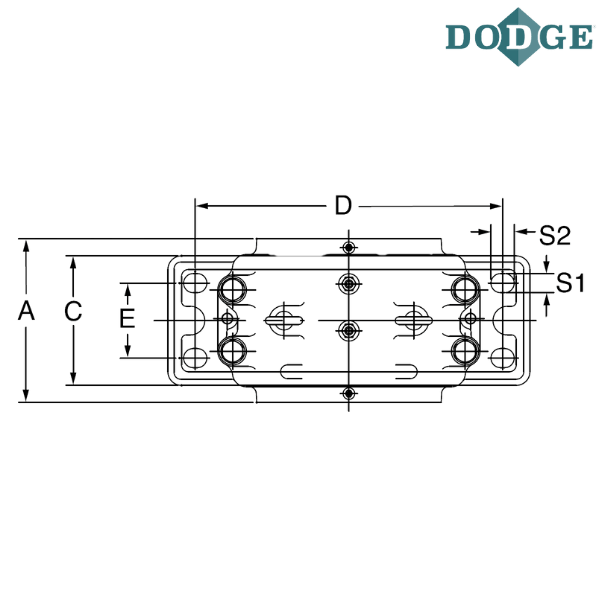

A (mm) - 240
Overall Length (B) mm - 530
C (mm) - 190
H (mm) - 75
Bolt Center to Center Length (D) mm - 450
E (mm) - 110
Overall Height (J) mm - 355
Base to Center Height (M) mm - 180
K (mm) - 120
Bolt Size (S) mm - 24
S1 (mm) - 28
S2 (mm) - 34
Q (mm) - 78
T (mm) - 15

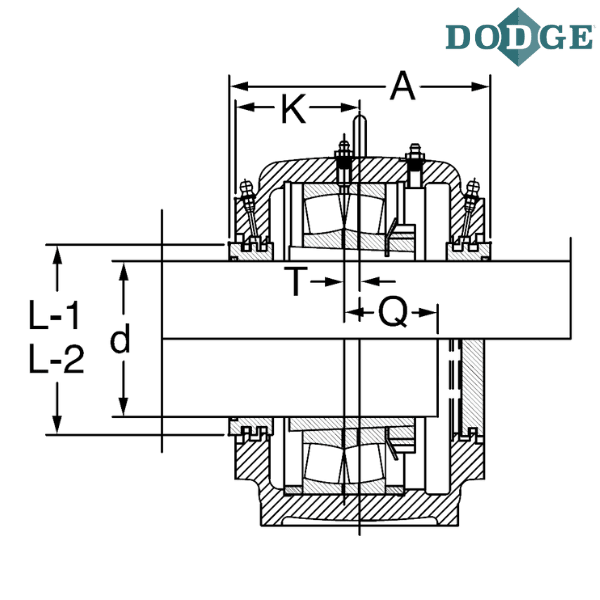

A (With DK End Cover) mm - 240
A (With TS Seal) mm - 264
A (With TT Seal) mm - 269
L1 (TS Seal) mm - 195
L2 (TT Seal) mm - 196

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
