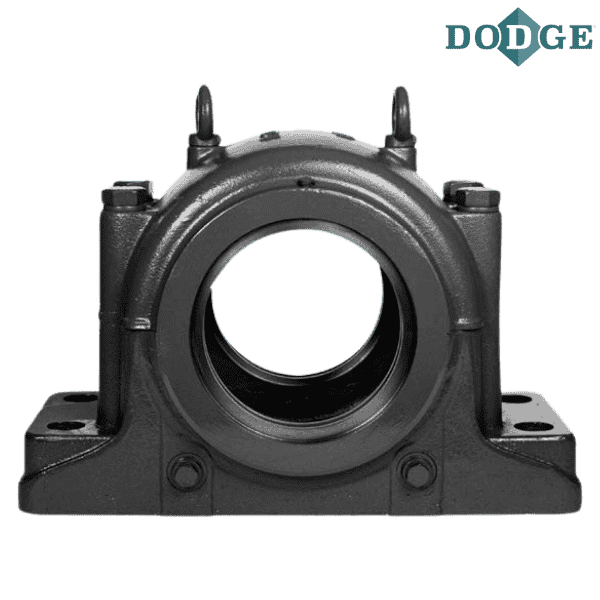

747602 DODGE - SDX 3040

Brand - DODGE
Item Number - 747602 DODGE - SDX 3040
Category - SDX 3000 (Plummer Blocks for bearings 23000K)
Description - SDX 3040
Labyrinth Seal Item Number - 747666 DODGE - TS-23040
Triple-Tect Seal Item Number - 747706 DODGE - TT-23040
End Cover Item Number - 747748 DODGE - EC-SDX3040
Spherical Roller Bearing Item Number - 703694 DODGE - 23040EASK.M.C3
Fixing Ring Item Number - 747155 DODGE - SR 310x20
Fixing Ring Quantity - 2
Adapter Item Number - 719432 DODGE - H 3040
Weight (kg) - 120

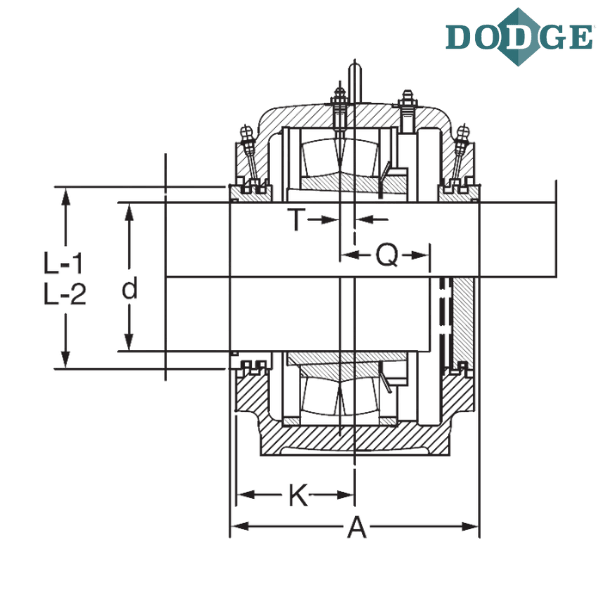

Shaft Diameter (d) mm - 180

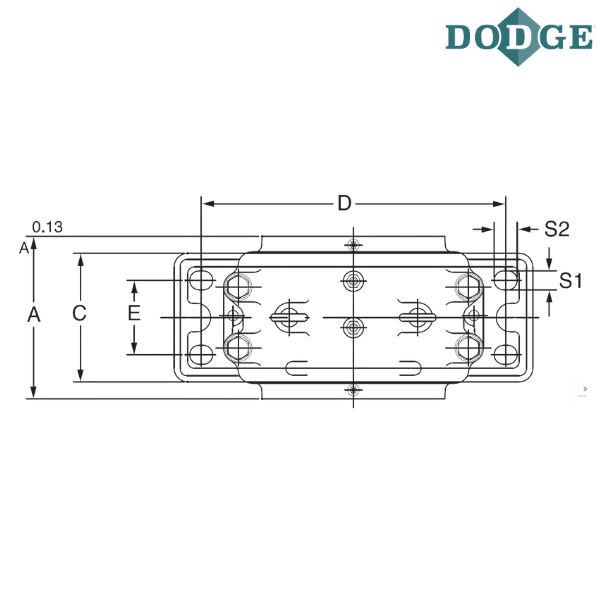

A (mm) - 260

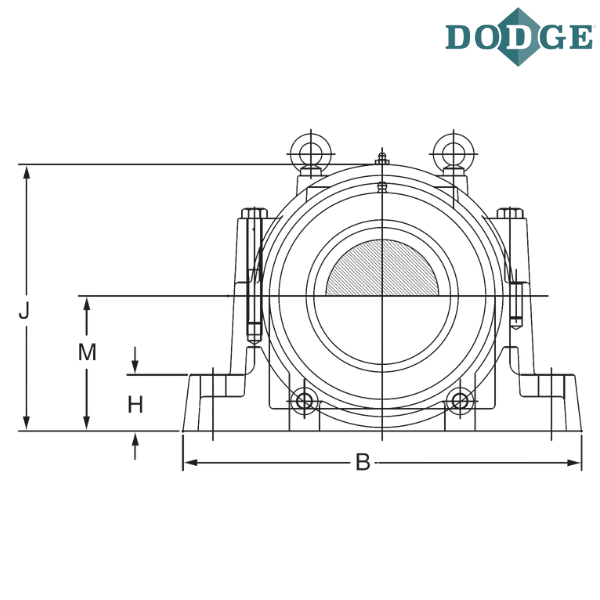

Overall Length (B) mm - 560
C (mm) - 210
H (mm) - 80
Bolt Center to Center Length (D) mm - 480
E (mm) - 120
Overall Height (J) mm - 375
Base to Center Height (M) mm - 190
K (mm) - 130
Bolt Size (S) mm - 24
S1 (mm) - 28
S2 (mm) - 34
Q (mm) - 73
T (mm) - 10
A (With DK End Cover) mm - 260
A (With TS Seal) mm - 284
A (With TT Seal) mm - 289
L1 (TS Seal) mm - 215
L2 (TT Seal) mm - 216

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
