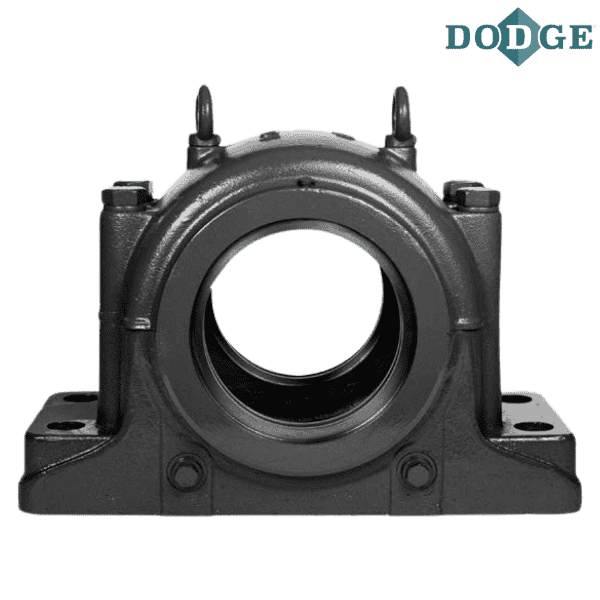

747603 DODGE - SDX 3138

Brand - DODGE
Item Number - 747603 DODGE - SDX 3138
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3138
Labyrinth Seal Item Number - 747683 DODGE - TS-23138
Triple-Tect Seal Item Number - 747723 DODGE - TT-23138
End Cover Item Number - 747749 DODGE - EC-SDX3138
Spherical Roller Bearing Item Number - 703850 DODGE - 23138K.C3
Fixing Ring Item Number - 747156 DODGE - SR 320x10
Fixing Ring Quantity - 2
Adapter Item Number - 046235 DODGE - H 3138
Weight (kg) - 95

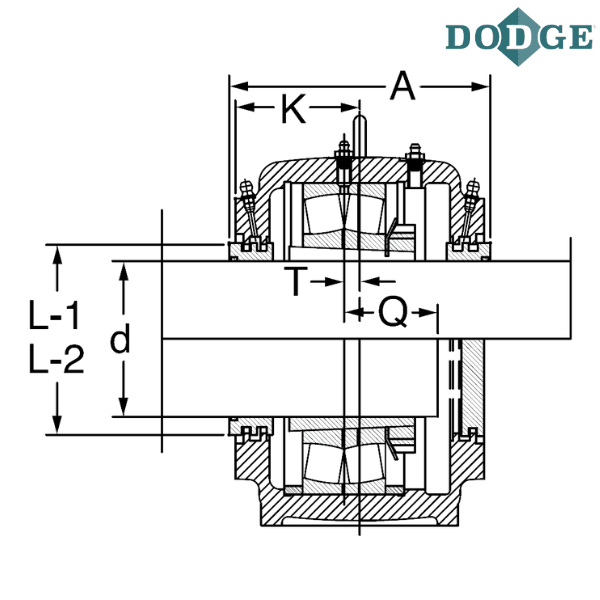

Shaft Diameter (d) mm - 170

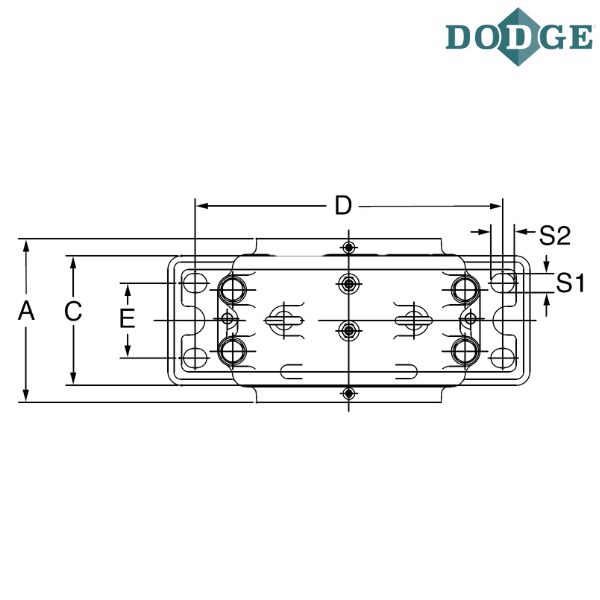

A (mm) - 260

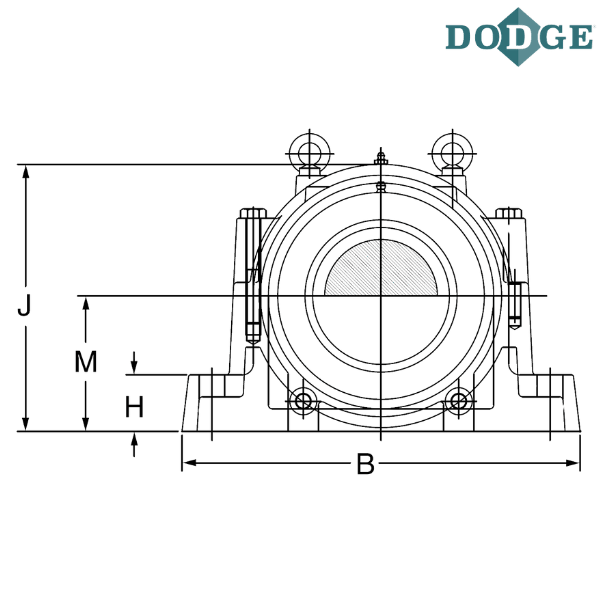

Overall Length (B) mm - 560
C (mm) - 210
H (mm) - 80
Bolt Center to Center Length (D) mm - 480
E (mm) - 120
Overall Height (J) mm - 375
Base to Center Height (M) mm - 190
K (mm) - 130
Bolt Size (S) mm - 24
S1 (mm) - 28
S2 (mm) - 34
Q (mm) - 83
T (mm) - 10
A (With DK End Cover) mm - 260
A (With TS Seal) mm - 284
A (With TT Seal) mm - 289
L1 (TS Seal) mm - 205
L2 (TT Seal) mm - 206

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
