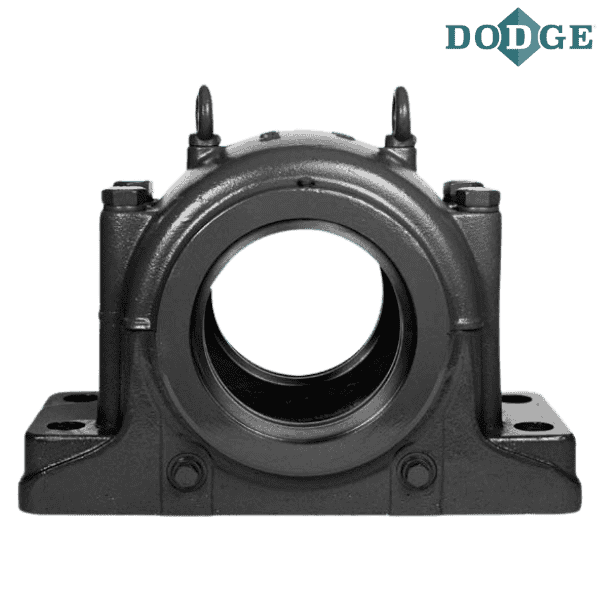

747607 DODGE - SDX 3148

Brand - DODGE
Item Number - 747607 DODGE - SDX 3148
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3148
Labyrinth Seal Item Number - 747686 DODGE - TS-23148
Triple-Tect Seal Item Number - 747726 DODGE - TT-23148
End Cover Item Number - 747753 DODGE - EC-SDX3148/3152/3052
Spherical Roller Bearing Item Number - 703873 DODGE - 23148BK.MB.C3
Fixing Ring Item Number - 747164 DODGE - SR 400x10
Fixing Ring Quantity - 2
Adapter Item Number - 719480 DODGE - H 3148
Weight (kg) - 180

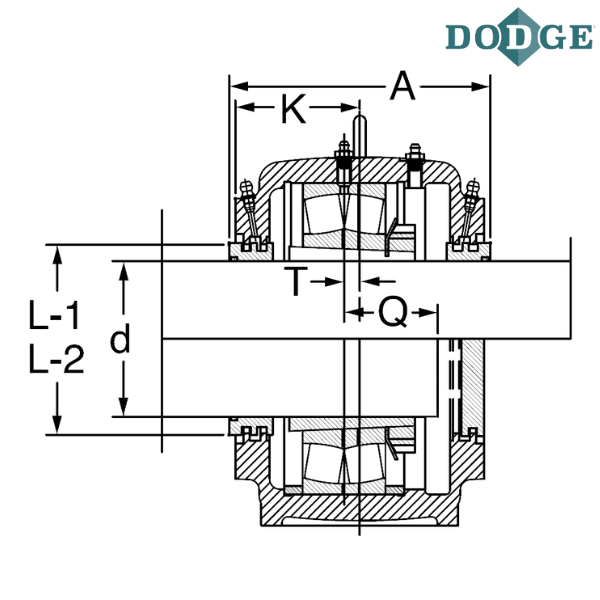

Shaft Diameter (d) mm - 220

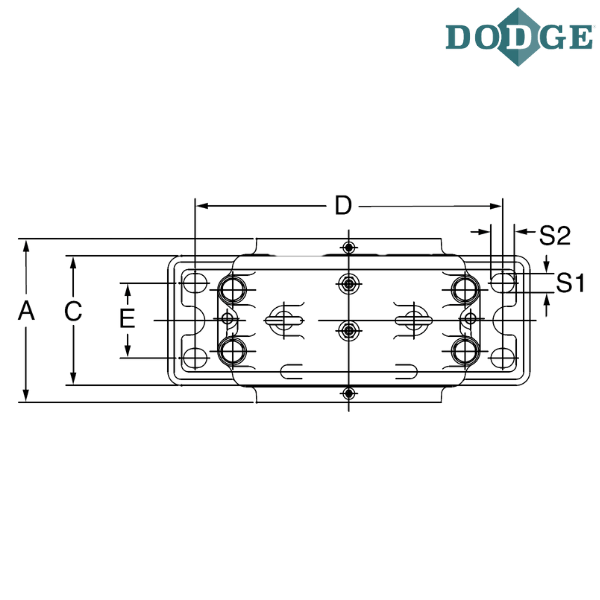

A (mm) - 310

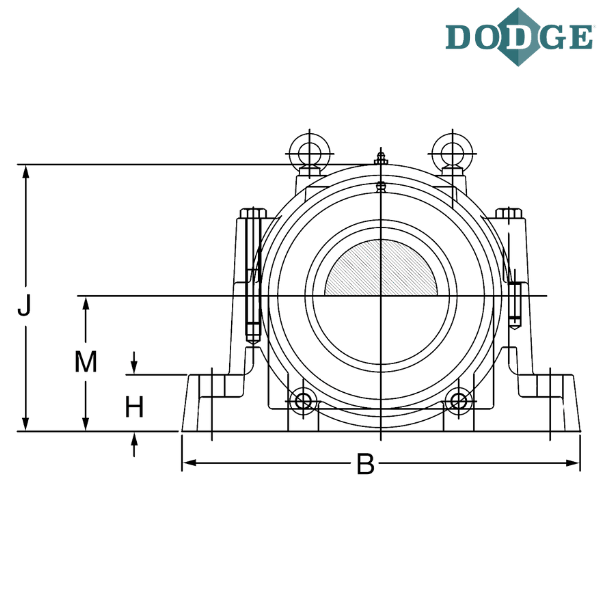

Overall Length (B) mm - 700
C (mm) - 260
H (mm) - 95
Bolt Center to Center Length (D) mm - 600
E (mm) - 150
Overall Height (J) mm - 475
Base to Center Height (M) mm - 240
K (mm) - 155
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 101
T (mm) - 12
A (With DK End Cover) mm - 310
A (With TS Seal) mm - 334
A (With TT Seal) mm - 339
L1 (TS Seal) mm - 275
L2 (TT Seal) mm - 290

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
