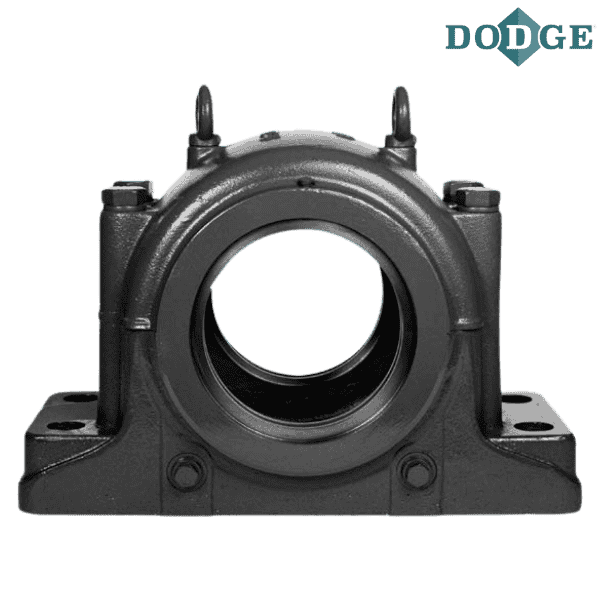

747612 DODGE - SDX 3160

Brand - DODGE
Item Number - 747612 DODGE - SDX 3160
Category - SDX 3100 (Plummer Blocks for bearings 23100K)
Description - SDX 3160
Labyrinth Seal Item Number - 747671 DODGE - TS-23060
Triple-Tect Seal Item Number - 747711 DODGE - TT-23060
End Cover Item Number - 747756 DODGE - EC-SDX3156/3160/3060
Spherical Roller Bearing Item Number - 703903 DODGE - 23160K.C3
Fixing Ring Item Number - 747173 DODGE - SR 500x10
Fixing Ring Quantity - 2
Adapter Item Number - 719491 DODGE - H 3160
Weight (kg) - 300

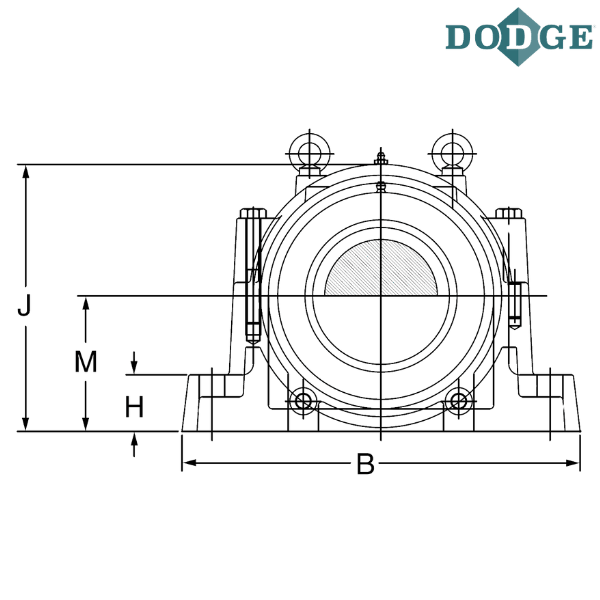

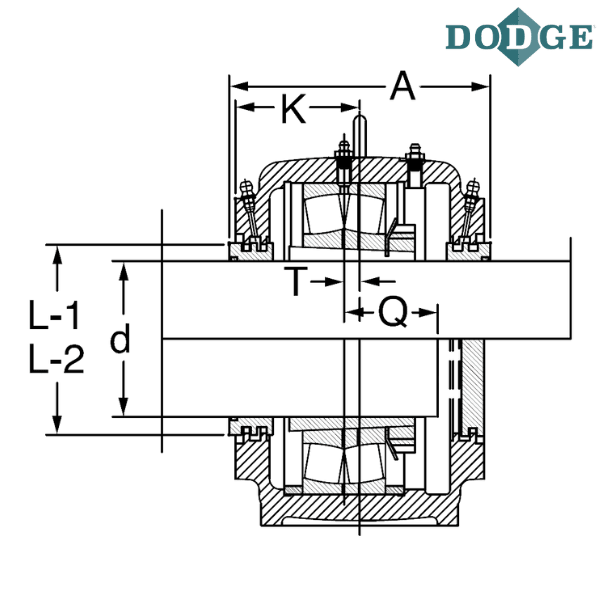

Shaft Diameter (d) mm - 280

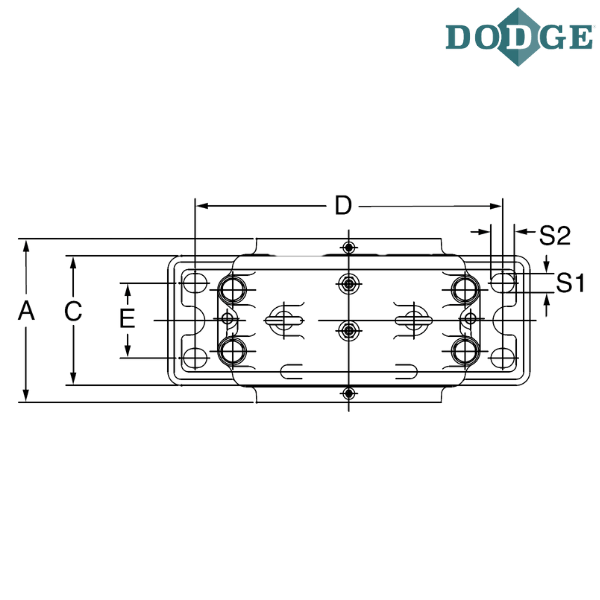

A (mm) - 350
Overall Length (B) mm - 830
C (mm) - 310
H (mm) - 110
Bolt Center to Center Length (D) mm - 710
E (mm) - 190
Overall Height (J) mm - 590
Base to Center Height (M) mm - 300
K (mm) - 175
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 120
T (mm) - 22
A (With DK End Cover) mm - 350
A (With TS Seal) mm - 374
A (With TT Seal) mm - 379
L1 (TS Seal) mm - 315
L2 (TT Seal) mm - 330

Notes :
SDX - Plummer Block to 320 mm

** Images are for representation purposes only
