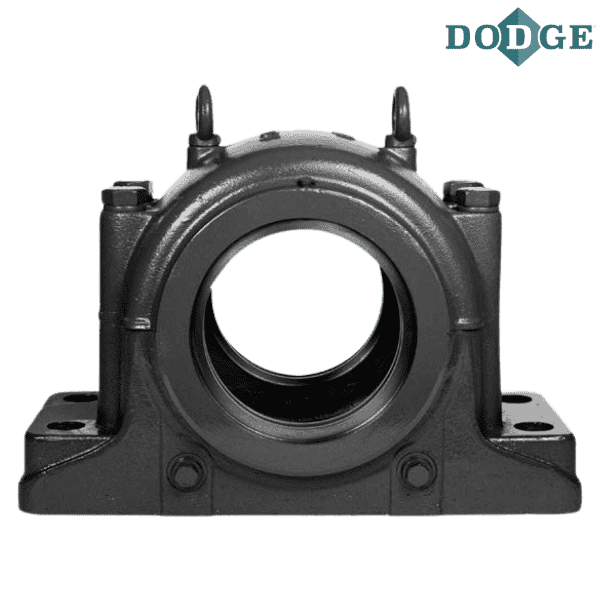

747626 DODGE - SDXD 3044

Brand - DODGE
Item Number - 747626 DODGE - SDXD 3044
Category - SDXD 3000 (Plummer Blocks for bearings 23000K)
Description - SDXD 3044
Labyrinth Seal Item Number - 747667 DODGE - TS-23044
Triple-Tect Seal Item Number - 747707 DODGE - TT-23044
End Cover Item Number - 747750 DODGE - EC-SDX3140/3144/3044
Spherical Roller Bearing Item Number - 703711 DODGE - 23044K.MB.C3
Fixing Ring Item Number - 747159 DODGE - SR 340x21
Fixing Ring Quantity - 2
Adapter Item Number - 719434 DODGE - H 3044
Weight (kg) - 135

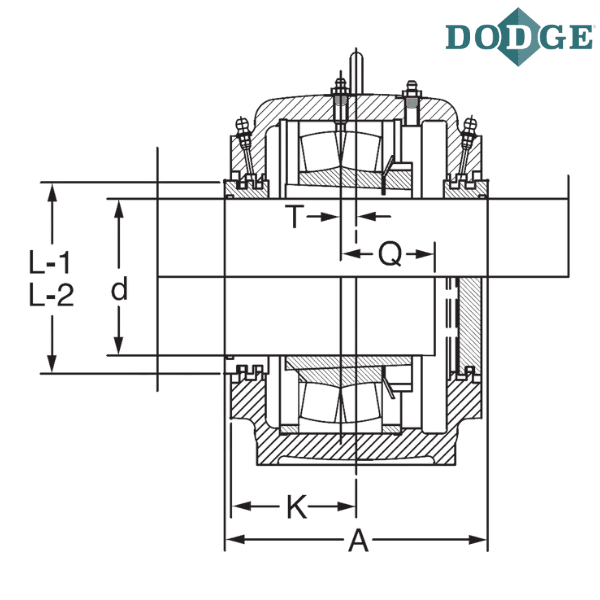

Shaft Diamter (d) mm - 200

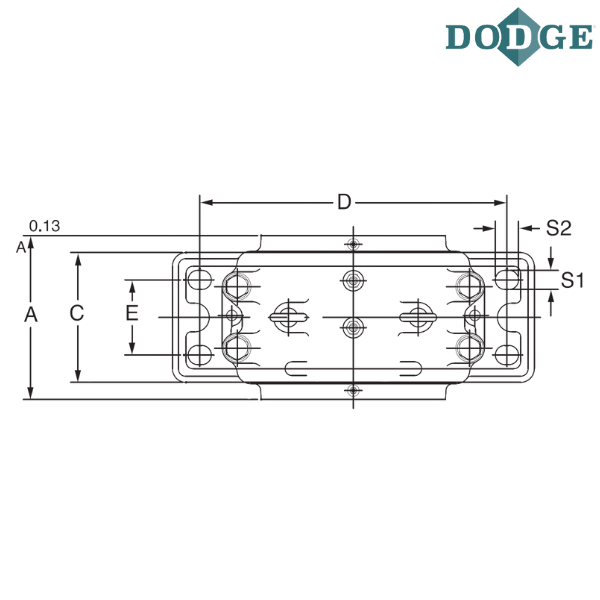

A (mm) - 280

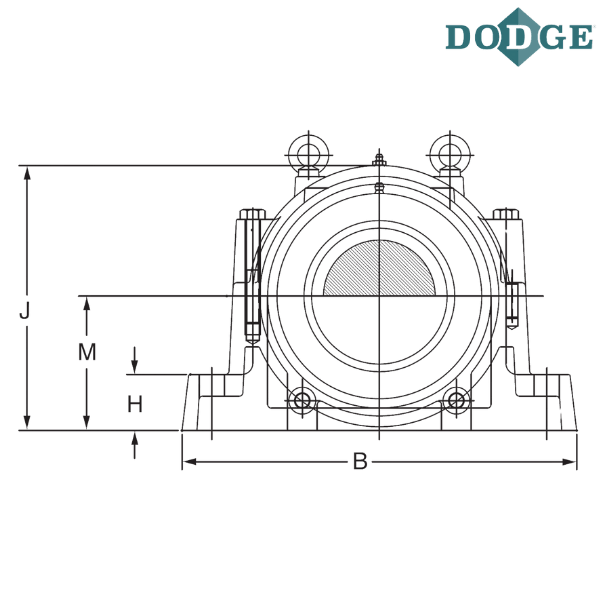

Overall Length (B) mm - 610
C (mm) - 230
H (mm) - 85
Bolt Center to Center Length (D) mm - 510
E (mm) - 130
Overall Height (J) mm - 410
Base to Center Height (M) mm - 210
K (mm) - 140
Bolt Size (S) mm - 30
S1 (mm) - 35
S2 (mm) - 42
Q (mm) - 85
T (mm) - 10
A (With End Cover DK) mm - 280
A (With TS Seal) mm - 294
A (With TT Seal) mm - 299
L1 (TS Seal) mm - 235
L2 (TT Seal) mm - 250

** Images are for representation purposes only
