747631 DODGE - SDXD 3152

Brand - DODGE
Item Number - 747631 DODGE - SDXD 3152
Category - SDXD 3100 (Plummer Blocks for bearings 23100K)
Description - SDXD 3152
Labyrinth Seal Item Number - 747669 DODGE - TS-23052
Triple-Tect Seal Item Number - 747709 DODGE - TT-23052
End Cover Item Number - 747753 DODGE - EC-SDX3148/3152/3052
Spherical Roller Bearing Item Number - 703890 DODGE - 23152K.MB.C3
Fixing Ring Item Number - 747168 DODGE - SR 440x10
Fixing Ring Quantity - 2
Adapter Item Number - 719485 DODGE - H 3152
Weight (kg) - 215

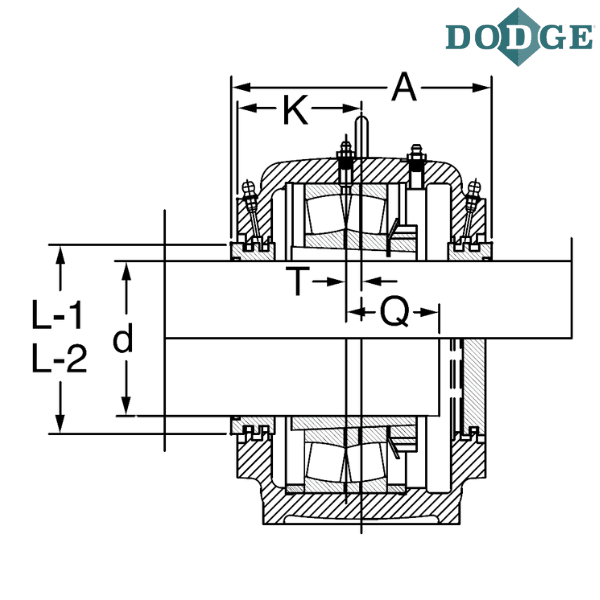

Shaft Diamter (d) mm - 240
A (mm) - 320

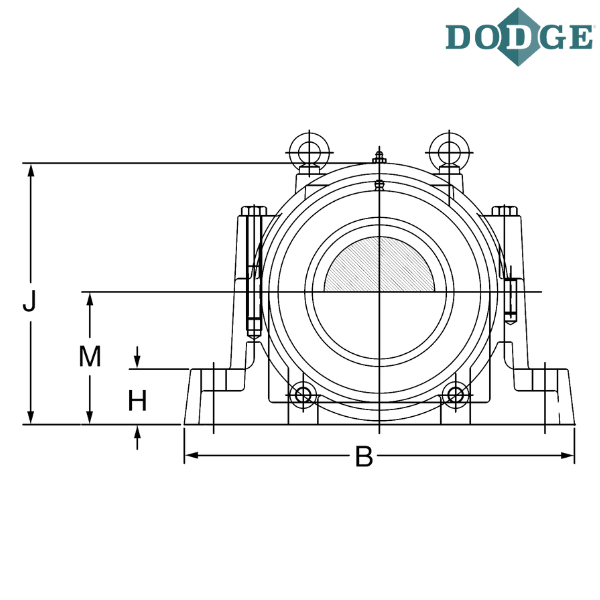

Overall Length (B) mm - 770
C (mm) - 280
H (mm) - 100

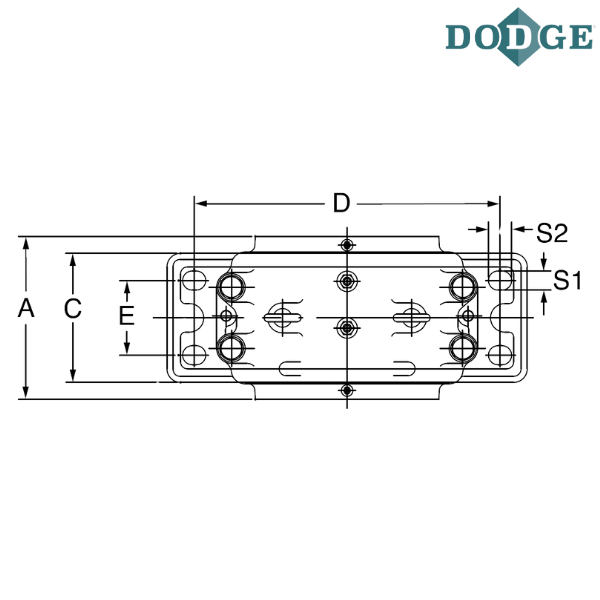

Bolt Center to Center Length (D) mm - 650
E (mm) - 160
Overall Height (J) mm - 515
Base to Center Height (M) mm - 260
K (mm) - 160
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 111
T (mm) - 13
A (With End Cover DK) mm - 320
A (With TS Seal) mm - 344
A (With TT Seal) mm - 349
L1 (TS Seal) mm - 275
L2 (TT Seal) mm - 290

** Images are for representation purposes only
