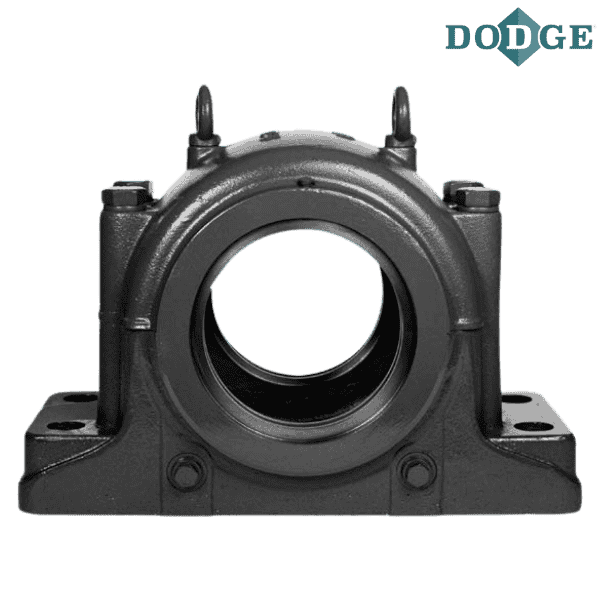

747633 DODGE - SDXD 3064

Brand - DODGE
Item Number - 747633 DODGE - SDXD 3064
Category - SDXD 3000 (Plummer Blocks for bearings 23000K)
Description - SDXD 3064
Labyrinth Seal Item Number - 747672 DODGE - TS-23064
Triple-Tect Seal Item Number - 747712 DODGE - TT-23064
End Cover Item Number - 747757 DODGE - EC-SDX3064
Spherical Roller Bearing Item Number - 703739 DODGE - 23064K.C3
Fixing Ring Item Number - 747172 DODGE - SR 480x30
Fixing Ring Quantity - 2
Adapter Item Number - 719446 DODGE - H 3064
Weight (kg) - 330

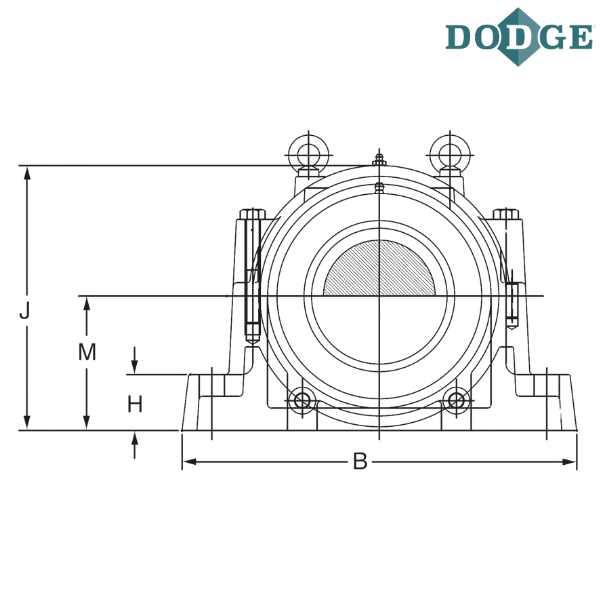

Shaft Diamter (d) mm - 300

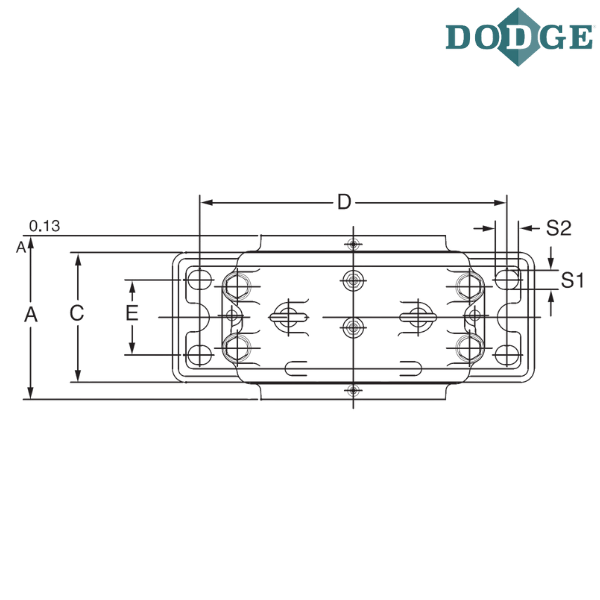

A (mm) - 350
Overall Length (B) mm - 830
C (mm) - 310
H (mm) - 110
Bolt Center to Center Length (D) mm - 710
E (mm) - 190
Overall Height (J) mm - 590
Base to Center Height (M) mm - 300

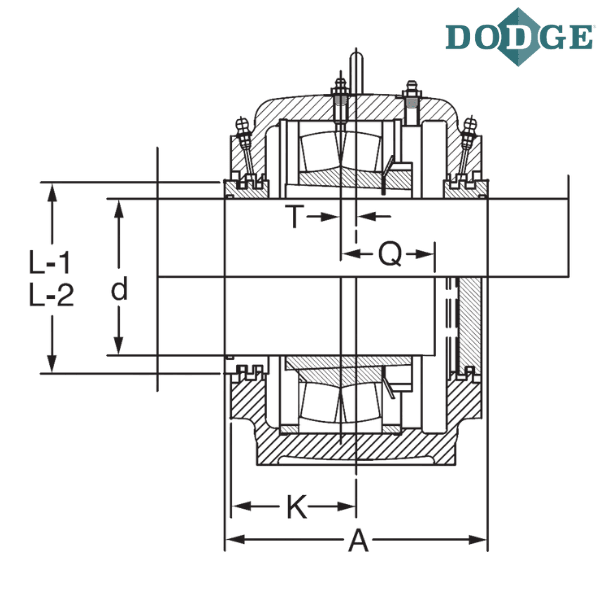

K (mm) - 175
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 116
T (mm) - 22
A (With End Cover DK) mm - 350
A (With TS Seal) mm - 358
A (With TT Seal) mm - 363
L1 (TS Seal) mm - 335
L2 (TT Seal) mm - 350

** Images are for representation purposes only
