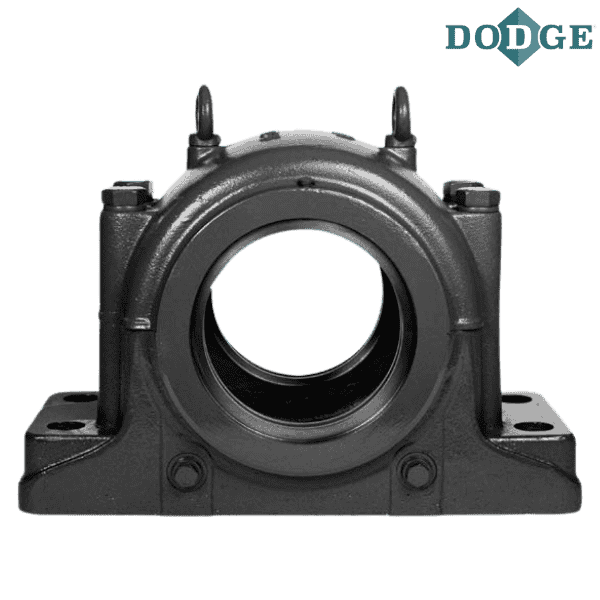

747635 DODGE - SDXD 3068

Brand - DODGE
Item Number - 747635 DODGE - SDXD 3068
Category - SDXD 3000 (Plummer Blocks for bearings 23000K)
Description - SDXD 3068
Labyrinth Seal Item Number - 747673 DODGE - TS-23068
Triple-Tect Seal Item Number - 747713 DODGE - TT-23068
End Cover Item Number - 747759 DODGE - EC-SDX3068
Fixing Ring Item Number - 747174 DODGE - SR 520x32
Fixing Ring Quantity - 2
Adapter Item Number - 719448 DODGE - H 3068
Weight (kg) - 420

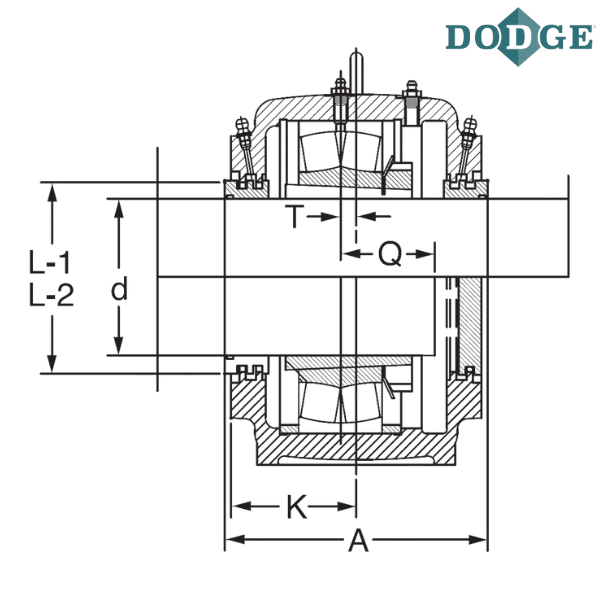

Shaft Diamter (d) mm - 320

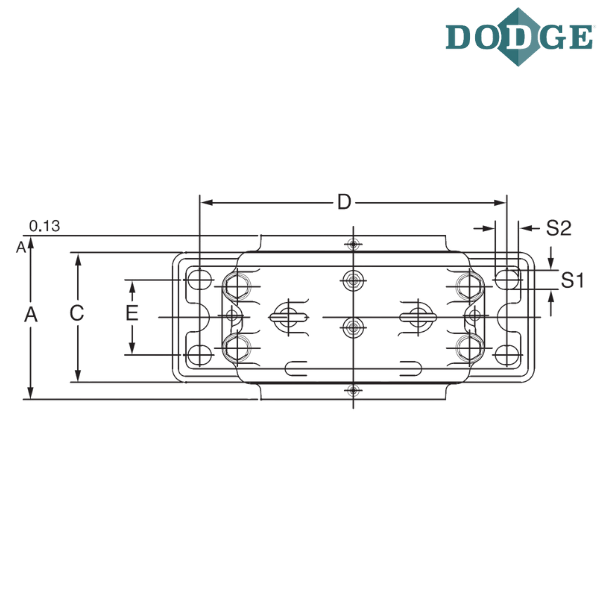

A (mm) - 370

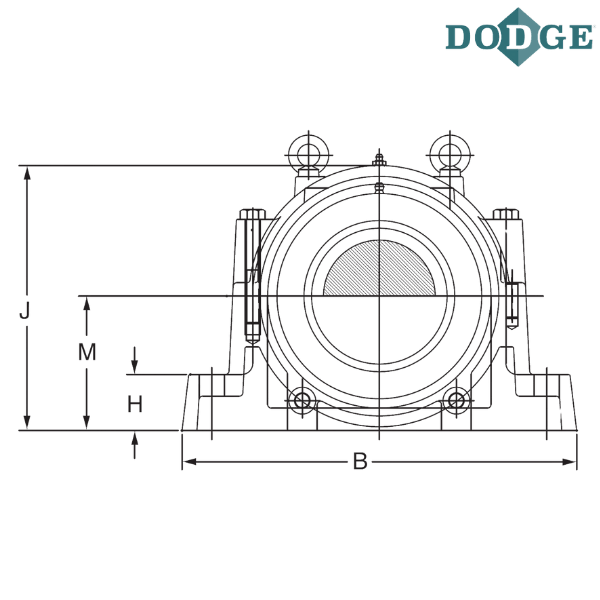

Overall Length (B) mm - 880
C (mm) - 330
H (mm) - 115
Bolt Center to Center Length (D) mm - 750
E (mm) - 200
Overall Height (J) mm - 630
Base to Center Height (M) mm - 320
K (mm) - 185
Bolt Size (S) mm - 36
S1 (mm) - 42
S2 (mm) - 50
Q (mm) - 123.5
T (mm) - 23
A (With End Cover DK) mm - 370
A (With TS Seal) mm - 378
A (With TT Seal) mm - 383
L1 (TS Seal) mm - 355
L2 (TT Seal) mm - 370

** Images are for representation purposes only
