747900 DODGE - P2B507-ISN-102 FR

Brand - DODGE
Item Number - 747900 DODGE - P2B507-ISN-102 FR
Category - ISN Plummer Blocks With Trident Seals (Fixed Bearing)
Series - 507
Shaft Size (inch) - 1.125
Description - P2B507-ISN-102 FR
Part Number (insert) - 071983
Description (Insert) - ISN 507-22208 FR
Sleeve (Part Number) - 69286
Sleeve (Description) - ADPTR-IP-22208-102

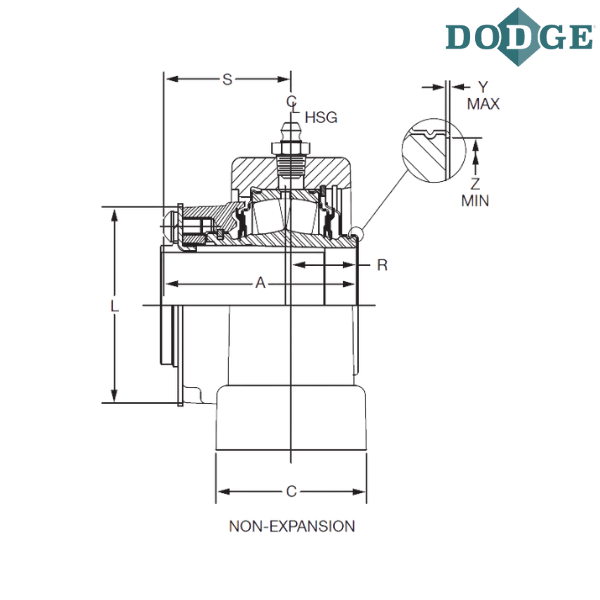

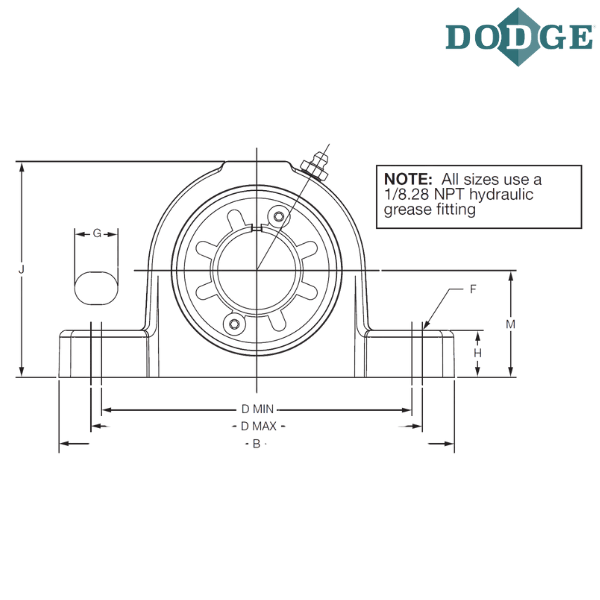

Length Through Bore (A) mm - 66.7
Overall Length (B) mm - 184.9
Width (C) mm - 52
Bolt to Bolt Minimum Distance (D min) mm - 145
Bolt to Bolt Maximum Distance (D max) mm - 155
F-Bolt Diameter - M12
G (mm) - 20
H (mm) - 22
Overall Height (J) mm - 100.9
L (mm) - 67.6
Base to Center Height (M) mm - 50
R (mm) - 22.6
S (mm) - 44.1

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
F - Non-Expansion
R - Trident Rubbing Seal

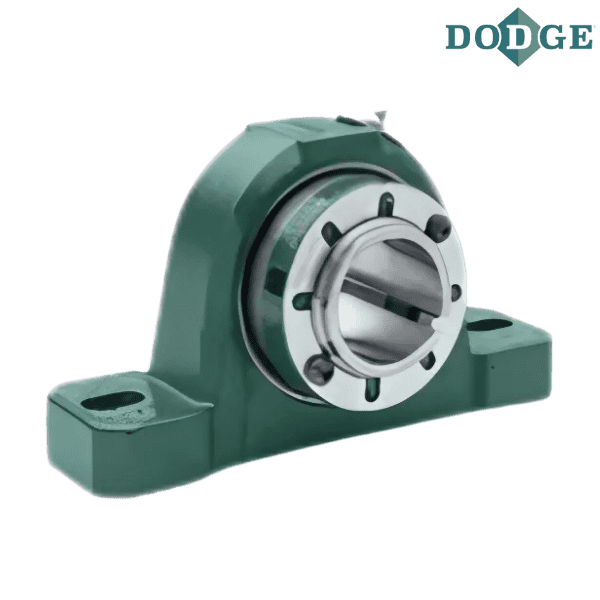

** Images are for representation purposes only
