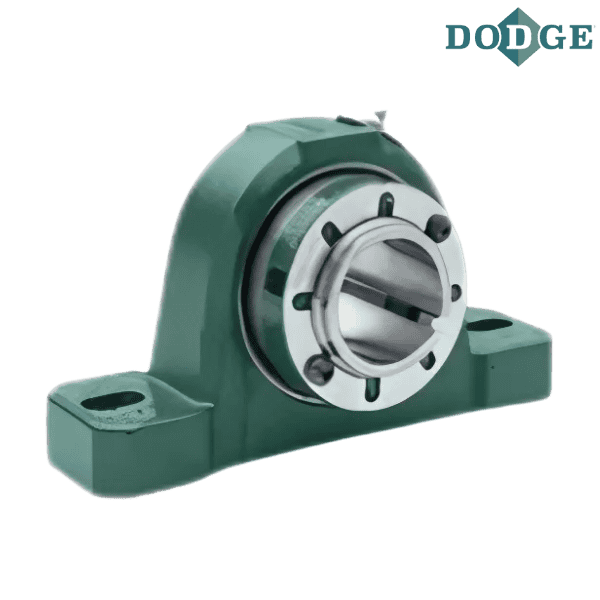

747948 DODGE - P2B515-ISN-207 FR

Brand - DODGE
Item Number - 747948 DODGE - P2B515-ISN-207 FR
Category - ISN Plummer Blocks With Trident Seals (Fixed Bearing)
Series - 515
Shaft Size (inch) - 2.4375
Description - P2B515-ISN-207 FR
Part Number (insert) - 071990
Description (Insert) - ISN 515-22215 FR
Sleeve (Part Number) - 64072
Sleeve (Description) - ADPTR-ISN-22215-207

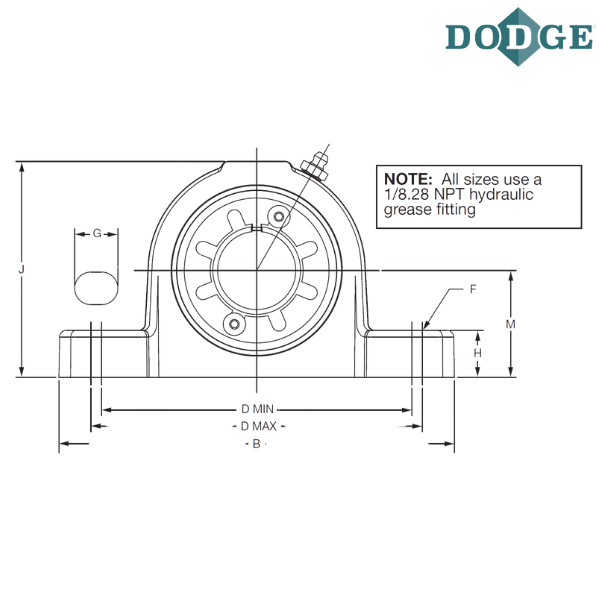

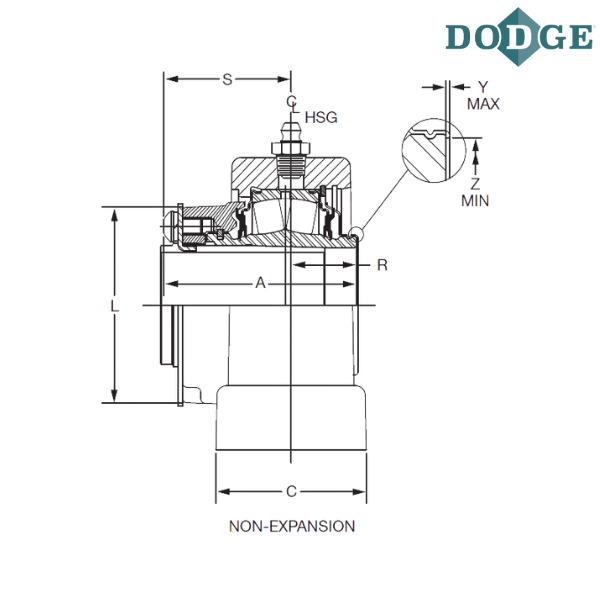

Length Through Bore (A) mm - 88.9
Overall Length (B) mm - 280.1
Width (C) mm - 80.1
Bolt to Bolt Minimum Distance (D min) mm - 215
Bolt to Bolt Maximum Distance (D max) mm - 236
F-Bolt Diameter - M16
G (mm) - 28.5
H (mm) - 30
Overall Height (J) mm - 156
L (mm) - 106.7
Base to Center Height (M) mm - 80
R (mm) - 31.4
S (mm) - 57.5

Notes :
P2B - Plummer Block, 2-Bolt Base, Cast Iron
5XX - Describes the associated DIN - SN Pillow block housing size
ISN - Style w/Imperial locking mechanism
F - Non-Expansion
R - Trident Rubbing Seal

** Images are for representation purposes only
