Description
Brand - FAG
Item number - 81180-M FAG

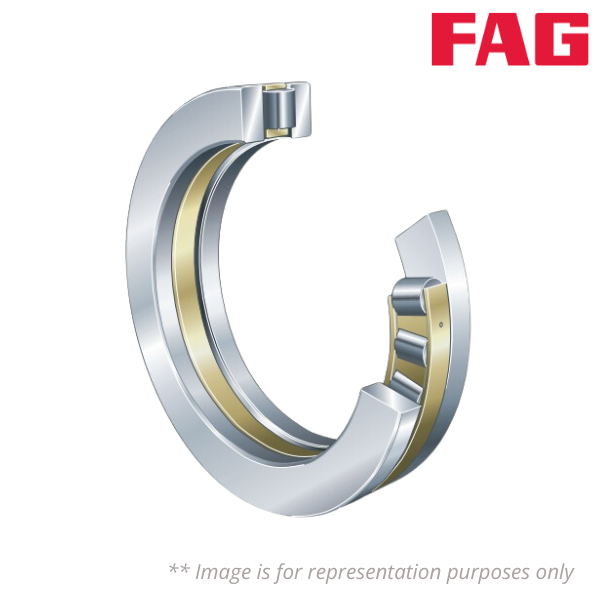

Category - Single Direction Axial Cylindrical Roller Bearing, Single Row
Weight (Kg) - 24.7

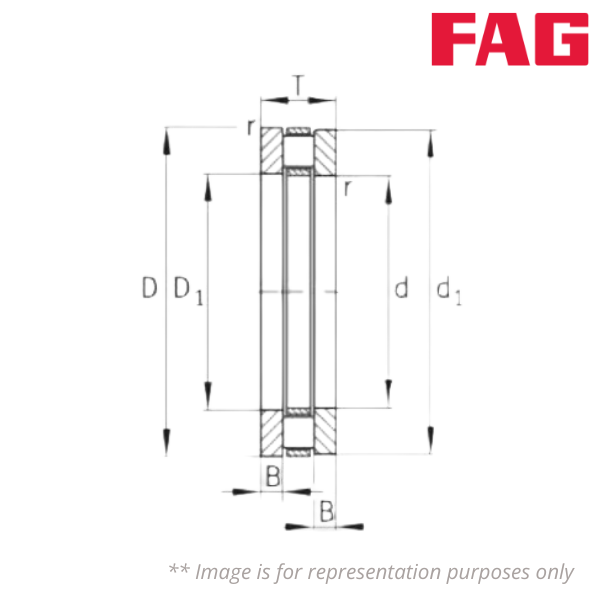

Inner Diameter (d) mm - 400
Outer Diameter (D) mm - 480
Height (T) mm - 65
Inner Width (B) mm - 20
Minimum Chamfer Dimension (r) mm - 2
Bore Diameter Housing Washer (D1) mm - 404
Rip Diameter Shaft Washer (d1) mm - 476
Basic Dynamic Load Rating, Axial (Ca) kN - 1200
Basic Static Load Rating, Axial (C0a) kN - 5700
Fatigue Load Limit (Cua) kN - 435
Limiting Speed (nG) rpm - 650
Reference Speed (nB) rpm - 224
