Description
Brand - FAG
Item number - 812/500-M FAG

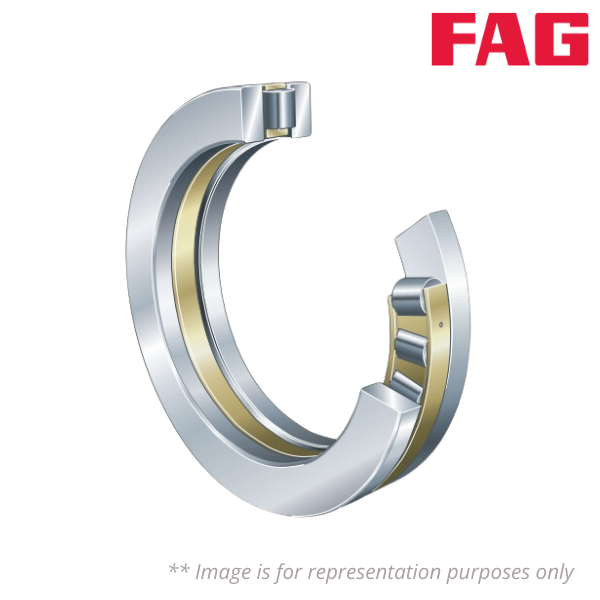

Category - Single Direction Axial Cylindrical Roller Bearing, Single Row
Weight (Kg) - 144

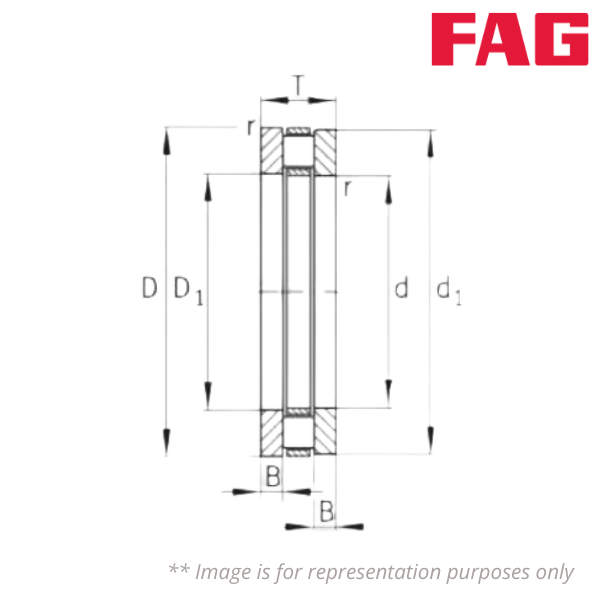

Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 670
Height (T) mm - 135
Inner Width (B) mm - 39.5
Minimum Chamfer Dimension (r) mm - 5
Bore Diameter Housing Washer (D1) mm - 505
Rip Diameter Shaft Washer (d1) mm - 665
Basic Dynamic Load Rating, Axial (Ca) kN - 4250
Basic Static Load Rating, Axial (C0a) kN - 18000
Fatigue Load Limit (Cua) kN - 1230
Limiting Speed (nG) rpm - 480
Reference Speed (nB) rpm - 135
