82587/82951CD TIMKEN

Brand - TIMKEN
Item Number - 82587/82951CD TIMKEN
Also Known As - 82587 - 82951CD
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 149.225
Bore Diameter (d) inch - 5.875
Outer Diameter (D) mm - 241.3
Outer Diameter (D) inch - 9.5
Bearing Width across Cones (T) mm - 131.762
Bearing Width across Cones (T) inch - 5.1875
Double Outer Ring Width (C) mm - 106.362
Double Outer Ring Width (C) inch - 4.1875
Dynamic Load Rating (C1) N - 897000
Dynamic Load Rating (C1) lbf - 202000
Factor (e) - 0.44
Factor (Y1) - 1.53
Factor (Y2) - 2.27
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 134000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 30000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 101000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 22700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 232000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 52300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.32

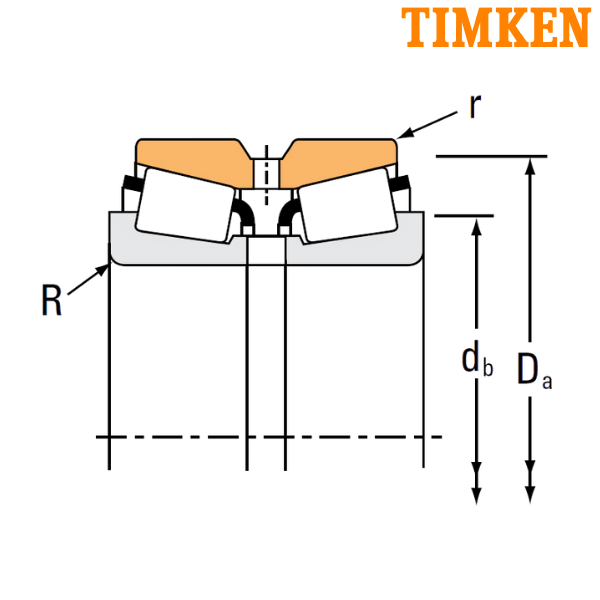

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Backface Backing Diameter (db) mm - 169
Cone Backface Backing Diameter (db) inch - 6.65
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 226
Cup Frontface Backing Diameter (Da) inch - 8.9

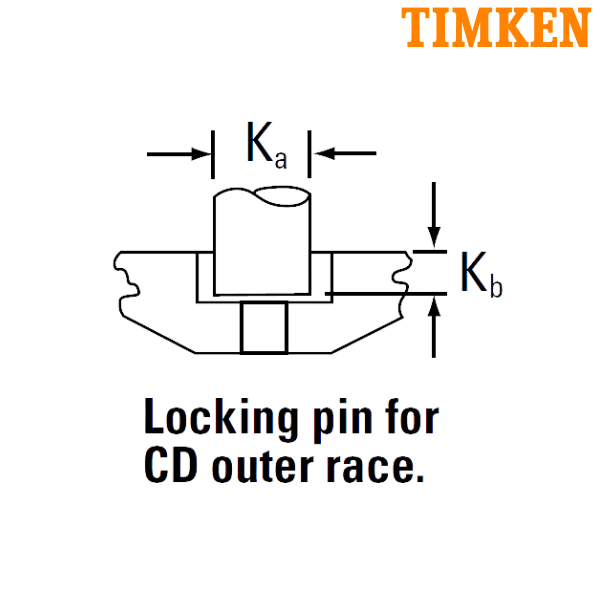

PIn (Ka) mm - 22.23
PIn (Ka) inch - 0.88
PIn (Kb) mm - 8.73
PIn (Kb) inch - 0.34
Geometry Factor (G1) - 460.5
Geometry Factor (G2) - 81.1
Geometry Factor (Cg) - 0.1405
Bearing Weight (kg) - 20.98
Bearing Weight (lbs) - 46.27
Inner Part Number - 82587
Outer Part Number - 82951CD

** Images are for representation purposes only
