99587/99102CD TIMKEN

Brand - TIMKEN
Item Number - 99587/99102CD TIMKEN
Also Known As - 99587 - 99102CD
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 149.225
Bore Diameter (d) inch - 5.875
Outer Diameter (D) mm - 254
Outer Diameter (D) inch - 10
Bearing Width across Cones (T) mm - 149.225
Bearing Width across Cones (T) inch - 5.875
Double Outer Ring Width (C) mm - 111.125
Double Outer Ring Width (C) inch - 4.375
Dynamic Load Rating (C1) N - 1150000
Dynamic Load Rating (C1) lbf - 258000
Factor (e) - 0.41
Factor (Y1) - 1.66
Factor (Y2) - 2.47
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 171000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 38500
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 119000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 26800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 298000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 67000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.43

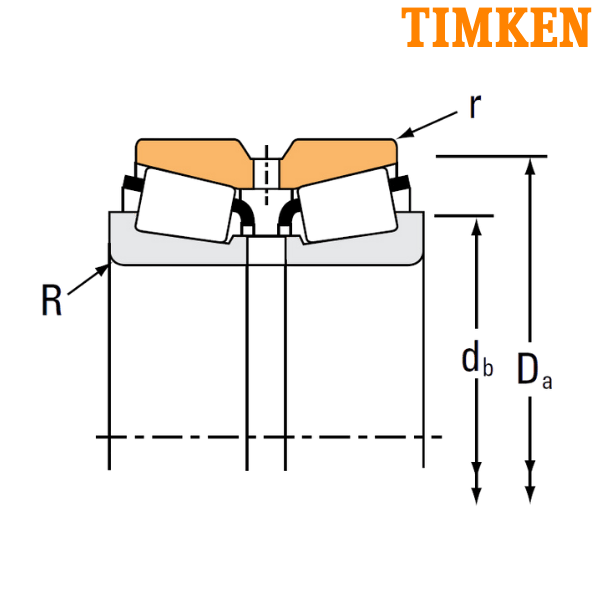

Maximum Shaft Fillet Radius (R) mm - 7
Maximum Shaft Fillet Radius (R) inch - 0.28
Cone Backface Backing Diameter (db) mm - 181
Cone Backface Backing Diameter (db) inch - 7.13
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 238
Cup Frontface Backing Diameter (Da) inch - 9.37

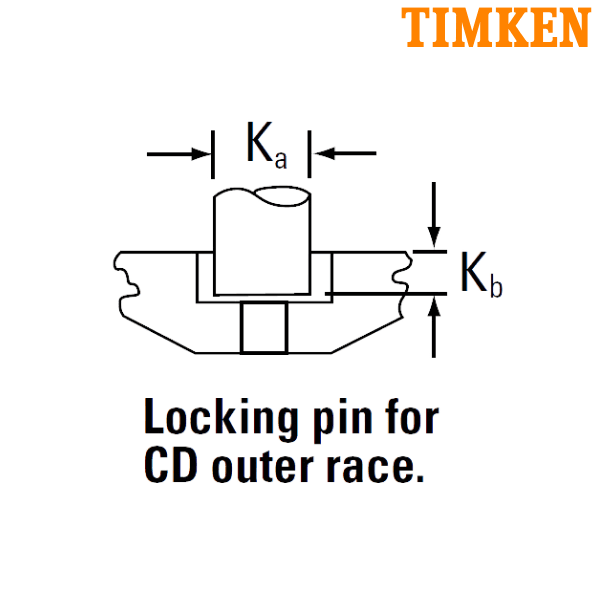

PIn (Ka) mm - 22.23
PIn (Ka) inch - 0.88
PIn (Kb) mm - 7.95
PIn (Kb) inch - 0.31
Geometry Factor (G1) - 555.5
Geometry Factor (G2) - 73.5
Geometry Factor (Cg) - 0.1459
Bearing Weight (kg) - 27.99
Bearing Weight (lbs) - 61.69
Inner Part Number - 99587
Outer Part Number - 99102CD

** Images are for representation purposes only
