99587D/99100 TIMKEN

Brand - TIMKEN
Item Number - 99587D/99100 TIMKEN
Also Known As - 99587D - 99100
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 149.225
Bore Diameter (d) inch - 5.875
Outer Diameter (D) mm - 254
Outer Diameter (D) inch - 10
Bearing Width across Cups (T) mm - 120.65
Bearing Width across Cups (T) inch - 4.75
Double Cone Width (B) mm - 120.65
Double Cone Width (B) inch - 4.75
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 1150000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 258000
Factor (e) - 0.4
Factor (Y1) - 1.7
Factor (Y2) - 2.5
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 171000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 38500
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 119000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 26800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 298000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 67000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.43
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 167
Cone Frontface Backing Diameter (da) inch - 6.57
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Backface Backing Diameter (Db) mm - 227
Cup Backface Backing Diameter (Db) inch - 8.94
Geometry Factor (G1) - 555.5
Geometry Factor (G2) - 73.5
Geometry Factor (Cg) - 0.1459
Weight (kg) - 25.95
Weight (lbs) - 57.18
Inner Part Number - 99587D
Outer Part Number - 99100
TDI - Double Inner Ring

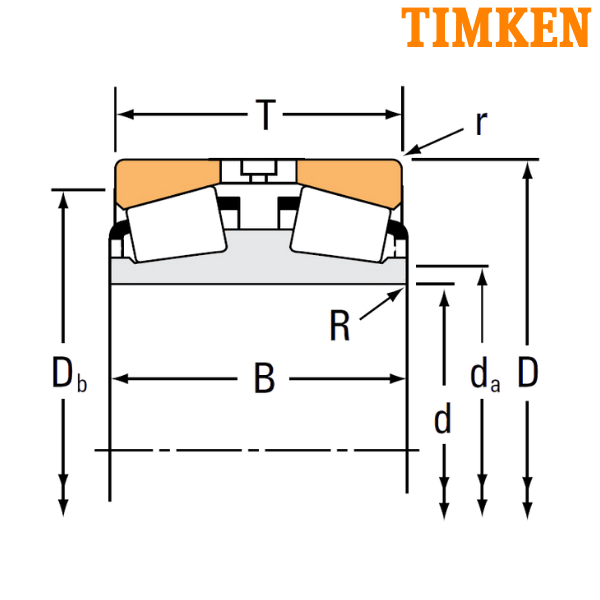

** Images are for representation purposes only
