Description
Brand - NADELLA
Item Number - ARZ 10 20 35.4 NADELLA

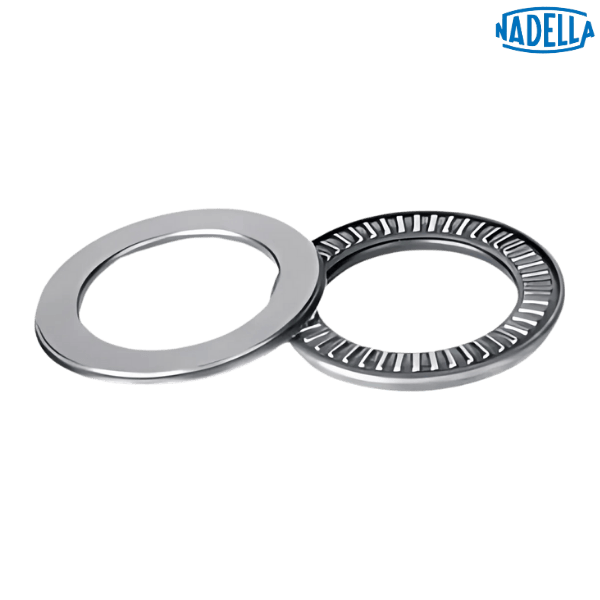

Category - Roller Thrust Bearing with Thrust Plate (Light Series)

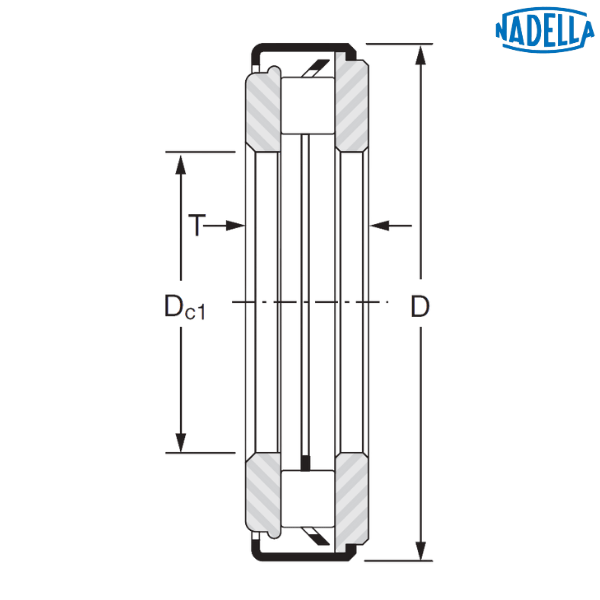

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 35.4 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 22 kN
Static Load Rating (C0) - 54 kN
Speed Limit with Oil - 9000 rpm
Weight - 0.038 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
Item Number - ARZ 10 20 35.4 NADELLA
Category - Roller Thrust Bearing with Thrust Plate (Light Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 35.4 mm
Width (T) - 10 mm
Dynamic Load Rating (C) - 22 kN
Static Load Rating (C0) - 54 kN
Speed Limit with Oil - 9000 rpm
Weight - 0.038 kg
Description of Prefix :
ARZ - Roller thrust bearing with retained plate
♦ ♦ Images are for representation purposes only
