Description
Brand - NADELLA
Item Number - AX 27 44 NADELLA
Category - Needle Thrust Bearing (Thin Series)

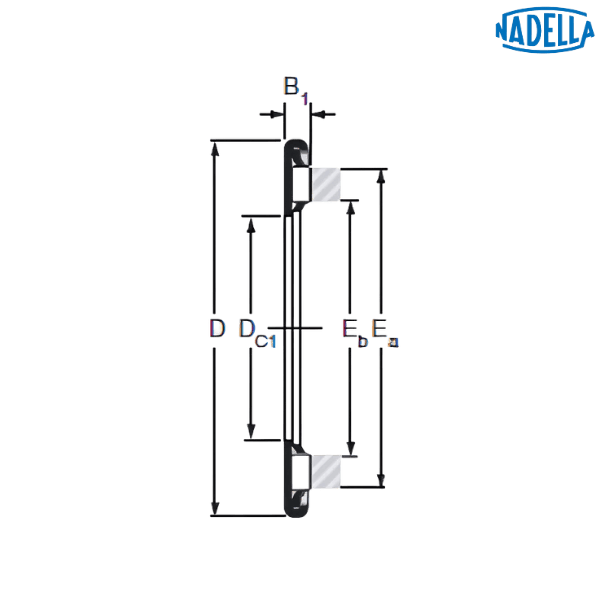

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 27 mm
Inner Diameter (Dc1) - 27 mm
Outer Diameter (D) - 44 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 30 mm
Dimension (Ea) - 39.6 mm
Dynamic Load Rating (C) - 13.7 kN
Static Load Rating (C0) - 52 kN
Speed Rating with Oil - 7200 rpm
Weight - 0.012 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 27 44
Inner Ring (d) - 27 mm
Outer Ring (d1) - 43.7 mm
Width (h) - 0.8 mm
Weight - 0.006 kg
Description of Prefix :
AX - Needle thrust bearing

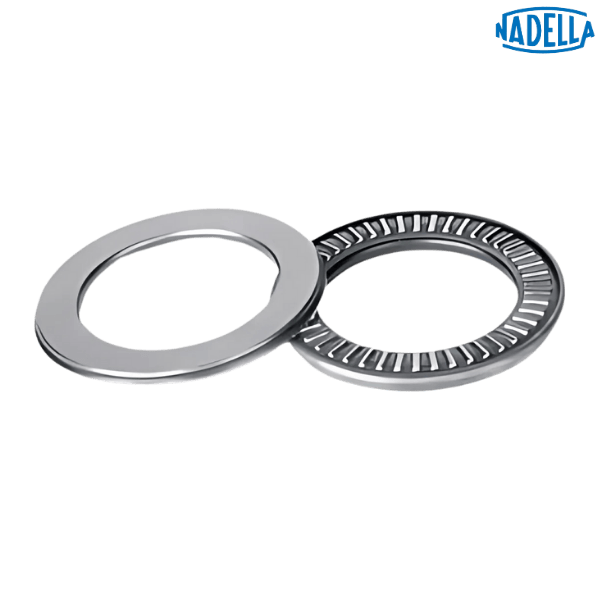

♦ ♦ Images are for representation purposes only
Item Number - AX 27 44 NADELLA
Category - Needle Thrust Bearing (Thin Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 27 mm
Inner Diameter (Dc1) - 27 mm
Outer Diameter (D) - 44 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 30 mm
Dimension (Ea) - 39.6 mm
Dynamic Load Rating (C) - 13.7 kN
Static Load Rating (C0) - 52 kN
Speed Rating with Oil - 7200 rpm
Weight - 0.012 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 27 44
Inner Ring (d) - 27 mm
Outer Ring (d1) - 43.7 mm
Width (h) - 0.8 mm
Weight - 0.006 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
