Description
Brand - NADELLA
Item Number - AX 45 65 NADELLA
Category - Needle Thrust Bearing (Thin Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 45 mm
Inner Diameter (Dc1) - 45 mm
Outer Diameter (D) - 65 mm
Width (B1) - 2.8 mm
Dimension (Eb) - 48 mm
Dimension (Ea) - 59.9 mm
Dynamic Load Rating (C) - 21.8 kN
Static Load Rating (C0) - 109 kN
Speed Rating with Oil - 4500 rpm
Weight - 0.025 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thin Series) - CP 45 65
Inner Ring (d) - 45 mm
Outer Ring (d1) - 64.4 mm
Width (h) - 0.8 mm
Weight - 0.01 kg
Description of Prefix :
AX - Needle thrust bearing

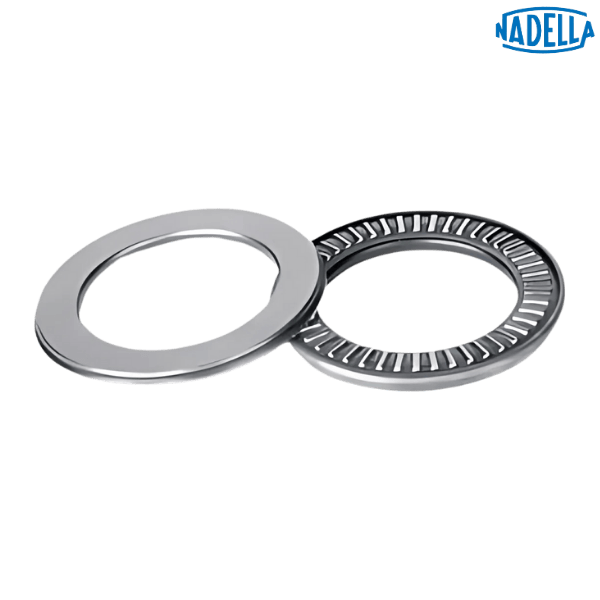

♦ ♦ Images are for representation purposes only
