Description
Brand - NADELLA
Item Number - AX 6 55 78 NADELLA
Category - Needle Thrust Bearing (Thick Series)

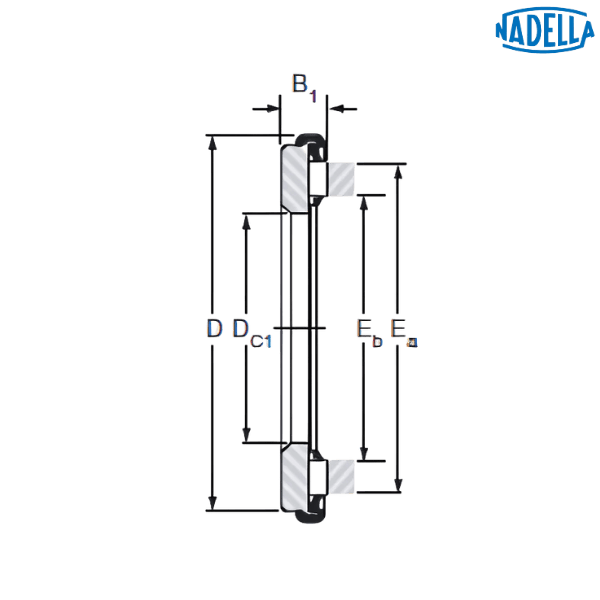

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 55 mm
Inner Diameter (Dc1) - 55 mm
Outer Diameter (D) - 78 mm
Width (B1) - 6 mm
Dimension (Eb) - 58.4 mm
Dimension (Ea) - 72.5 mm
Dynamic Load Rating (C) - 28.5 kN
Static Load Rating (C0) - 164 kN
Speed Rating with Oil - 3800 rpm
Weight - 0.089 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 4 55 78
Inner Ring (d) - 55 mm
Outer Ring (d1) - 77.4 mm
Width (h) - 4 mm
Weight - 0.069 kg
Description of Prefix :
AX - Needle thrust bearing

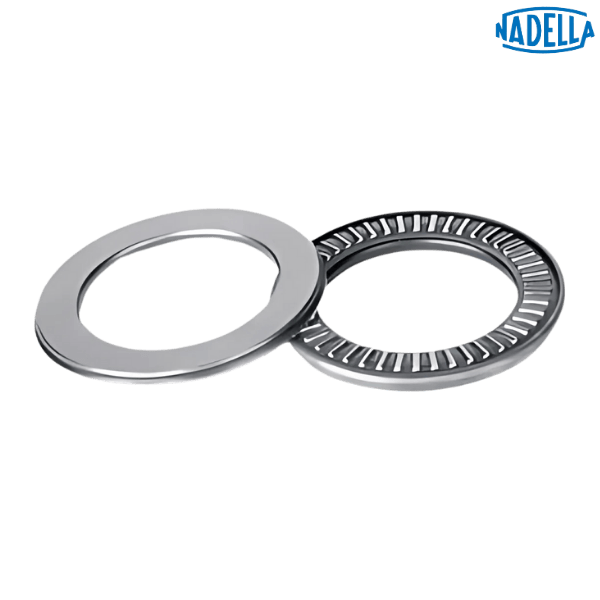

♦ ♦ Images are for representation purposes only
