Description
Brand - NADELLA
Item Number - AX 6 60 85 NADELLA
Category - Needle Thrust Bearing (Thick Series)

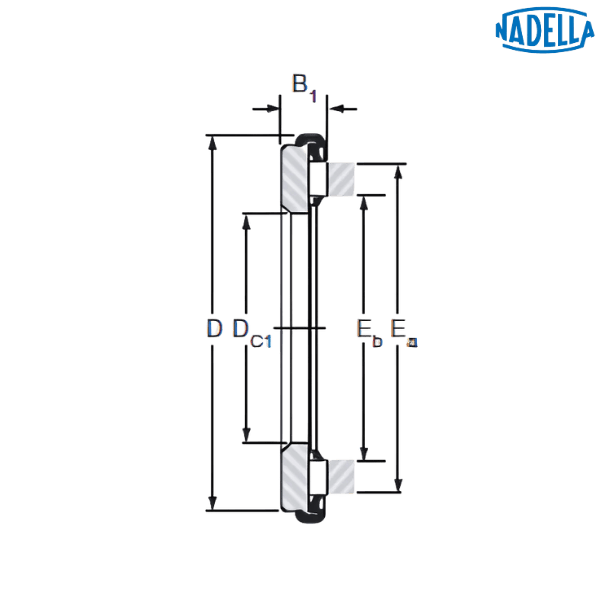

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 60 mm
Inner Diameter (Dc1) - 60 mm
Outer Diameter (D) - 85 mm
Width (B1) - 6 mm
Dimension (Eb) - 63.5 mm
Dimension (Ea) - 79.2 mm
Dynamic Load Rating (C) - 31.5 kN
Static Load Rating (C0) - 193 kN
Speed Rating with Oil - 3500 rpm
Weight - 0.106 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 4 60 85
Inner Ring (d) - 60 mm
Outer Ring (d1) - 84.3 mm
Width (h) - 4 mm
Weight - 0.083 kg
Description of Prefix :
AX - Needle thrust bearing

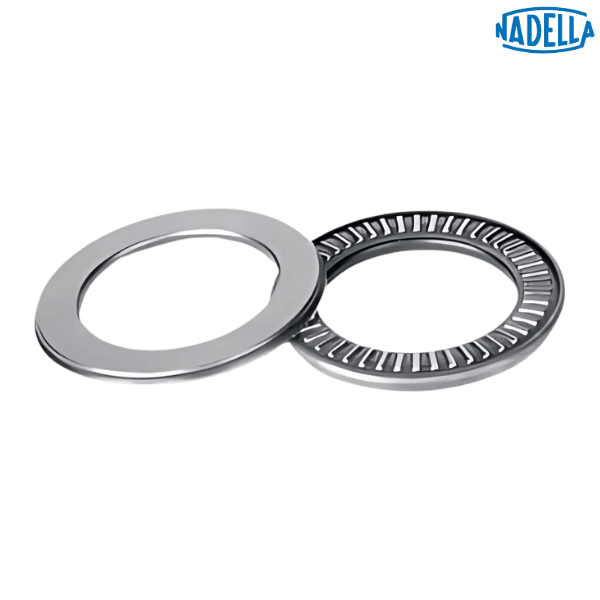

♦ ♦ Images are for representation purposes only
Item Number - AX 6 60 85 NADELLA
Category - Needle Thrust Bearing (Thick Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 60 mm
Inner Diameter (Dc1) - 60 mm
Outer Diameter (D) - 85 mm
Width (B1) - 6 mm
Dimension (Eb) - 63.5 mm
Dimension (Ea) - 79.2 mm
Dynamic Load Rating (C) - 31.5 kN
Static Load Rating (C0) - 193 kN
Speed Rating with Oil - 3500 rpm
Weight - 0.106 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 4 60 85
Inner Ring (d) - 60 mm
Outer Ring (d1) - 84.3 mm
Width (h) - 4 mm
Weight - 0.083 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
