Description
Brand - NADELLA
Item Number - AX 8 90 120 NADELLA
Category - Needle Thrust Bearing (Thick Series)

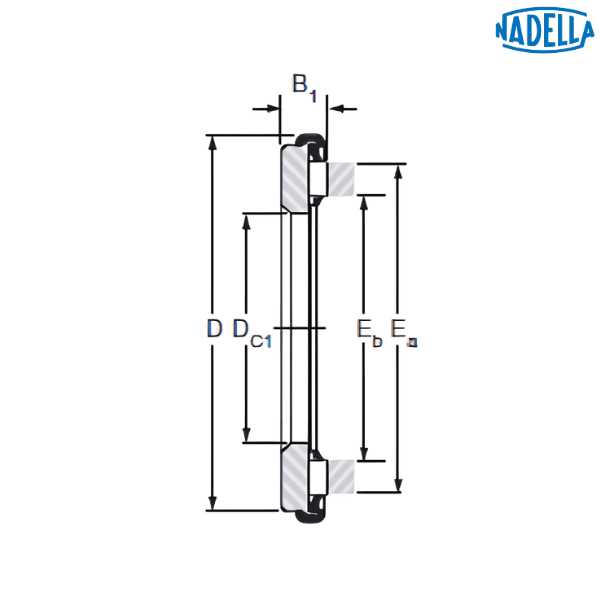

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 90 mm
Inner Diameter (Dc1) - 90 mm
Outer Diameter (D) - 120 mm
Width (B1) - 8 mm
Dimension (Eb) - 94.2 mm
Dimension (Ea) - 112.9 mm
Dynamic Load Rating (C) - 59 kN
Static Load Rating (C0) - 360 kN
Speed Rating with Oil - 2400 rpm
Weight - 0.238 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 5 90 120
Inner Ring (d) - 90 mm
Outer Ring (d1) - 118.8 mm
Width (h) - 5 mm
Weight - 0.173 kg
Description of Prefix :
AX - Needle thrust bearing

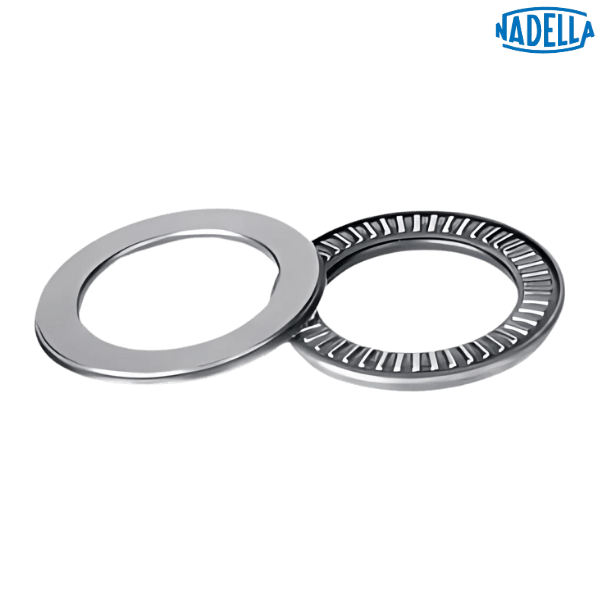

♦ ♦ Images are for representation purposes only
Item Number - AX 8 90 120 NADELLA
Category - Needle Thrust Bearing (Thick Series)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter (∅) - 90 mm
Inner Diameter (Dc1) - 90 mm
Outer Diameter (D) - 120 mm
Width (B1) - 8 mm
Dimension (Eb) - 94.2 mm
Dimension (Ea) - 112.9 mm
Dynamic Load Rating (C) - 59 kN
Static Load Rating (C0) - 360 kN
Speed Rating with Oil - 2400 rpm
Weight - 0.238 kg
Compatible Needle Thrust Plate :
Needle Thrust Plate (Thick Series) - CP 5 90 120
Inner Ring (d) - 90 mm
Outer Ring (d1) - 118.8 mm
Width (h) - 5 mm
Weight - 0.173 kg
Description of Prefix :
AX - Needle thrust bearing
♦ ♦ Images are for representation purposes only
