| Outer Diameter | 692.15 mm |
| Height | 233.629 mm |
| Feature Diameter | 590.55 mm |
| Bearing Weight | 603.0 kg |
| Basic Static Load Rating, Axial | 52490000.0 N |
| Outer Diameter Of Shaft Washer | 689.762 mm |
| Shaft Washer Height | 38.1 mm |
| Spherical Radius | 1524.0 mm |
| Maximum Housing Chamfer Diameter | 6.0 mm |
Description

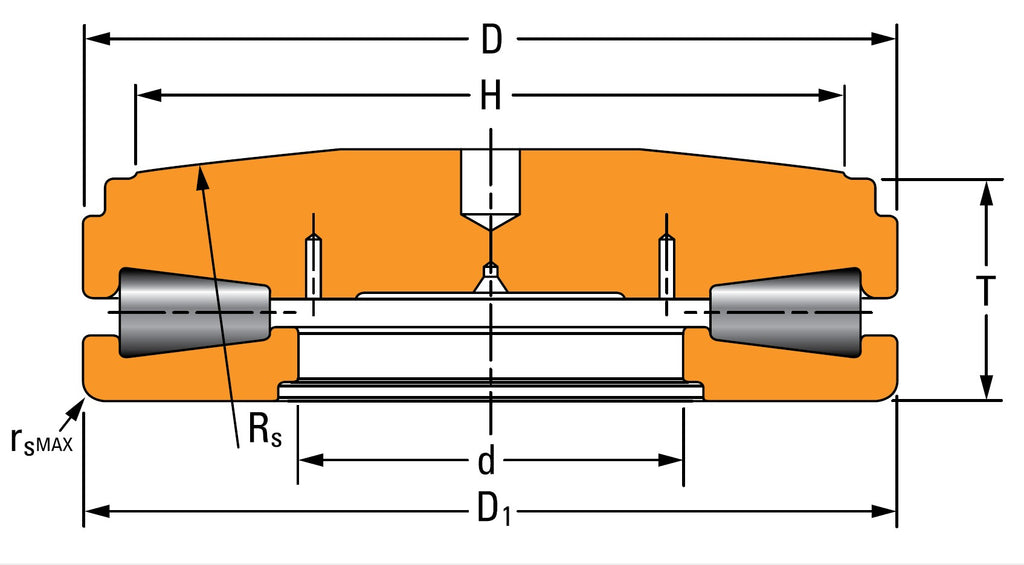

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
The Timken TTHDSX-2 is a highly specialized thrust tapered roller bearing designed for extreme screw-down applications in rolling mills. Its lower race features both an axial bore and a recess diameter, providing precise fitment and stability in heavy metalworking machinery.
-
Industry Specific: Precision-engineered for rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design for maximum durability under thrust.
-
Complex Lower Race: Features one lower tapered race complete with both an axial bore and a recess diameter.
-
Unique Profile: Includes one upper tapered race with a special convex profile.
** Images are for representation purposes only
