Description
Brand - RBC
Item Number - B10-L RBC
Category - Radial spherical Plain Bearing
Basic Part Number - (-10)

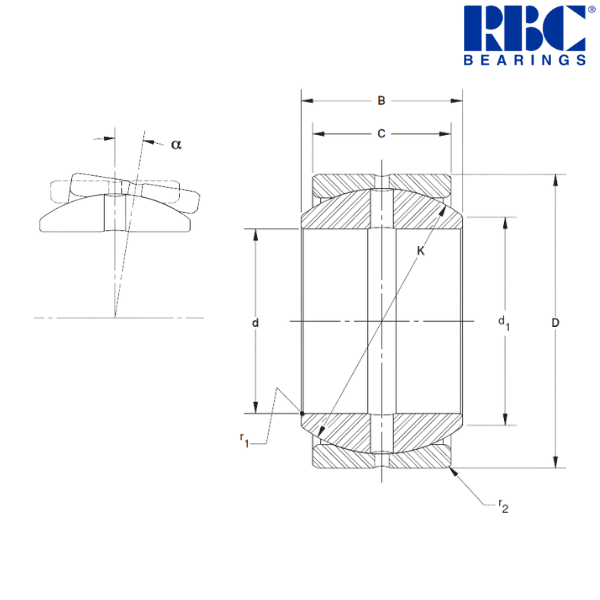

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.625 inch
Maximum Inside Diameter (d) - 0.625 inch
Minimum Inside Diameter (d) - 0.6245 inch
Nominal Outside Diameter (D) - 1.0625 inch
Maximum Outside Diameter (D) - 1.0625 inch
Minimum Outside Diameter (D) - 1.062 inch
Inner Ring Width (B) - 0.547 inch
Outer Ring Width (C) - 0.469 inch
Sphere Diameter (K) - 0.899 inch
Unmounted Diametral Clearance - 0.002/0.006 inch
Shaft Shoulder Diameter (d1) - 0.703 inch
Tilt Angle (α) - 14°
Maximum Shaft Fillet (r1) - 0.01 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 0.079 lbs
Static Radial Load Limit - 14700 lbf
Static Thrust Load Limit - 2500 lbf
Static Dynamic Load Limit - 3600 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.6244 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.6239 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.6256 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.6253 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 1.0617 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 1.0609 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.036 kg
Notes about B....L Series :
These bearings are built to handle substantial radial loads even when misalignment occurs. They can also support a moderate amount of thrust load. Featuring a non-separable design with a single split outer ring, they are offered in both open and sealed configurations, and are available in both inch and metric dimensions.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

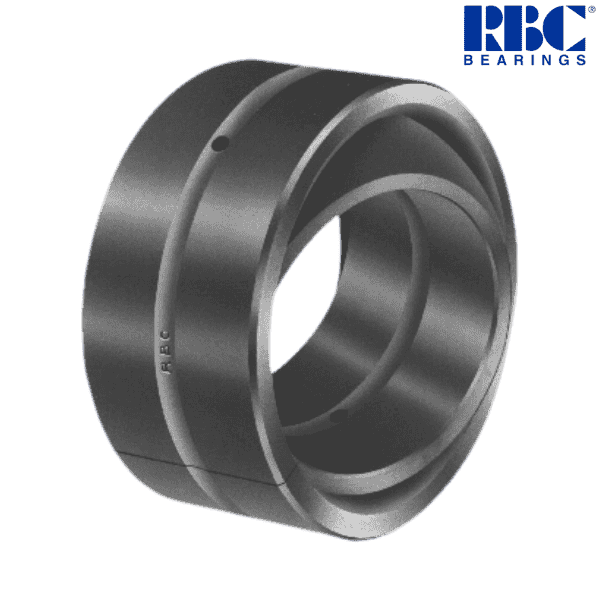

♦ ♦ Images are for representation purposes only
