Description
Brand - RBC
Item Number - B12-EL RBC

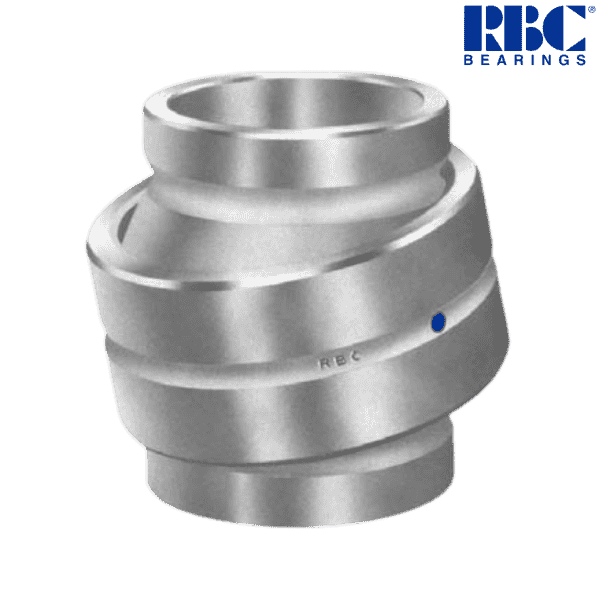

Category - Spherical Plain Bearing with Extended Inner Ring
Basic Part Number - (-12)

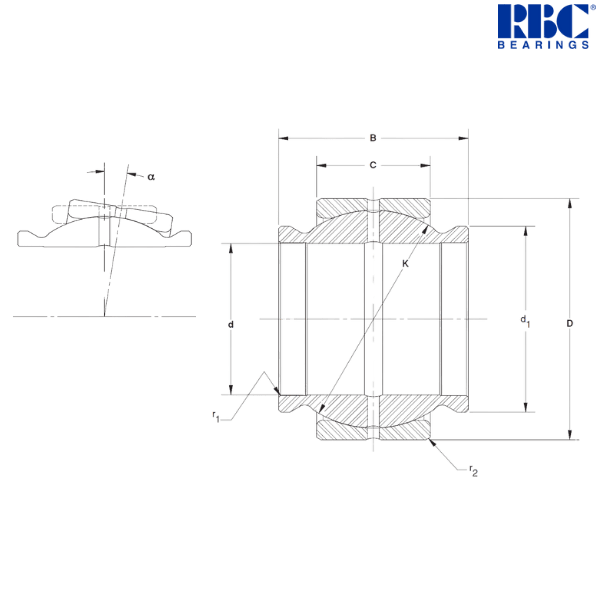

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.75 inch
Maximum Inside Diameter (d) - 0.75 inch
Minimum Inside Diameter (d) - 0.7495 inch
Nominal Outside Diameter (D) - 1.25 inch
Maximum Outside Diameter (D) - 1.25 inch
Minimum Outside Diameter (D) - 1.2495 inch
Inner Ring Width (B) - 1.125 inch
Outer Ring Width (C) - 0.562 inch
Sphere Diameter (K) - 1.08 inch
Unmounted Diametral Clearance - 0.003/0.007 inch
Shaft Shoulder Diameter (d1) - 0.92 inch
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 0.022 inch
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 0.14 lbs
Static Radial Load Limit - 21200 lbf
Static Thrust Load Limit - 3900 lbf
Static Dynamic Load Limit - 5300 lbf
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.7492 lbf
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 0.7487 lbf
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.7507 inch
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 0.7503 inch
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 1.249 inch
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 1.248 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.063 kg
Notes about B....EL Series :
The extended inner ring design removes the need for extra locational spacers. Additionally, the inner ring bore is relieved to minimize bending stress. These bearings come in both open and sealed versions, and are offered in inch or metric sizes.
Other salient points to be noted :
• Bore dimensions apply after MoS2 coating. All other dimensions are before coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.
♦ ♦ Images are for representation purposes only
