Description
Brand - NADELLA
Item Number - BK0306 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

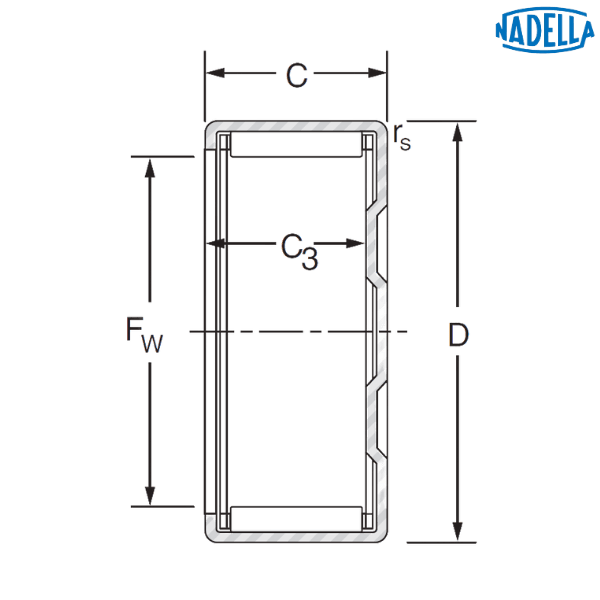

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 3 mm
Outer Dimeter (D) - 6.5 mm
Width (C) - 6 mm
Diameter of the Inner Raceway (Fw) - 3 mm
Minimum Width (C3) - 5.2 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Dynamic Load Rating (C) - 1.2 kN
Static Load Rating (C0) - 0.78 kN
Speed Limit with Grease - 30000 rpm
Speed Limit with Oil - 46000 rpm
Weight - 0.001 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK0306 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 3 mm
Outer Dimeter (D) - 6.5 mm
Width (C) - 6 mm
Diameter of the Inner Raceway (Fw) - 3 mm
Minimum Width (C3) - 5.2 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Dynamic Load Rating (C) - 1.2 kN
Static Load Rating (C0) - 0.78 kN
Speed Limit with Grease - 30000 rpm
Speed Limit with Oil - 46000 rpm
Weight - 0.001 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
