Description
Brand - NADELLA

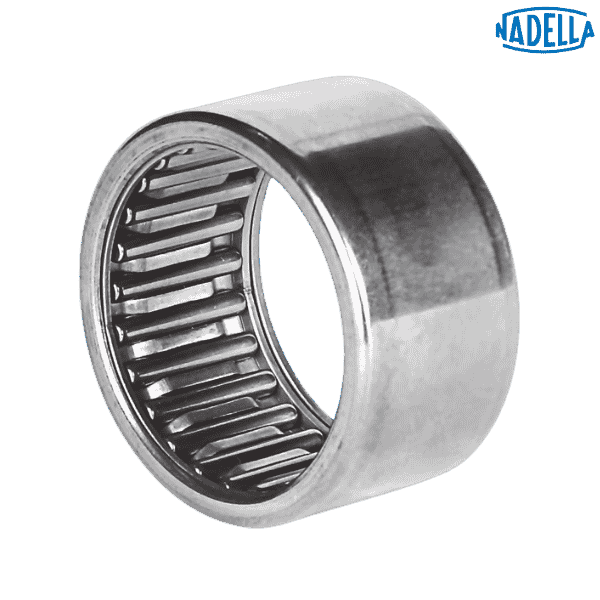

Item Number - BK0408 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

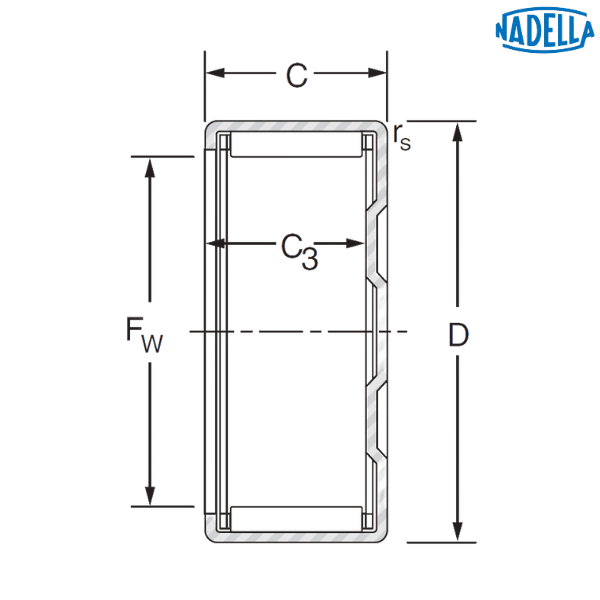

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 4 mm
Outer Dimeter (D) - 8 mm
Width (C) - 8 mm
Diameter of the Inner Raceway (Fw) - 4 mm
Minimum Width (C3) - 6.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 1.83 kN
Static Load Rating (C0) - 1.32 kN
Speed Limit with Grease - 25000 rpm
Speed Limit with Oil - 39000 rpm
Weight - 0.002 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK0408 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 4 mm
Outer Dimeter (D) - 8 mm
Width (C) - 8 mm
Diameter of the Inner Raceway (Fw) - 4 mm
Minimum Width (C3) - 6.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 1.83 kN
Static Load Rating (C0) - 1.32 kN
Speed Limit with Grease - 25000 rpm
Speed Limit with Oil - 39000 rpm
Weight - 0.002 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
