Description
Brand - NADELLA
Item Number - BK0608 NADELLA

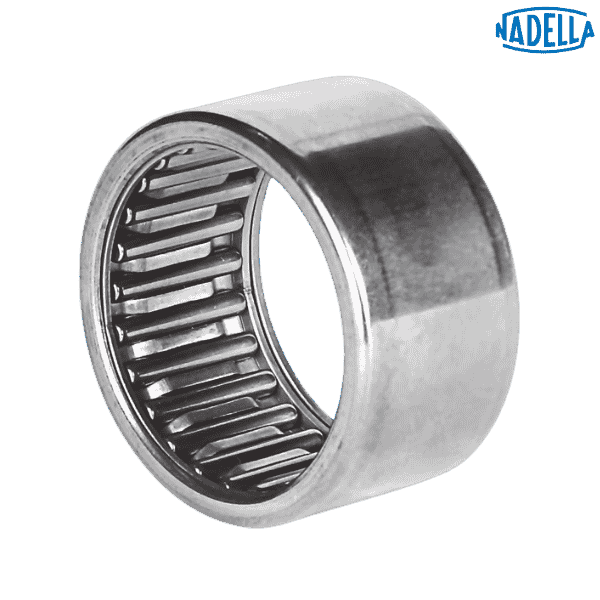

Category - Caged Needle Bushes (Closed End Series BK)

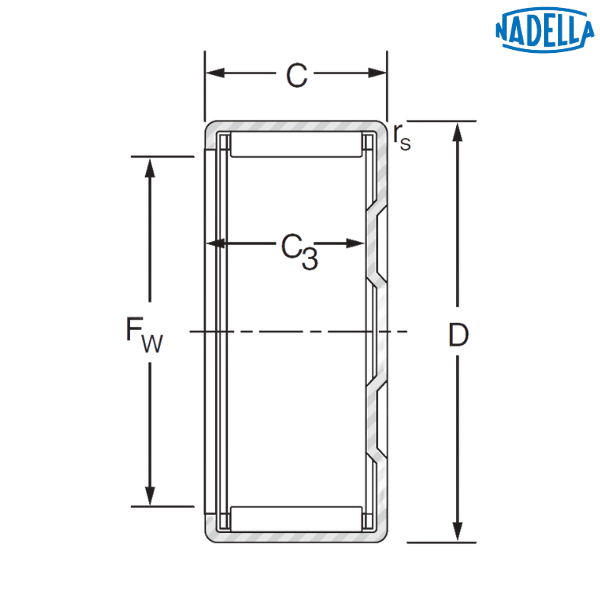

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Outer Dimeter (D) - 10 mm
Width (C) - 8 mm
Diameter of the Inner Raceway (Fw) - 6 mm
Minimum Width (C3) - 6.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 2.34 kN
Static Load Rating (C0) - 1.95 kN
Speed Limit with Grease - 22000 rpm
Speed Limit with Oil - 33000 rpm
Weight - 0.002 kg
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
