Description
Brand - NADELLA
Item Number - BK0810 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

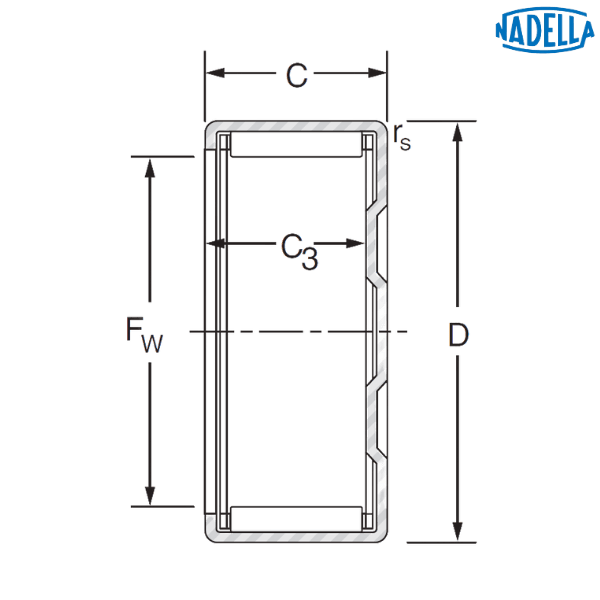

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Outer Dimeter (D) - 12 mm
Width (C) - 10 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Minimum Width (C3) - 8.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 3.93 kN
Static Load Rating (C0) - 4.14 kN
Speed Limit with Grease - 20000 rpm
Speed Limit with Oil - 31000 rpm
Weight - 0.004 kg
Compatible Internal Ring - JR5x8x12
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
