Description
Brand - NADELLA
Item Number - BK0910 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

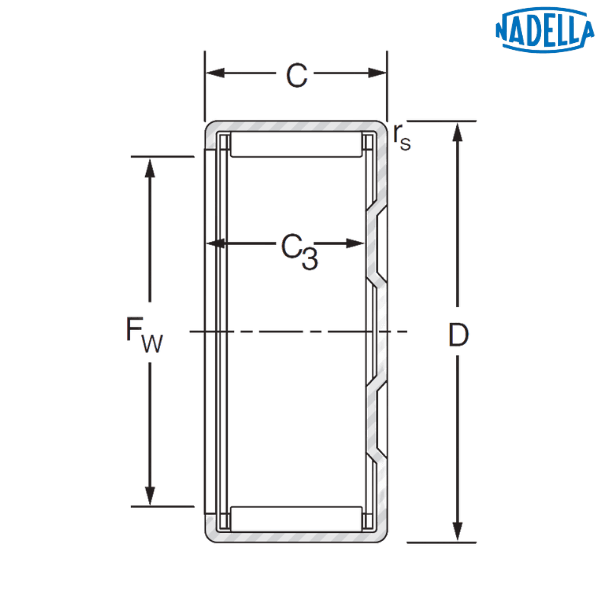

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 9 mm
Outer Dimeter (D) - 13 mm
Width (C) - 10 mm
Diameter of the Inner Raceway (Fw) - 9 mm
Minimum Width (C3) - 8.4 mm
Minimum Chamfer Dimension (rs) - 0.4 mm
Dynamic Load Rating (C) - 4.57 kN
Static Load Rating (C0) - 5.07 kN
Speed Limit with Grease - 19000 rpm
Speed Limit with Oil - 30000 rpm
Weight - 0.004 kg
Compatible Internal Ring - JR6x9x12
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
