Description
Brand - NADELLA
Item Number - BK2520 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

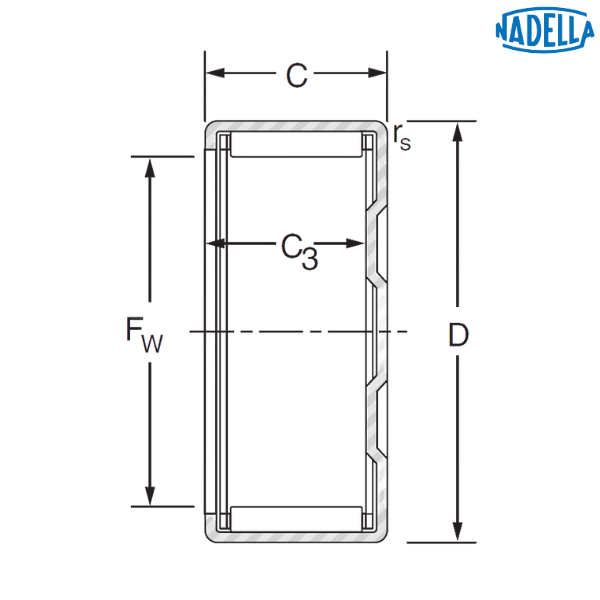

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Outer Dimeter (D) - 32 mm
Width (C) - 20 mm
Diameter of the Inner Raceway (Fw) - 25 mm
Minimum Width (C3) - 17.3 mm
Dynamic Load Rating (C) - 20.6 kN
Static Load Rating (C0) - 33.4 kN
Speed Limit with Grease - 8500 rpm
Speed Limit with Oil - 13000 rpm
Weight - 0.043 kg
Compatible Internal Ring - JR20x25x20.5
Description of Prefix:
BK - Caged Needle Bush, Closed End

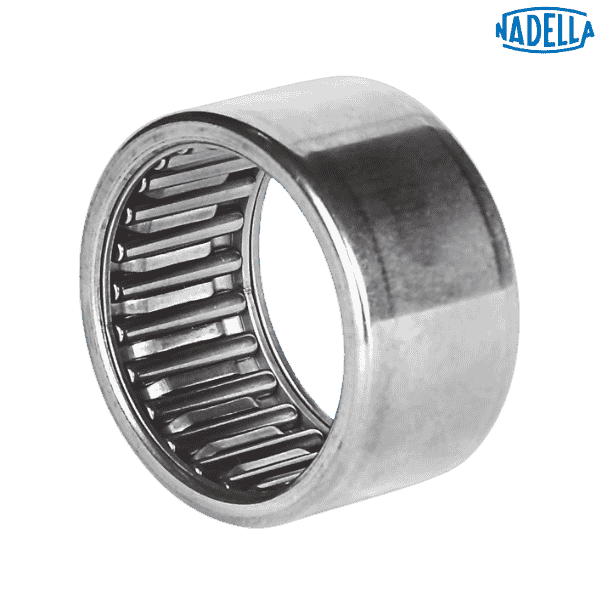

♦♦ Images are for representation purposes only
Item Number - BK2520 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Outer Dimeter (D) - 32 mm
Width (C) - 20 mm
Diameter of the Inner Raceway (Fw) - 25 mm
Minimum Width (C3) - 17.3 mm
Dynamic Load Rating (C) - 20.6 kN
Static Load Rating (C0) - 33.4 kN
Speed Limit with Grease - 8500 rpm
Speed Limit with Oil - 13000 rpm
Weight - 0.043 kg
Compatible Internal Ring - JR20x25x20.5
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
