Description
Brand - NADELLA
Item Number - BK3038 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)

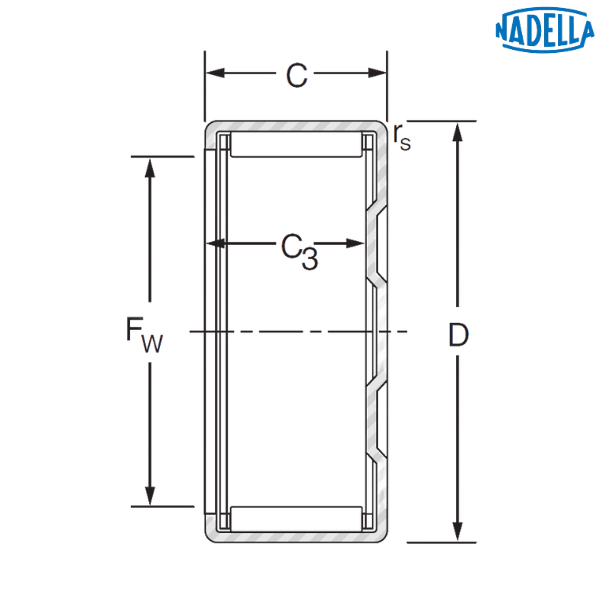

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Outer Dimeter (D) - 37 mm
Width (C) - 38 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Minimum Width (C3) - 35.3 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 38.4 kN
Static Load Rating (C0) - 79.2 kN
Speed Limit with Grease - 7000 rpm
Speed Limit with Oil - 11000 rpm
Weight - 0.093 kg
Compatible Internal Ring - JR25x30x38.5
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
Item Number - BK3038 NADELLA
Category - Caged Needle Bushes (Closed End Series BK)
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Outer Dimeter (D) - 37 mm
Width (C) - 38 mm
Diameter of the Inner Raceway (Fw) - 30 mm
Minimum Width (C3) - 35.3 mm
Minimum Chamfer Dimension (rs) - 1 mm
Dynamic Load Rating (C) - 38.4 kN
Static Load Rating (C0) - 79.2 kN
Speed Limit with Grease - 7000 rpm
Speed Limit with Oil - 11000 rpm
Weight - 0.093 kg
Compatible Internal Ring - JR25x30x38.5
Description of Prefix:
BK - Caged Needle Bush, Closed End
♦♦ Images are for representation purposes only
