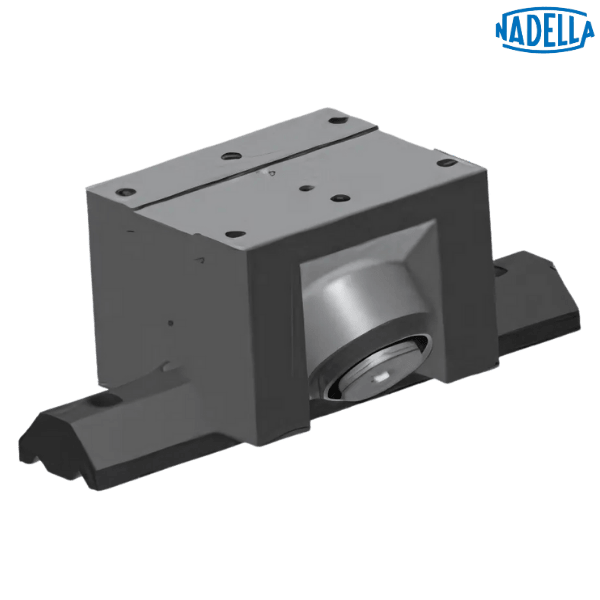

BL 275 DS NADELLA

Brand - NADELLA
Item Number - BL 275 DS NADELLA
Category - Carriage with Discharge System

Principal Dimensions & Load Ratings (Metric):

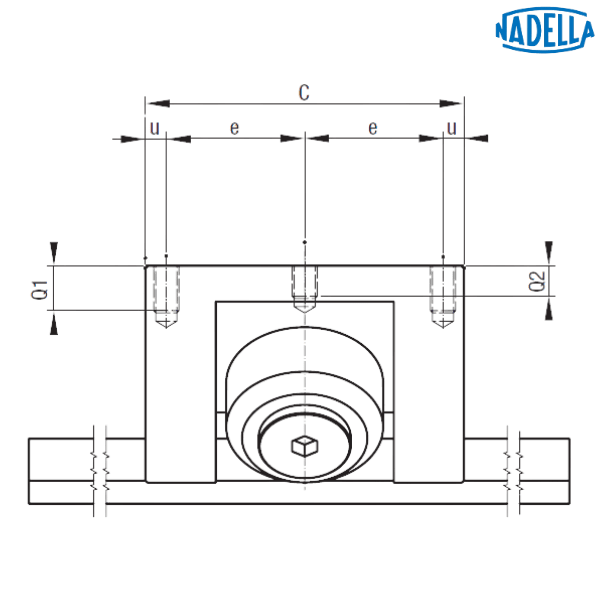

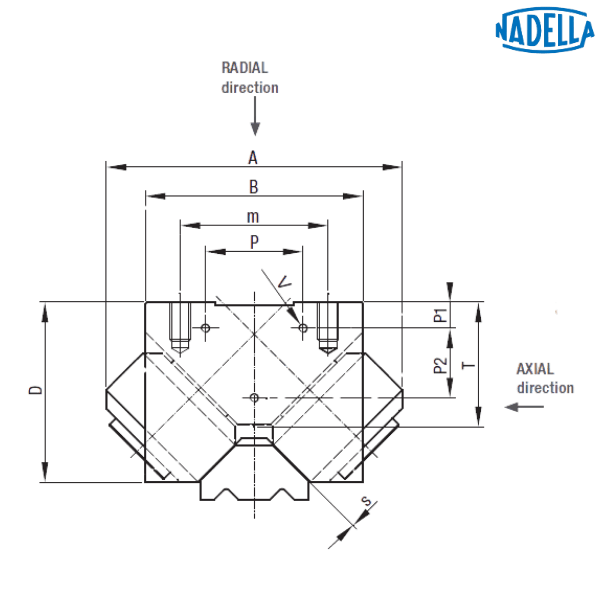

Dimension (A) - 170 mm
Dimension (B) - 125 mm
Dimension (C) - 152 mm
Dimension (P) - 56 mm
Dimension (P1) - 15 mm
Dimension (P2) - 40 mm
Dimension (V) - M5 x 8
Dimension (m) - 85 mm
Dimension (e) - 66 mm
Dimension (u) - 10 mm
Dimension (f) - M12
Dimension (Q1) - 20 mm
Dimension (Q2) - 15 mm
Dimension (T) - 71.5 mm
Weight - 13 kg
Dynamic Load (Cw*) - 99000 N
Radial Limit Load (Fr**) - 44200 N
Axial Limit Load (Fr***) - 22100 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 1

Description of Suffixes and Prefixes:
BL...DS - Carriage BL with discharge system block

Other salient points to be noted:
* Cw basic load for 100 km, load perpendicular to the roller side fixing surface
** Loads perpendicular to the roller side fixing surface
*** Loads parallel to the roller side fixing surface

• On request, the guide rollers can be supplied in stainless steel (suffix NX) and with Viton seals for operating temperatures up to 120°C (suffix V, not available for dimension BL ... 115). Internal rolling elements in standard bearing steel
• Pressure angle α (for loads checking calculation): 45°
• Standard seals: material NBR, RS type

♦ ♦ Images are for representation purposes only
