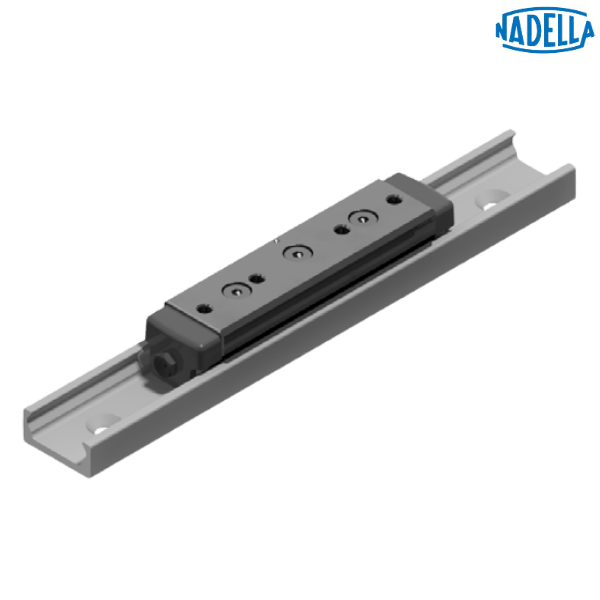

C3 RT 28 88 NADELLA

Brand - NADELLA
Item Number - C3 RT 28 88 NADELLA
Category - Steel Carriages with 3 Rollers for NT Rail

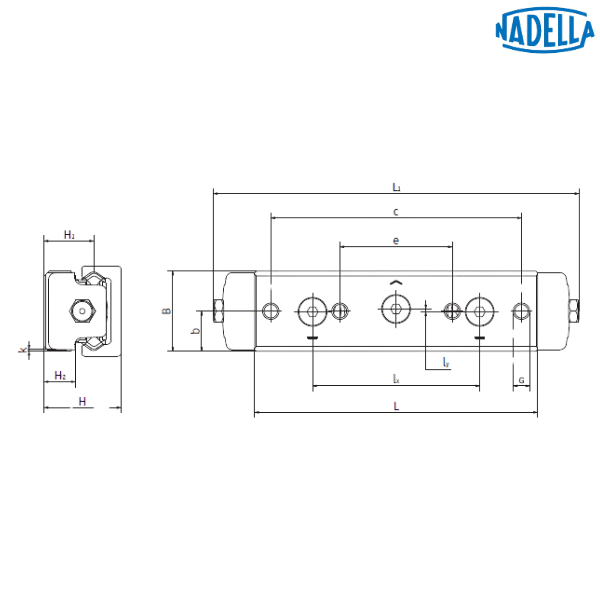

Principal Dimensions & Load Ratings (Metric):
Dimension (H) - 23.9 mm
Dimension (H1) - 15.4 mm
Dimension (H2) - 9.7 mm
Dimension (k) - 0.45 mm
Dimension (B) - 24.9 mm
Dimension (b) - 12.45 mm
Dimension (L) - 88 mm
Dimension (L1) - 113 mm
Dimension (lx) - 52 mm
Dimension (ly) - 0.9 mm
Dimension (c) - 78
Dimension (e) - 35 mm
Dimension (G) - M5
Weight - 0.15 kg
Guide - NT 28

Description of Prefix:
C3 RT - Carriages with body in brunished steel 3 RT and RTL guide rollers for NT guide of the auto-aligning C-Line

Other salient points to be noted:

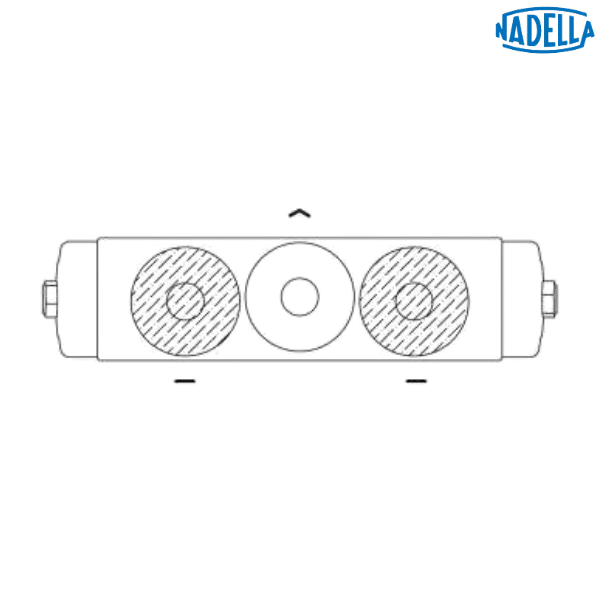

• The markings show the contact points with the running surface of the rails
• Dimension also apply to C3 RTL and C3 RTY

♦ ♦ Images are for representation purposes only
