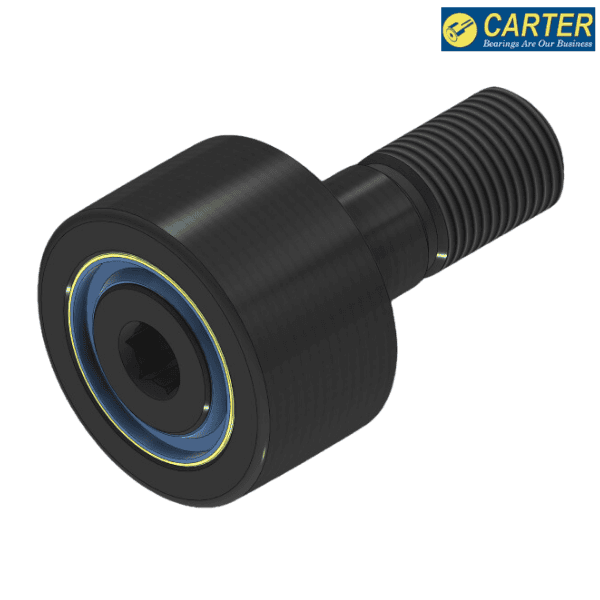

CCDR-250-S CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - CCDR-250-S CARTER
Category - Crowned Heavy Cylindrical Roller Bearings, Cam Follower

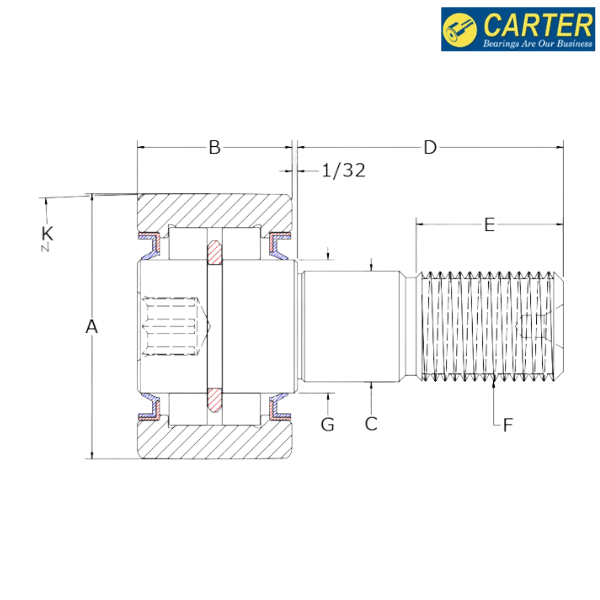

Imperial :
Roller Outer Diameter (A) inch - 2.5
Roller Width (B) inch - 1.5
Crown Radius (K) inch - 30
Stud Diameter (C) inch - 1
Stud Length (D) inch - 2.25
M.E.T. (E) inch - 1.125
Thread Class 2A (F) inch - 1-14
Thread Diameter (inch) - 1
Number of Threads per inch - 14
Shoulder Diameter (G) inch - 1-0.25
Hex Size (X) inch - 0.5
Mounting Bore (inch) - 1
Torque (in-lb) - 1300
Limiting Speed (rpm) - 3700
Basic Dynamic Rating (lbf) - 16800
Maximum Static Capacity (lbf) - 22800
Approx Weight (lbs) - 2.48

Metric :
Roller Outer Diameter (A) mm - 63.5
Roller Width (B) mm - 38.1
Crown Radius (K) mm - 762
Stud Diameter (C) mm - 25.4
Stud Length (D) mm - 57.15
M.E.T. (E) mm - 28.575
Hex Size (X) mm - 12.7
Mounting Bore (mm) - 25.4
Basic Dynamic Rating (N) - 74730.096
Maximum Static Capacity (N) - 101419.416
Approx Weight (kg) - 1.12490816

**Images are for representation purposes only
